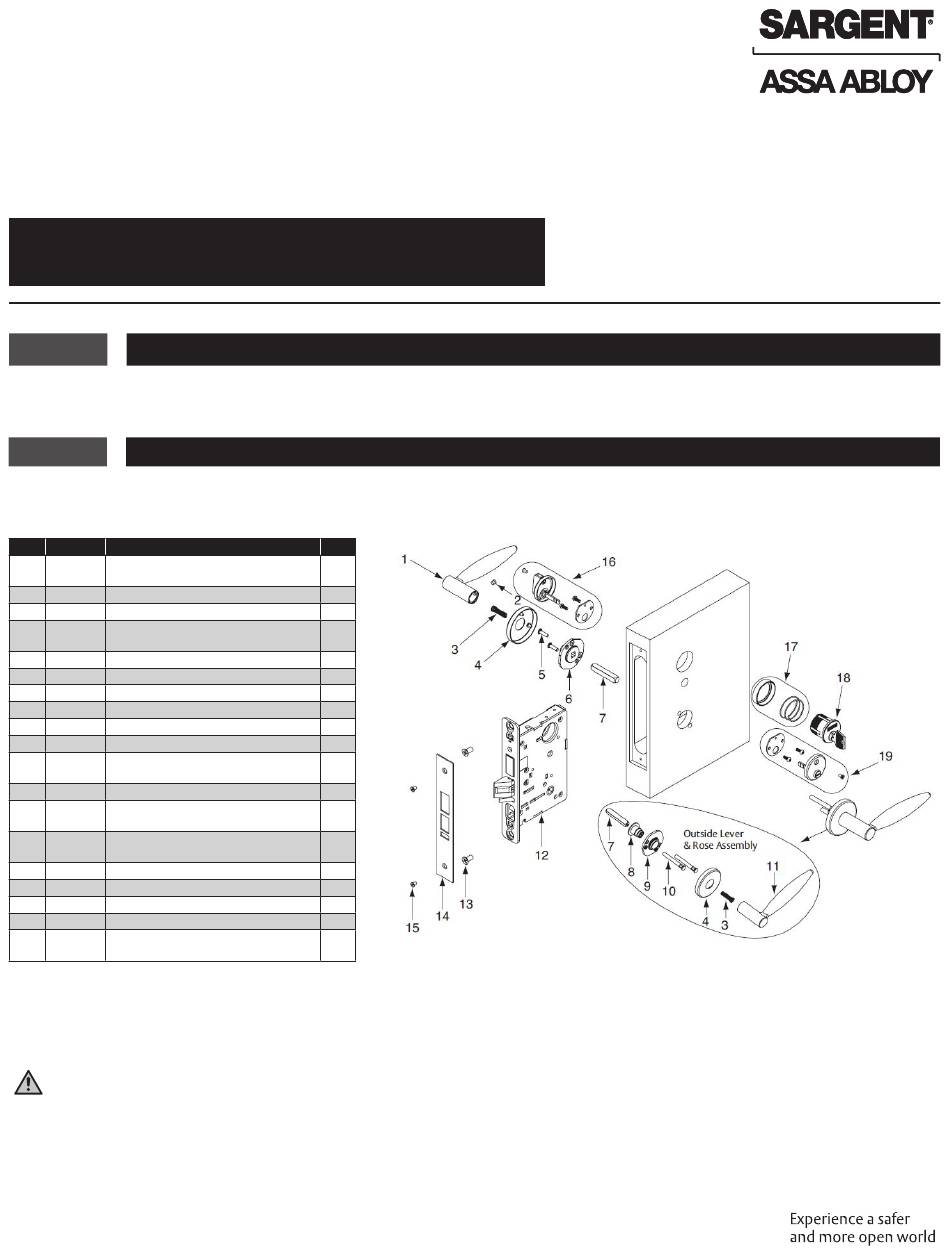

Installation Instructions

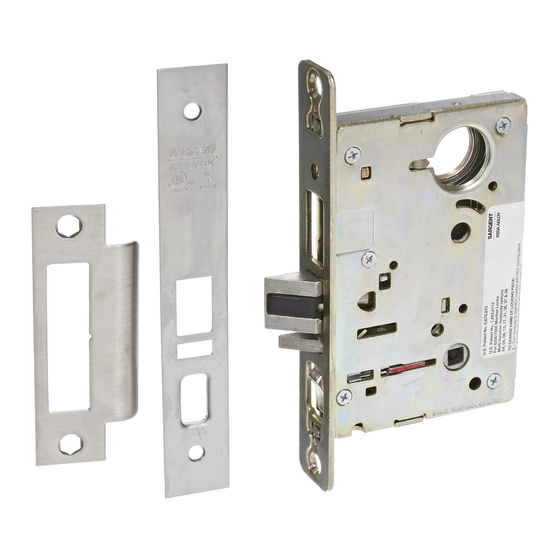

7900 & 8200 Series Mortise Locks
with Studio Collection Levers
1
Tools Required
• #2 and #3 Phillips screwdriver
2
Package Contents
All trim components will vary by function number. For one sided trim, see reference document A7028.
Fig.
Part #
Description
Inside lever (designs vary- some
1
—
handed)
2
82-1623
Lever set screw 1/4-28 (wide flat head)
3
82-0347
Lever spring
696 x
4
Rose (designs vary)
Design
5
01-1495
Machine screw #8-32 x 5/8"
6
Varies
Inside adapter & plate assembly
7
82-1626
Inside Studio spindle
8
82-0691
Bushing
9
Varies
Outside rose mounting plate
10
81-0723
Through-bolt posts
Outside lever (designs vary-some
11
—
handed)
12
—
Lockbody (various functions)
01-1019
Machine screw #12 - 24 x 1/2" and
13
01-2299
Wood screw #12 x 1-1/4"
Varies x
14
Outside front plate
Function
15
01-1028
Front screw #8 - 32 x 1/4"
16
130KB
Thumbturn assembly (Varies x Design)
17
1KB-1
Cylinder collar/rosette (size varies)
18
—
Cylinder (various key systems)
Emergency release assembly
19
—
Varies x Design 184 x Design
WARNING
This product can expose you to lead
which is known to the state of California
to cause cancer and birth defects or other
reproductive harm. For more information go
to www.P65warnings.ca.gov.
1-800-727-5477 • www.sargentlock.com
Copyright © 2007-2010, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part
without the express written permission of SARGENT Manufacturing Company is prohibited.
• Flat blade screwdriver
Qty
1
1
2
2
2
1
2
1
1
2
1
1
2
2
1
2
—
1
—
Screw Pack with screws for lockbody, fronts and strike screws (Part # 77-4236)
Trim both side pack includes inside adapter plate assembly, spindle, through-bolt screws and set screw
• Rose Trim - #79-2161
• Escutcheon Trim - #82-4600
Trim one side pack includes inside adapter plate assembly, spindle, through-bolt screws, set screw and trim
one side plate.
• Rose Trim - #79-2162
• Escutcheon Trim #82-4599
• T20 Torx wrench
• 1/8" Allen wrench
A7896F 9/22
