Icom IC-2SA Instruction Manual page 10

a
3 CONTROL FUNCTIONS

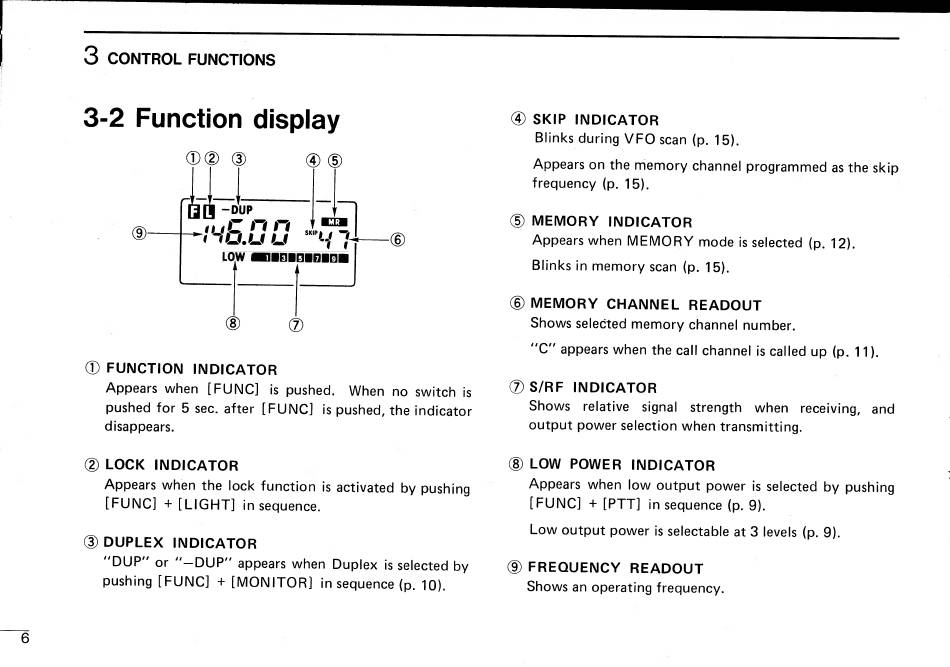

3-2 Function display
<> 5 ( SKIP
Une
he ©
LOW G@EIBDEDSDED
D
@) FUNCTION INDICATOR
Appears when
[FUNC]
is pushed.
When
no switch is
pushed for 5 sec. after [FUNC]
is pushed, the indicator
disappears.
(2) LOCK INDICATOR
Appears when the lock function is activated by pushing
[FUNC] + [LIGHT]
in sequence.
(3) DUPLEX INDICATOR
"DUP"
or '""—DUP" appears when Duplex is selected by
pushing [FUNC]
+ [MONITOR]
in sequence (p. 10).
4) SKIP INDICATOR
Blinks during VFO scan (p. 15).
6) MEMORY INDICATOR
Appears when MEMORY
mode is selected (p. 12).
Blinks in memory scan (p. 15).
© MEMORY CHANNEL READOUT
Shows selected memory channel number.
7) S/RF INDICATOR
Shows relative
signal strength
when receiving,
and
output power selection when transmitting.
LOW POWER INDICATOR
Appears when low output power is selected by pushing
[FUNC] + [PTT] in sequence (p. 9).
(9) FREQUENCY READOUT
Shows an operating frequency.
