BioLAB BCBS-103 Operation Manual

Biological safety cabinet class i
Hide thumbs

Advertisement

Quick Links

Download this manual
BCBS-103

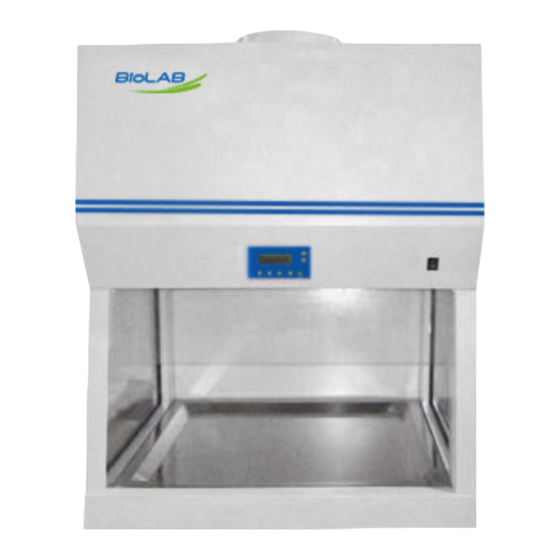

Biological Safety Cabinet Class I
Thank you very much for Choosing Biolab products. Please read the "Operating Instructions" and "Warranty"
before operating this unit to assure proper operation.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BCBS-103 and is the answer not in the manual?

Questions and answers

Related Manuals for BioLAB BCBS-103

Summary of Contents for BioLAB BCBS-103

  • Page 1 BCBS-103 Biological Safety Cabinet Class I Thank you very much for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
  • Page 2 Biological Safety Cabinet Class I BCBS-103 Index 1. Unplugging Installation and Debugging..................03 2. Using Instruction............................07 3. Common Faults & Solution.......................16 4. Warranty..............................21 www.biolabscientific.com...

  • Page 3: Unplugging Installation And Debugging

    Biological Safety Cabinet Class I BCBS-103 Unpacking Installation and Debugging Please firstly check if packing box is in good condition. If the packing box is damaged, please take photos. 1.1 Unpacking Choose the proper unpacking method according to the actual situation.
  • Page 4 Biological Safety Cabinet Class I BCBS-103 Method 2 Necessary tools for unpacking: Electric drill with hexagon dead M8 Picture 2 www.biolabscientific.com...
  • Page 5 Biological Safety Cabinet Class I BCBS-103 Rapid unpacking diagram (Picture 3). Disassemble the screws shown in the below Picture, then move the wooden pieces to right and left. Picture 3 1.2 Accessories checking Items Quantity Location BCBS-103 Main Body 1 unit...
  • Page 6 Biological Safety Cabinet Class I BCBS-103 1.3 Installation conditions and using environment The machine should be placed in a area of air flow protection. Front window operation opening couldn’t be opposite the door and window. Machine should be located far away from ventilating system and air-conditioning vents, in case of Biological safety cabinet affected by airflow which come from ventilating system, air-condition, door, window and people move.

  • Page 7: Using Instruction

    Biological Safety Cabinet Class I BCBS-103 1.5 Check after installation finished Please check if the voltage displayed in nameplate is coincidence with the actual voltage. When the machine power on, push ON button of the display and check the following items:...
  • Page 8 Biological Safety Cabinet Class I BCBS-103 2.1.2 Working theory/Air flow pattern and protected area Picture 4 2.1.3 Protected Objects Biological safety cabinets Class I are designed to protect the operator, the laboratory environment and work materials from exposure to infectious aerosols and splashes that may be generated when manipulating materials containing infectious agents.
  • Page 9 Biological Safety Cabinet Class I BCBS-103 2.1.4 Technical Parameters Model BCBS-103 Parameters Power Supply AC 220V±10% 110V±10% Frequency 50 Hz 60Hz External 900*713*1250 mm Size(W*D*H) Working Zone 800*635*600 mm Size(W*D*H) Consumption ≤400 W Average airflow >0.3m/s LED fluorescent T5 8W...
  • Page 10 Biological Safety Cabinet Class I BCBS-103 2.2 Product Structure 2.2.1 Structural Composition Picture 5 1. Ship type switch 2. Countertop 3. Side window 4. UV lamp 5. Chimney fan Ground terminal 7. Power socket 8. Front screen 9. Control panel 10.
  • Page 11 Biological Safety Cabinet Class I BCBS-103 3) UV light: UV lamp was used to sterilize. They located in interior of work area, and fixed at the top of operating area, where could make sure all space of work surface sufficiently exposure to the UV light.
  • Page 12 Biological Safety Cabinet Class I BCBS-103 when glass door closed. (3). To Control Fluorescent Lamp: For each time pressing, LED lamp’s status and indicator light displayed on LCD will be changed (Turning on or off). (4). To Control UV Lamp: For each time pressing, UV lamp’s status and indicator light displayed on LCD will be changed (Turning on or off).
  • Page 13 1) Before AC power connecting, make sure input voltage is correct and stable. The rated load of main power socket should be higher than cabinet consumption. BCBS-103 adopt grounded plug, which only could be used with grounded socket. This is a kind of safety device. If the plug cannot be inserted into the socket, please ask electrician to install grounded socket.
  • Page 14 Biological Safety Cabinet Class I BCBS-103 (1) For safety of eyes and skin, people should leave room during the UV sterilization, avoiding the damage from exposing to UV light. (2)UV lamp intensity should be tested regularly based on manufacture’s specification. Working time of UV lamp reaches to 600 hours regularly.
  • Page 15 When doing maintenance, please pay attention to cut off the power. 2.4.5 Storage conditions BCBS-103 should be stored in a relative humidity no more than 75%, the temperature is below 40 , in the warehouse with good ventilation performance, no acid, no alkali and no other corrosive gases, storage period shall not exceed one year, safety cabinet for more than a year needs to unpacked and checked.

  • Page 16: Common Faults & Solution

    Biological Safety Cabinet Class I BCBS-103 2.6 Wiring Diagram Common Faults & Soution 3.1 Common Faults Please confirm whether the power is connected or not, whether the power cord is obvious damaged or not, whether the fuse is good or not, and whether the power locks are in the open state or not before the fault diagnosis.
  • Page 17 Biological Safety Cabinet Class I BCBS-103 Tube and lamp holder is connected Lamp Holder securely. UV Lamp Change it Ballast Change it UV lamp doesn’t Circuit Check circuit work Check the front window, fluorescent lamp Chain and the blower is open or not.
  • Page 18 3.2 Fuse Replacement Fuse of BCBS-103 is F5A φ5×20 mm, which is determined according to label. Fuse is located in the power plug as Picture 8. show. When replace them, turn off the power and disconnect plug, use a flat head screwdriver to draw out fuse holder from power plug, remove the fuse out and replace a new fuse, and then pressing fuse holder back.
  • Page 19 Biological Safety Cabinet Class I BCBS-103 Note: Use flat head screwdriver to draw out fuse holder from power plug, then fuse could be took out directly. Easy to change and check. 3.3 LED Lamp Replacement When replacing lights, please up the front window to top position, and disconnect power. Then removing the LED lamp unibody holder slantly, pulling the LED lamp holder plug off from right side and replacing the new holder into the slot .
  • Page 20 Biological Safety Cabinet Class I BCBS-103 3.4 UV Lamp Replacement Working life of UV lamp are 600 hours, we recommend to test the UV intensity regularly for better disinfection effect. UV intensity test card could be used to confirm if it’s necessary to change the UV lamp.

  • Page 21: Warranty

    Biological Safety Cabinet Class I BCBS-103 3.5.2 Ground label (Picture 11): Picture 11 Warranty 4.1.1. Warranty is 12 months from EX-factory date (excluding lamps, fuse). 4.1.2. We will take no responsibility for risks caused by improper operation and man-made damages during warranty period.
  • Page 22 BIOLAB SCIENTIFIC LIMITED 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8, Canada +1 707 533 1445 info@biolabscientific.com www.biolabscientific.com...
