Configurations

KH7P I

The coupled asymmetric horn to each KH7P I 12" woofer is able
to produce a different sound dispersion pattern with respect to
its own axis.
The sound dispersion is wide along the x-axis, named FLOOD,
and narrow along the y-axis, named SPOT.
A
y
90°
x
A. in this position the sound dispersion is narrow in respect to
the x-axis and wide in respect to the y-axis
B. in this position the sound dispersion is wide in respect to
the x-axis and narow in respect to the y-axis
Manually rotate the horn by 90° using the handles at the
The combination of narrow vertical dispersion and wider
horizontal dispersion allows for optimal overall sound
distribution and throw, especially in array configurations.
B
y
90°
x
front.
Firenze-systems

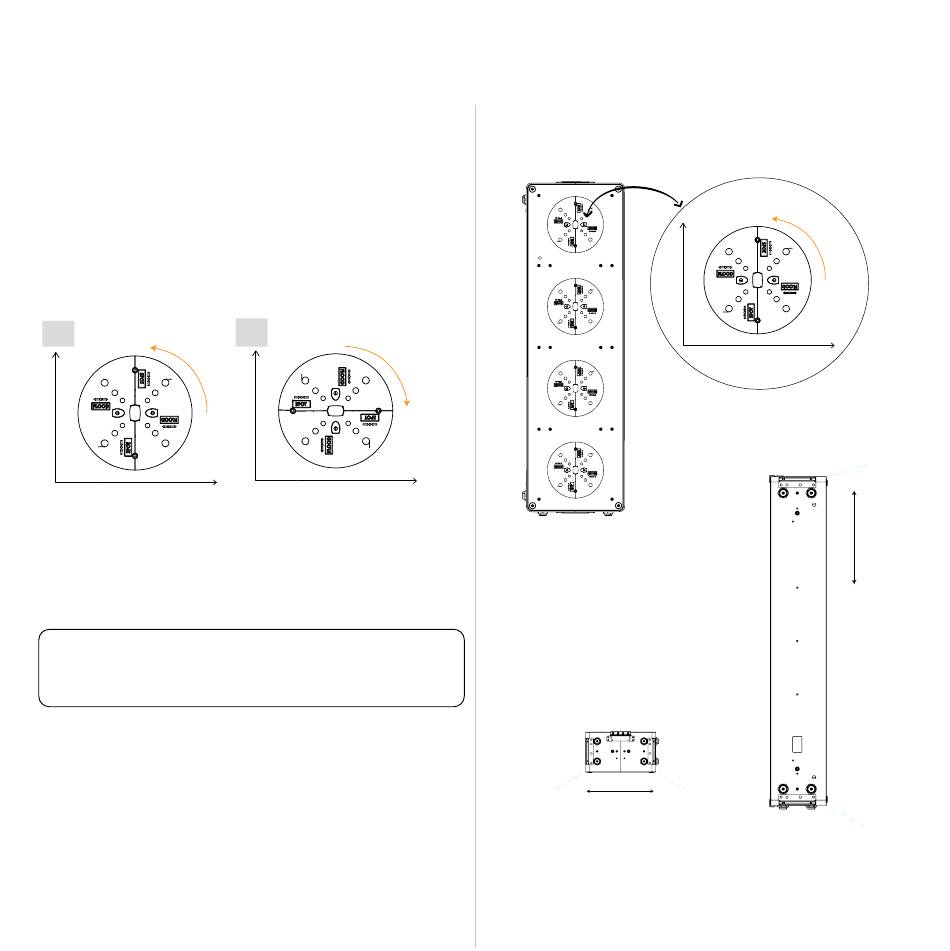

Vertical KH7P I with vertically oriented horns

y
90°
x
100° horizontal
dispersion
User Guide
y 90°
y
90°
x
x
30° vertical
dispersion
