K-framework3

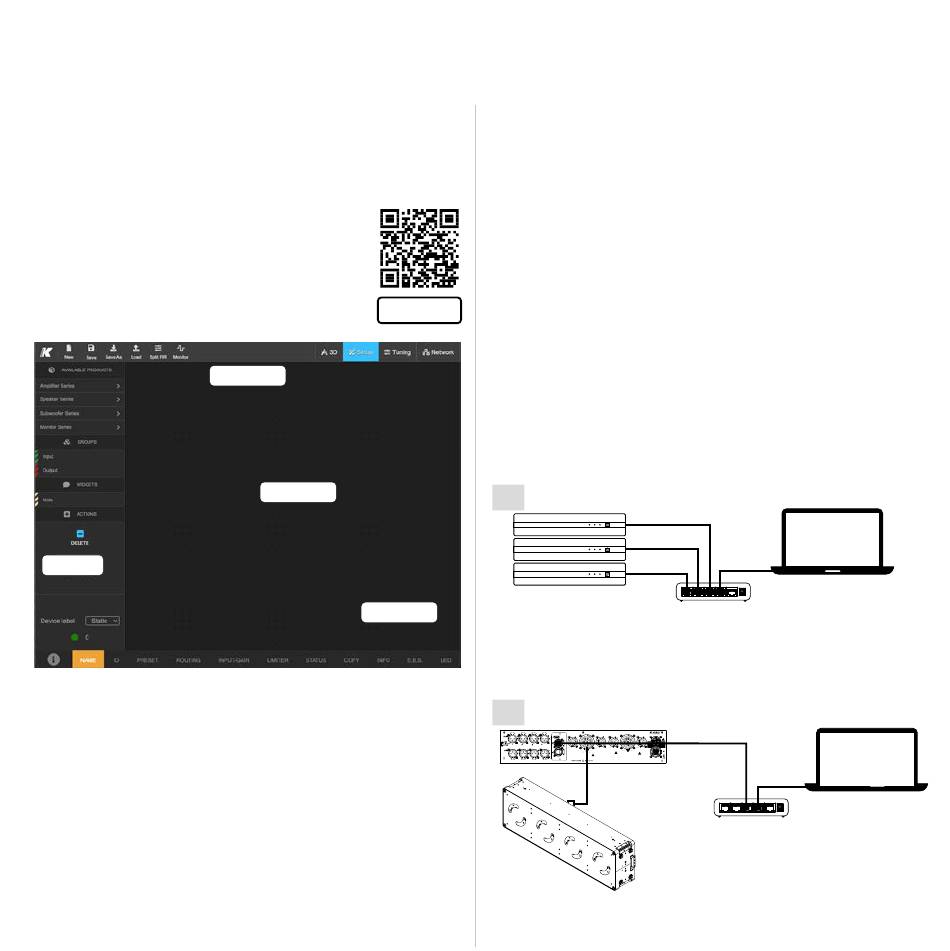

The Firenze-systems (passive) can be remotely controlled with
the dedicated K-framework3 software available for PC and MAC
on K-array website.
The K-framework3 is the
control software dedicated to professionals
and operators looking for a powerful tool for
designing and managing a large number of units
in demanding applications.
Sidebar
The K-framework3 operates in three modes:
• 3D – Design a loudspeaker system for your venue in
a fully 3D environment and make free field acoustic
simulations; In this mode, it is also possible to load
FIR filters for the EBS function and view the actual
simulation of the sound beam orientation based on the
target listening area (target frequency response.)
• SETUP – import from the 3D design the active
components into the workspace or build from scratch
a PA system composed of active loudspeakers and
amplifiers; use the input and output groups to allow full
control of the system;
managing and
WINDOWS and OSX software
K-framework3
Menu bar
Workspace
Toolbar
Firenze-systems
• TUNING – Manage and control the loudspeaker system in
real time: optimize the performance of the loudspeaker
system during the tuning session and control its
behavior in live events.
The K-framework3 can work either off-line with virtual devices or
on-line with real active loudspeakers and amplifiers connected
over the same Ethernet network.
The K-framework3 allows you to start designing the PA system
off-line and sync the virtual devices to the real ones on site,
when the devices are available. Alternatively you can import
from scratch in the workspace the real passive loudspeakers
connected to the amplifiers available on the network. In both
cases, in order to discover and sync the active devices, both
the PC or Mac running the K-framework3 and the real units shall
be properly connected to the same Local Area Network – LAN –
with star topology in the same subnet.
A
K
K
K
B
( 4 ) 6 ( 2+ 2- ) 8 ( 2+ 2- )
2 ( 2+ 2- ) 2+ 2-
( 1+ 1- 1 ) ( )
1+ 1- 3 ( ) 1+ 1- 5 ( 1+ 1- ) 7
( ) 1 4 ( G H ) ( A B ) ( )
A B 5 8 G H
( C D ) 2 3 ( E F ) C D ( ) 6 7 ( E F )
OUTPUTS CAUTION: To
reduce the risk EXPOSE TO DO NOT
OUTPUTS shock, the of electric MOISTURE RAIN OR
grounding of the
center pin of the
AC input must
be maintained.
5 6 7 8
ATTENTION: Pour éviter les risques de choc
de la fiche secteur doit être maintenue. électrique, la mise à la terre du contact central
User Guide
K-framework3
PC or MAC
Router/switch
with DHCP server
K-framework3
Router/switch
with DHCP server
