8. Hook the bumper to the motor chain

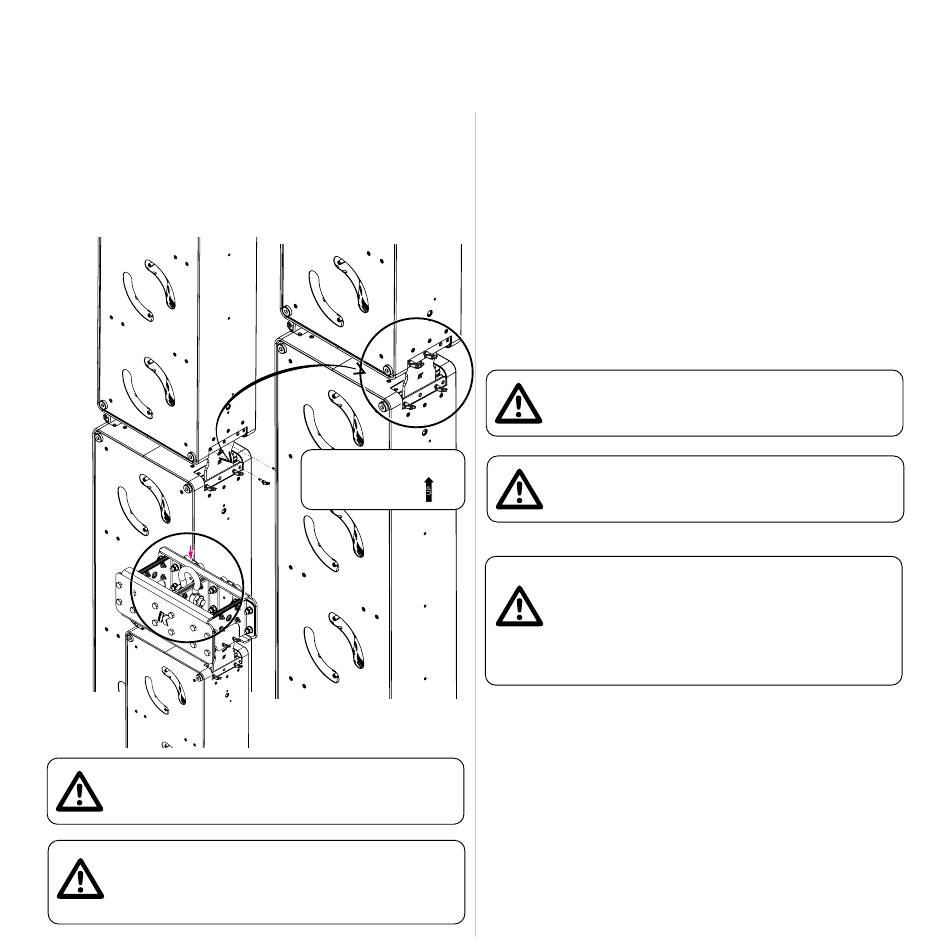

9. Lift up the first KH7P I units just enough to put a second
unit below. Connect the two units using the 2x plates and
8x the pins with the same procedure used to link the first
unit to the bumper. Repeat for the next units.
Never exceed the maximum weight limit
According to the load configuration.
Do not suspend more than 7 units in vertical position
or more than 12 units in a horizontal position
16

Suspending a cluster in horizontal position

The suspension of the Firenze-KH7P I in a horizontal cluster of
multiple units follows a procedure similar to vertical suspension.
However, it is crucial to pay attention to the following key points:
A. When attaching the brackets to the units, ensure they are
B. Make sure to use the rigging points at the ends of the
Plates Bracket vertically
oriented with
oriented horizontally.
bumper.
Always Ensure that the thread locking compound of
omega shackles is in a
locked position
Use stainless steel hooks with security fastening
(not supplied). Check that the lock is securely
fastened.
• Check that the security sphere of the
piston pin is visible at the opposite end and
cannot all out.
• The pin must only be released when the
push button has been pressed.
