K-RACK-M-208 I

Power And Signal Distributor

The K-RACK-M-208* is a complete power and signal distributor
assembly designed to drive KH2P I, KH3P I and KH5P I passive array
elements.

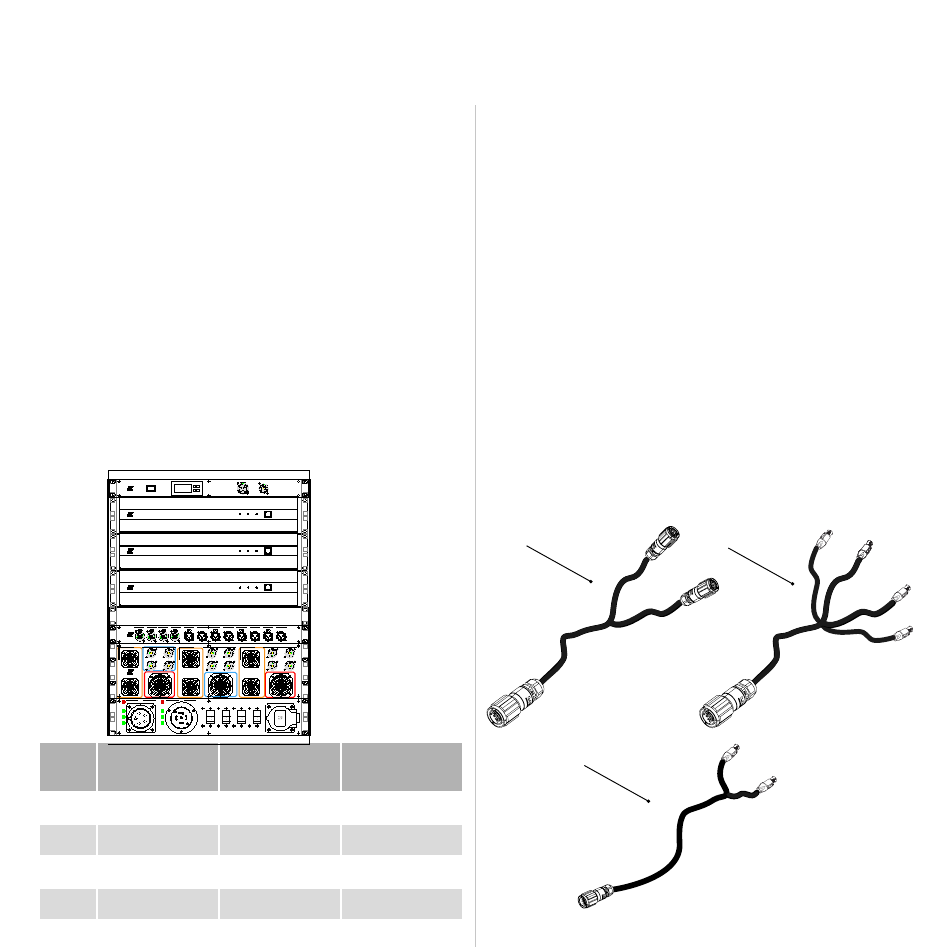

The K-RACK-M-208 is a 12 units rack with wheels containing:
• The power panel with 3-phase CEE 3P+N+T 32A 400V main
socket and switches (EU / US) 2IN / 1OUT
• 3x Kommander-KA208+ 8-ch audio power amplifiers with
DSP and IEB-Pro (expanded network connectivity),
• I/O data panel with:
• 4x Ethercon RJ45 ports,
• 4x XLR input with parallel output link;
• 12x NL4 SpeakON connectors (32 channels).
• 3x SOCApex + 6x CA-COM
LIGHT
Set
Cool
Heat
STC-1000
A B A1
IN OUT IN OUT IN LINK IN
PUSH PUSH
AMPLI 1 AMPLI 2
1 - 4 1 - 2 3 - 4 1 - 4 1 - 2
G G
B F B F
E E
C 5 - 6 7 - 8 C 5 - 6
D D
1 - 8 1 - 8
5 - 8 5 - 8
L N
1 6 1
N L N
L N L
G G
2 5 2
B F B F
E N L E N
C L N L N C L
D D
3 4 3
EU US
2 P1
INPUT
KA208+ TOP
↓
INPUT 1
A1
A2
INPUT 2
A3
INPUT 3
A4 INPUT 4
Retro
AUX
A2 A3 A4
LINK IN LINK IN LINK
PUSH PUSH
AMPLI 3
3 - 4 1 - 4 1 - 2 3 - 4
G
B F
E
7 - 8 C 5 - 6 7 - 8
D
1 - 8
5 - 8
L N L N
6 1 6
L N L
N L N
G
5 2 5
B F
L E N L
N L N C L N L N
D
4 3 4
P2 P3 AUX
KA208 +MID KA208+ BTM
INPUT 1 INPUT 1
INPUT 2 INPUT 2
INPUT 3 INPUT 3
INPUT 4 INPUT 4
Each SOCApex connector on the rack panel is capable of
transmitting multiple signals and multiple channels through
a single cable, thanks to its multi-pin configuration (19-pin
connector). This connector ensures:
• Durability: to withstand the rigors of professional use,
including frequent plugging and unplugging, as well as
harsh environmental conditions.
• Versatility: highly efficient and convenient for complex
system configurations

Available cable accessories

There are various connection methods to transmit signals and
link systems with both speakON and CA-COM connections,
available as accessories for the Mugello and Firenze series (new
passive versions).
1. K-SOCA2CACOMOUT - SOCAPEX to CA-COM
2. K- SOCA4SPKOUT - SOCAPEX to SpeakON NL4
FAN FUSE LED OUT 12V
3. K-CACOM2SPKOUT - CA-COM to SpeakON NL4
