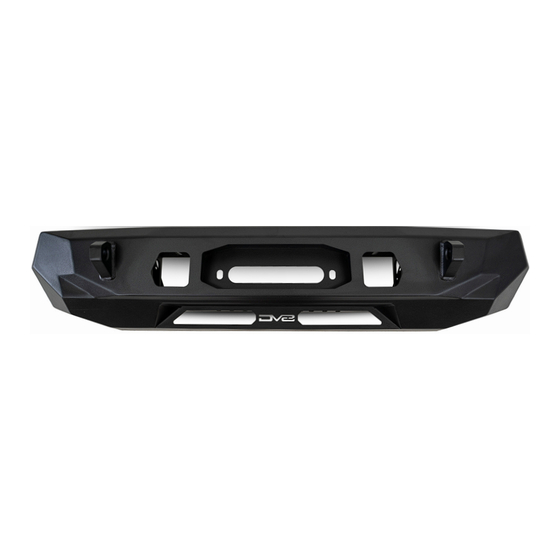

CENTRIC FRONT BUMPER
2024+ TOYOTA TACOMA
FBTT1-08
TOOLS
REQUIRED
- 21mm, 17mm, 12mm sockets
- 22mm wrenches
- Trim pry tool
- Preferred cutting tool (grinder, hand
saw, Dremel style tool)
-File/Rasp/Sand Paper
- Safety Glasses
- Gloves
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
555 E Queen Creek Rd
Bldg A
Chandler, AZ 85286
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 2 persons
Little skill level required, additional
help will be required.
Read and understand all
INSTALLATION
PRODUCT
TIME
- 4-5 Hours
Time to install this should only
take four to five hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD FBTT1-08
Summary of Contents for DV8 OFFROAD FBTT1-08
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (16) M14x35mm Bolts (8) M6 Flat Washers (16) M14 Lock Nuts (32) M14 Flat Washers...
- Page 3 INSTALLATION MANUAL STEP 2 | Disconnect the 2 electrical plugs connected to the grille. STEP 3 | Use a 10mm socket to remove the (3) bolts securing the top of the grille to the vehicle. Note: Two outside bolts near headlights shown in image.
- Page 4 INSTALLATION MANUAL STEP 4 | Use a 10mm socket to remove the (4) bolts on each side securing the inner fender to the front bumper. STEP 5 | Use a trim pry tool to remove the (2) push pins on each side securing the factory flare to the bumper (If equipped).
- Page 5 INSTALLATION MANUAL STEP 6 | Use a 10mm socket to remove the bolt securing the bumpers lower portion to the crash bar on each side. STEP 7 | Pull the front of the fender flare down to expose the Phillips head screw securing the side of the front bumper to the vehicle.
- Page 6 INSTALLATION MANUAL STEP 9 | Use a 17mm socket to remove the factory tow hooks. STEP 10 | Lift the grille/front bumper up and away from the vehicle. There are various clips holding the front on, so take your time to release all of them.
- Page 7 INSTALLATION MANUAL STEP 1 | With everything removed the vehicle should look as shown. STEP 2 | With the factory bumper removed it is now time to build out the DV8 Centric Front Bumper. If you are planning to run an LED Light bar or Pod lights install them now using the hardware provided with the lights.
- Page 8 INSTALLATION MANUAL STEP 4 | Use the provided M6x20 hardware (Allen head bolt, flat washers and Nylon lock nut) a #4 Allen tool and 10mm wrench to secure the light bar brackets in place. Use (2) flat washers per Allen head bolt, one washer for the bolt and one washer for the locking nut side.
- Page 9 INSTALLATION MANUAL STEP 6 | If running a winch, install your fair-lead at this time using the hardware provided with the fair-lead. For this install we chose a DV8 Pocket Fair- lead for synthetic rope winches. (WBPF-01) STEP 7 | If running a winch, mount the winch to the provided winch plate at this time using the hardware provided...
- Page 10 INSTALLATION MANUAL STEP 9 | Use the provided M14x 35 hardware ( M14 Hex bolt, Flat washers & Nylon lock nut) to secure the winch plate to the bumper. Use (2) flat washers per bolt, one for the Hex bolt head and one for the locking nut. Note: It is best to thread the bolts through the bumper into the winch plate as shown.
- Page 11 INSTALLATION MANUAL STEP 12 | Ensure the bumper is centered side to side. Loosely install the top mounting bolts using the provided M14x35 hardware (M14 hex bolt, flat washer & nylon lock nut) to hold the bumper in place. STEP 13 | Lay the vehicles front bumper/grille on a flat surface soft surface to ensure the painted surface is...
- Page 12 INSTALLATION MANUAL STEP 14 | Use a trim pry tool to depress all of the lower valance’s retaining clips. Remove the bumpers lower valance. STEP 15 | Using your preferred cutting tool, cut the bumpers center section following along the inner edge as shown with our yellow guide line.
- Page 13 INSTALLATION MANUAL 855-680-9595 NEED HELP?
- Page 14 INSTALLATION MANUAL STEP 16 | After initial cut, install the front bumper/grille on the vehicle loosely. Review the over all fitment of the bumper and remove material as needed to achieve your desired fit. We chose to remove an additional 1/8th- 1/4 inch of material across the top and left 1/8th inch of material along the sides.
- Page 15 INSTALLATION MANUAL STEP 17 | Use a file/sand paper to smooth out any rough/wavy edges. STEP 18 | Install the phillips head screws across the top to support the grille/shutter system. 855-680-9595 NEED HELP?
- Page 16 INSTALLATION MANUAL STEP 19 | Once you are happy with the over all fitment of the bumper/grille, secure the bumper in place using (5) M14 bolts per side. Remove the upper/ inner mounting bolt and install the upper/ inner horizontal mounting bolt as shown.
- Page 17 INSTALLATION MANUAL STEP 21 | Reconnect the (2) electrical plugs. Secure the top of the bumper/grille using the (3) 10mm bolts . 855-680-9595 NEED HELP?
- Page 18 INSTALLATION MANUAL STEP 22 | Reinstall the radiator support cover and intake fresh air duct using the factory push pins. 855-680-9595 NEED HELP?
- Page 19 INSTALLATION MANUAL STEP 23 | Reinstall the (2) factory 10mm bolts that secure the inner fender at the bottom of the bumper on each side. STEP 24 | Clip in the factory fender flares (if equipped). Reinstall the (2) factory 10mm bolts that secure the inner fender to the fender flare on each side.
- Page 20 INSTALLATION MANUAL STEP 25 | Install the winch rope hook to the winch rope. If you are running a DV8 fair-lead, use a pair of snap ring pliers to remove the snap clip and install the hooks pin on to the rope.
