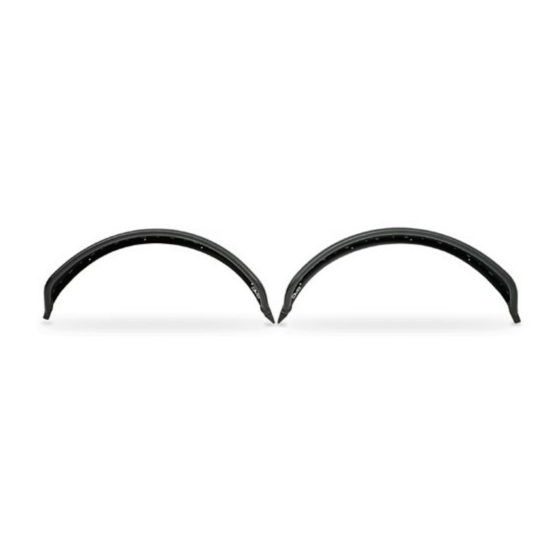

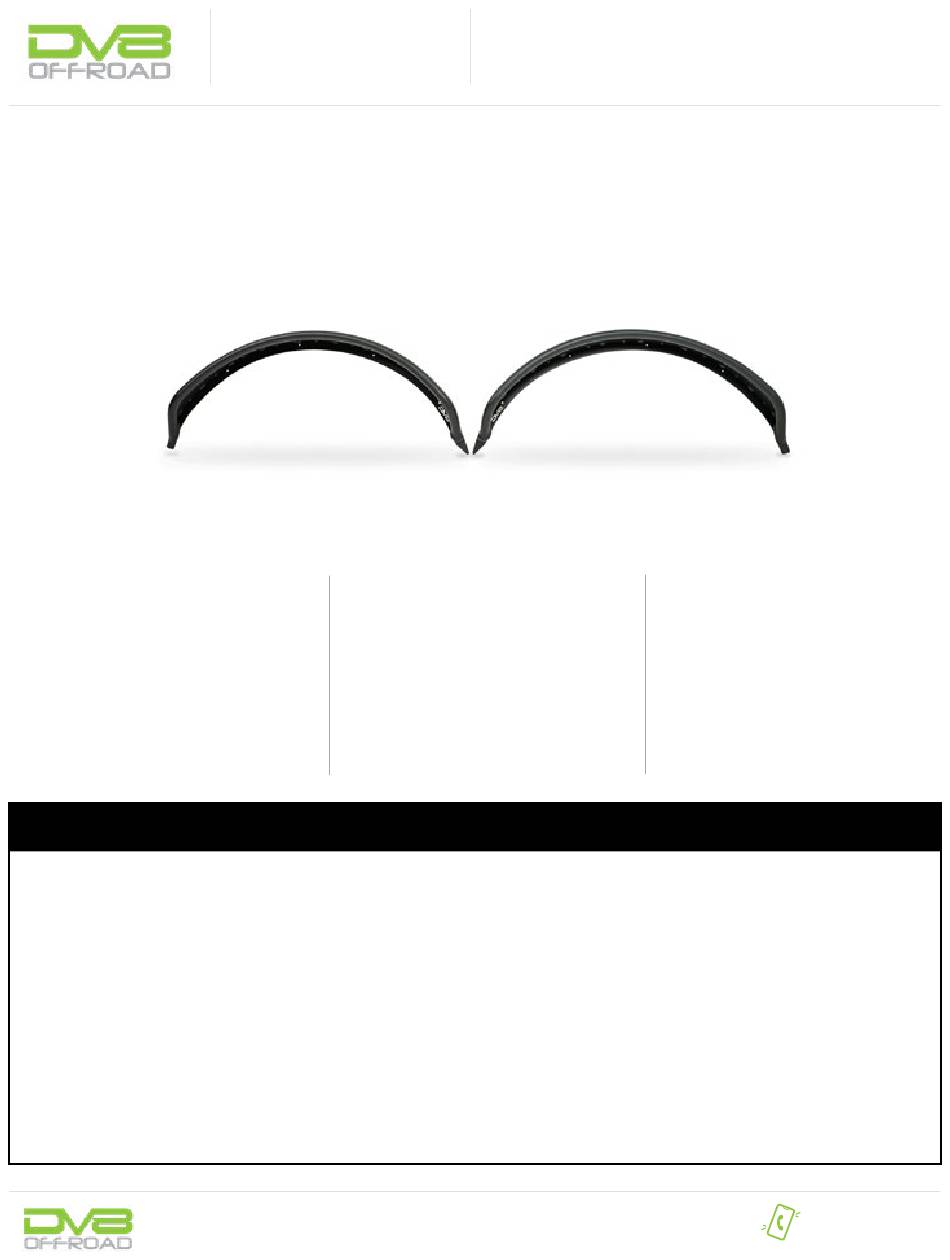

BRONCO TUBE FENDERS
2021+ FORD BRONCO
FDBR-01
TOOLS
REQUIRED
-#4 Allen Bit
-7mm, 10mm Wrench/Socket
-Phillips Head Screw Driver
-Razor
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 2 Hours
Time to install this should only
take about two hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD FDBR-01
Summary of Contents for DV8 OFFROAD FDBR-01
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. HARDWARE INCLUDED -(18) M6x30mm Bolts -(18) M6 Flat Washers -(18) M6 Nuts -(4) Fender “P”...
- Page 3 INSTALLATION MANUAL STEP 2 | Once fender is removed, use a Phillips screwdriver and 7mm socket and remove the plastic push pins along the front and back outer edge of the inner fender. Note: You do not need to remove the inner fender, you only need to gain access to the fender mounting holes.
- Page 4 INSTALLATION MANUAL STEP 3 | Moving to the fender, remove the rubber cover off the stud. Locate the seal that matches the fender. This can be done by laying the seal on the fender and aligning the holes in the seal with the holes in the fender.
- Page 5 INSTALLATION MANUAL STEP 4 | Using the M6 hardware, a #4 allen and 10mm wrench/socket, loosely install fender to vehicle. Note: Our nuts are serrated, so once finger tight, you can tighten from the allen head without having to hold the nut with a wrench. STEP 5 | Once all fender hardware is installed, align the fender of the vehicle...
- Page 6 INSTALLATION MANUAL STEP 6 | Reinstall your inner liner hardware using the 7mm socket/wrench and Phillips head screw driver. Repeat steps for opposite side. STEP 7 | The rear will be similar to the fronts by removing the factory fender. These are easily removed by twisting the small latches until latch becomes loose.
- Page 7 INSTALLATION MANUAL STEP 8 | Once fender is removed, use a Phillips screwdriver and 7mm socket and remove the plastic push pins along the front and back outer edge of the inner fender. Note: You do not need to remove the inner fender, you only need to gain access to the fender mounting holes.
- Page 8 INSTALLATION MANUAL STEP 10 | For the stud on the rear fender, we recommend using a short 10mm socket for best access. Align fender to vehicle and secure all hardware. STEP 11 | Reinstall all hardware for inner liners using 7mm wrench/socket and Phillips head screw driver.
- Page 9 INSTALLATION MANUAL STEP 13 | Congratulations, you are now finished with your install of the DV8 Tube Fenders! NEED HELP? 855-680-9595...
