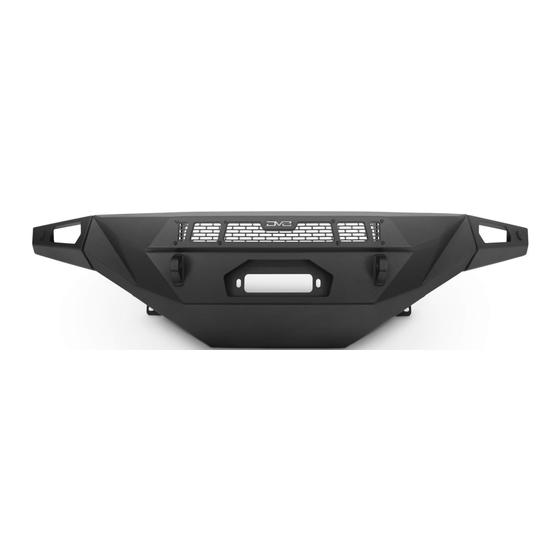

DV8 OFFROAD SPEC Series Installation Manual
Bumper for 14-21 toyota tundra
Hide thumbs
Also See for SPEC Series:
- Installation manual (24 pages) ,
- Product installation manual (20 pages) ,
- Installation manual (19 pages)
Advertisement
Quick Links

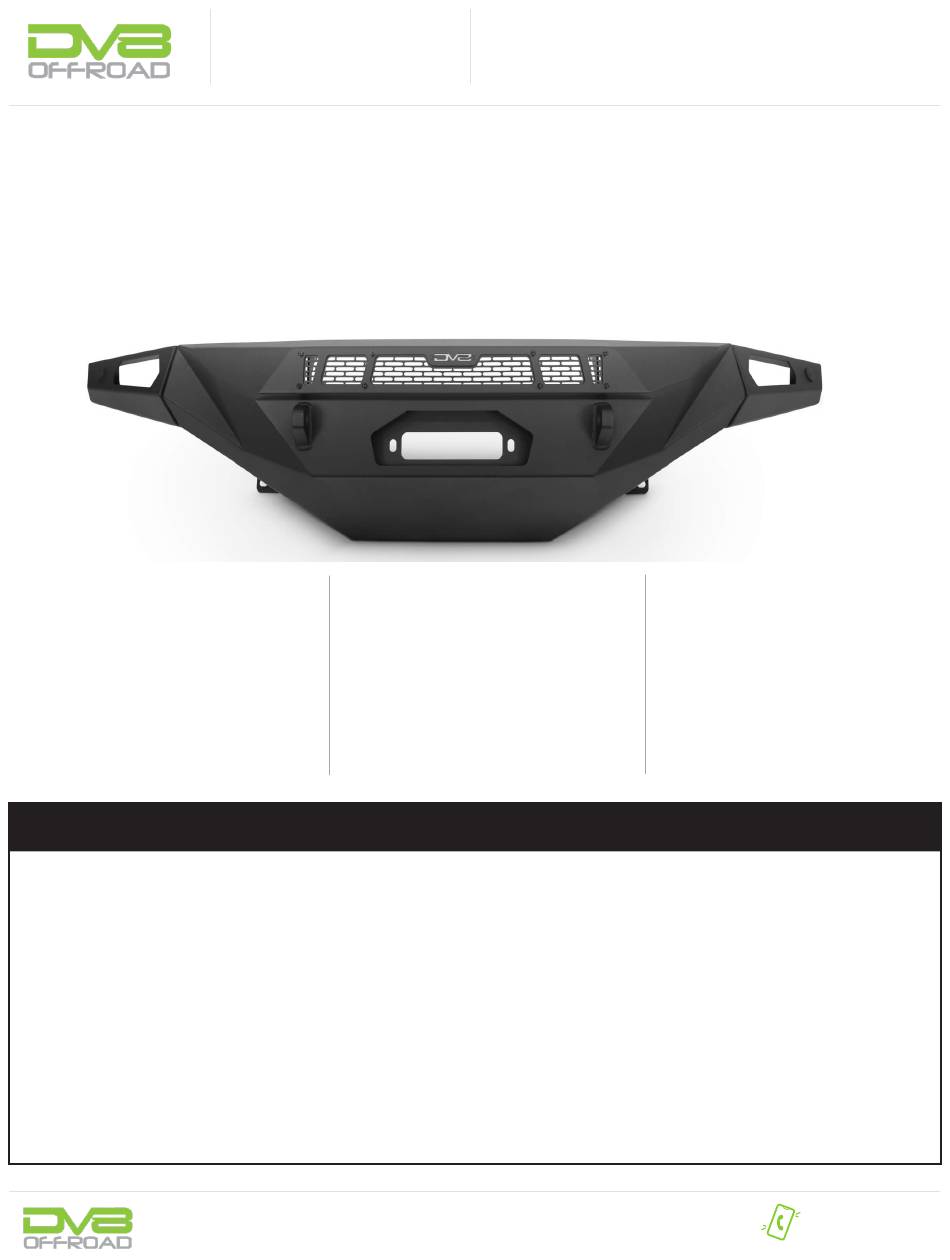

SPEC SERIES BUMPER
14-21 TOYOTA TUNDRA
FBTT2-06
TOOLS
REQUIRED
- 10, 12, 14, 17, 21mm Sockets
- 10&22mm wrenches
- #4 Allen tool
- Trim Tool
- Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 2 persons
Little skill level required, however, ad-
ditional help is required for removal
and installation of bumpers.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 4 Hours
Time to install this should
take about four hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD SPEC Series
Summary of Contents for DV8 OFFROAD SPEC Series
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (12) M14x35 Hex (4) M6 Nylon Lock Nuts (24) M14 Flat Washers (12) M14 Nylon Lock Nuts...
- Page 3 INSTALLATION MANUAL STEP 2 | Disconnect the fog lights and parking sensors (if equipped). The plugs are located on each side of the bumper behind the wheel wells. The parking sensors harnesses are a 3 wire plug. STEP 3 | Using a 10mm socket, remove the 3 bolts securing the bumper to the factory skid plate.
- Page 4 INSTALLATION MANUAL STEP 4 | (Optional) Remove the factory tow hooks using a 17mm socket. STEP 5 | Use a 14mm wrench or deep socket to remove the 4 bumper mounting nuts on each side. This hardware will be reused. NEED HELP? 855-680-9595...
- Page 5 INSTALLATION MANUAL STEP 6 | With assistance pull the bumper away from the vehicle. Ensure all harness retaining clips have been removed from the bumper with a trim tool. STEP 7 | Remove the parking sensors from the OEM Bumper. First, unplug the sensor then, slide the white plastic piece to the side.
- Page 6 INSTALLATION MANUAL STEP 8 | Place the DV8 bumper on soft surface to be assembled and to prevent any damage to the powder coating. Install the provided foam on to the bumpers center section where the wing bolt to. STEP 9 | Install the bumper wings using the provided M14 hardware.
- Page 7 INSTALLATION MANUAL STEP 10 | If planning to run a light bar install the light bar now. Install the provided light bar brackets on to your light bar using the hardware that was provided with the light bar. STEP 11 | Install the light bar with the brackets on the bumper using the provided M6 hardware.
- Page 8 INSTALLATION MANUAL STEP 12 | If planning to run a winch, install the fairlead and winch at this time. Install the fairlead using the hardware provided with the fairlead. Install the winch on to the winch plate using the hardware that is provided with the winch.
- Page 9 INSTALLATION MANUAL STEP 14 | (Optional Step - for customers running a winch only) Using a 12mm socket, remove the bolt securing the power steering coolers mounting bracket on the drivers side. Use a 12mm socket to loosen the passenger side power steering cooler mounting bracket.
- Page 10 INSTALLATION MANUAL STEP 15 | If planning to use 3” pod lights, install the pod lights at this time using the hardware provided with the light. STEP 16 | Install the parking sensors into your new bumper in the same position/orientation as they came off the OEM bumper.
- Page 11 14mm socket. Reconnect parking sensors. (If equipped) Utilizing the built in zip tie tabs, secure all wiring. STEP 19 | Double check that all hardware is secure. Congratulations!! Installation of the DV8 Spec Series Bumper. NEED HELP? 855-680-9595...
