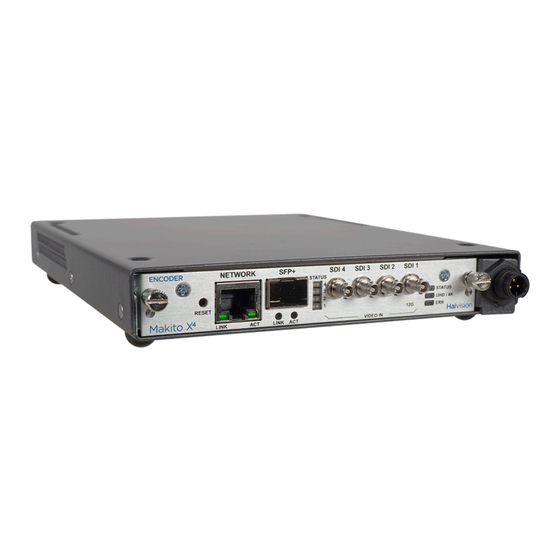

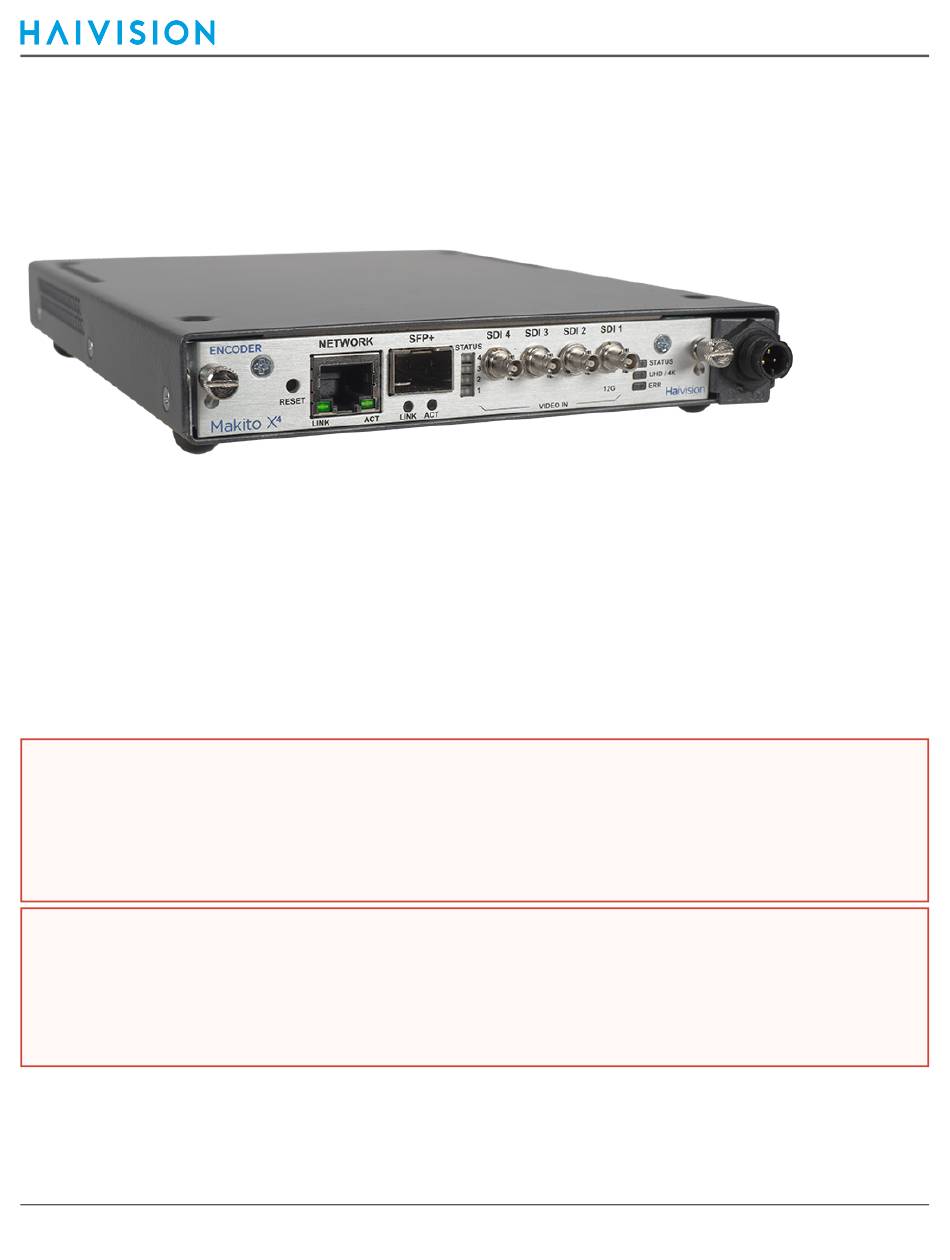

Makito X4 Encoder Quick Start Guide
This Quick Start Guide provides the steps required to install and get started configuring the Makito X4
encoder (appliance) to stream to a compatible decoding device or player, such as the Makito X decoder.
For detailed configuration and operation information, please refer to the User's Guide (available at
https://doc.haivision.com
shipped with the appliance or available on the Haivision Support Portal at http://support.haivision.com).
For information on the MB6 (6-slot) or MB21 (21-slot) chassis, refer to
or the
MB21 Chassis Installation
Safety Guidelines
Warning
This product is intended for installation in a restricted area. Limited access areas are protected by a
specific mechanism, lock and key or other security device.
ATTENTION Ce produit est destiné à être installé dans une zone d'accès restreint. Les zones
d'accès limité sont protégées par un mécanisme spécifique, une serrure et une clé ou tout autre
dispositif de sécurité.
Warning
When using the AC/DC power adapter, the power cord is the main disconnect device. Ensure that
the socket-outlet is located/installed near the equipment and is easily accessible.
ATTENTION Quand on utilise l'adaptateur AC à DC, le cordon d'alimentation est utilisé comme
interrupteur général. La prise de courant doit être située ou installée à proximité de l'équipement
et être facile d'accès.
Makito X4 Encoder 1.0
Makito X4 Encoder Quick Start Guide
Makito X4 Encoder 1.0
) . For the default credentials, refer to the Important Notice document (postcard
Guide.
the MB6 Chassis Installation Guide
1
www.haivision.com
Generated on: 2024-02-08 21:49:52
HVS-ID-QSG-MX4E-10, Issue 01

Advertisement

loading
Need help?

Need help?

Do you have a question about the Makito X4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haivision Makito X4

Summary of Contents for Haivision Makito X4

  • Page 1 Makito X4 Encoder Quick Start Guide Makito X4 Encoder 1.0 This Quick Start Guide provides the steps required to install and get started configuring the Makito X4 encoder (appliance) to stream to a compatible decoding device or player, such as the Makito X decoder.

  • Page 2: Anti - Static Precautions

     Warning Any power supply shipped with a Haivision Makito X Series encoder or decoder is to be used only with that product. Haivision supplied power supplies are not for general use. ATTENTION Tout bloc d'alimentation électrique livré avec un encodeur ou un décodeur de la série Haivision Makito X doit être utilisé...
  • Page 3 EMC Warnings Notice with respect to Class A (FCC) Changes to equipment without the permission of Haivision may result in its failure to comply with the FCC requirements for Class A digital devices. If applicable, your rights to use the equipment may be limited by the FCC rules and you may be able to remedy, at your own expense, any interference with...
  • Page 4 Instrument direkt ansehen. Ein Betrachten des Laserstrahls mit bestimmten optischen Instrumenten, wie z.B. Augenlupen, Vergrößerungsgläsern und Mikroskopen innerhalb eines Abstands von 100 mm kann für das Auge gefährlich sein. Makito X4 Encoder 1.0 Generated on: 2024-02-08 21:49:52 Makito X4 Encoder Quick Start Guide HVS-ID-QSG-MX4E-10, Issue 01...
  • Page 5 ópticos (por ejemplo, lupas y microscopios) a una distancia de 100 mm puede comportar lesiones oculares. Makito X4 Encoder 1.0 Generated on: 2024-02-08 21:49:52 Makito X4 Encoder Quick Start Guide HVS-ID-QSG-MX4E-10, Issue 01...

  • Page 6: Installing The Encoder

    Unpack the box and visually inspect the package contents for any evidence of shipping damage. [See the  Important Notice  postcard in the box for list of contents.] Install the Makito X4 as a desktop unit on a flat, well-ventilated surface. Before You Begin...

  • Page 7: Connecting To The Network

    Connecting to the Network To connect the Network Interface: Connect the Makito X4’s network port to the IP network using an Ethernet UTP cable (type Cat 5 or higher).  Warning Laser Radiation - SFP+ Port: Invisible laser radiation may be emitted from disconnected fibers or connectors.
  • Page 8 8 encoding cores (which can be assigned to any input independently). Use scenario: 4 video sources → Makito X4 Encoder (each input is encoded 2 times) → 8 x stream to decoder Uses Makito X4 as a four-channel encoder; each encode channel can support up to 1080p60/3G-SDI input video.
  • Page 9 Makito X4 Encoder 1.0 Generated on: 2024-02-08 21:49:52 Makito X4 Encoder Quick Start Guide HVS-ID-QSG-MX4E-10, Issue 01...
  • Page 10 The status LED will start blinking green, indicating that the encoder is booting up. Wait until the Status LED stays solid green, indicating that the encoder is ready for operation. Power Adapter 12VDC with Conxall 3-pin Connector Makito X4 Encoder 1.0 Generated on: 2024-02-08 21:49:52 Makito X4 Encoder Quick Start Guide HVS-ID-QSG-MX4E-10, Issue 01...

  • Page 11: Accessing The Web Interface

    The first time you try to access the Web interface from a new browser, the browser may not recognize the Makito X4’s https connection, and you may get a Security Certificate Warning (such as “This Connection is Untrusted.” or “The site’s security certificate is not trusted.”). You must accept the Makito X’s self-signed certificate in order to access the Web interface.
  • Page 12 For security purposes, be sure to change the default passwords! See Changing Your Password in the User's Guide. The Web interface opens to the Outputs List View.    Makito X4 Encoder 1.0 Generated on: 2024-02-08 21:49:52 Makito X4 Encoder Quick Start Guide HVS-ID-QSG-MX4E-10, Issue 01...

  • Page 13: Configuring The Video Settings

    Settings in the User's Guide. • To apply your changes, click Apply. • To start or stop the encoder, click Start or Stop (as applicable). • To view statistics for the encoder, click Statistics. Makito X4 Encoder 1.0 Generated on: 2024-02-08 21:49:52 Makito X4 Encoder Quick Start Guide HVS-ID-QSG-MX4E-10, Issue 01...

  • Page 14: Configuring The Audio Settings

    Settings in the User's Guide. • To apply your changes, click Apply. • To start or stop the encoder, click Start or Stop (as applicable). • To mute the audio (when active), click Mute. Makito X4 Encoder 1.0 Generated on: 2024-02-08 21:49:52 Makito X4 Encoder Quick Start Guide HVS-ID-QSG-MX4E-10, Issue 01...
  • Page 15 • To view statistics for the encoder, click Statistics. Makito X4 Encoder 1.0 Generated on: 2024-02-08 21:49:52 Makito X4 Encoder Quick Start Guide HVS-ID-QSG-MX4E-10, Issue 01...

  • Page 16: Setting Up Streaming

    Under Destination, type in the IP Address and Port number, for example, multicast address   and port  .  225.6.7.8 2000 Leave the default values for the remaining Streaming parameters. See Output Settings in the User's Guide. Click Apply. Makito X4 Encoder 1.0 Generated on: 2024-02-08 21:49:52 Makito X4 Encoder Quick Start Guide HVS-ID-QSG-MX4E-10, Issue 01...
  • Page 17  (as defined in Setting Up Streaming). 2000 2400  For the recommended settings to optimize the Makito X4 encoder configuration to stream to the Makito X decoder, see Makito Decoder Interoperability in the User's Guide.  Note In order to optimize your encoder’s performance, it is recommended that  only  the required network services be enabled.

  • Page 18: Obtaining Documentation

    Obtaining Documentation This document was generated from the Haivision InfoCenter. To ensure you are reading the most up-to- date version of this content, access the documentation online at https://doc.haivision.com. You may generate a PDF at any time of the current content. See the footer of the page for the date it was generated.
