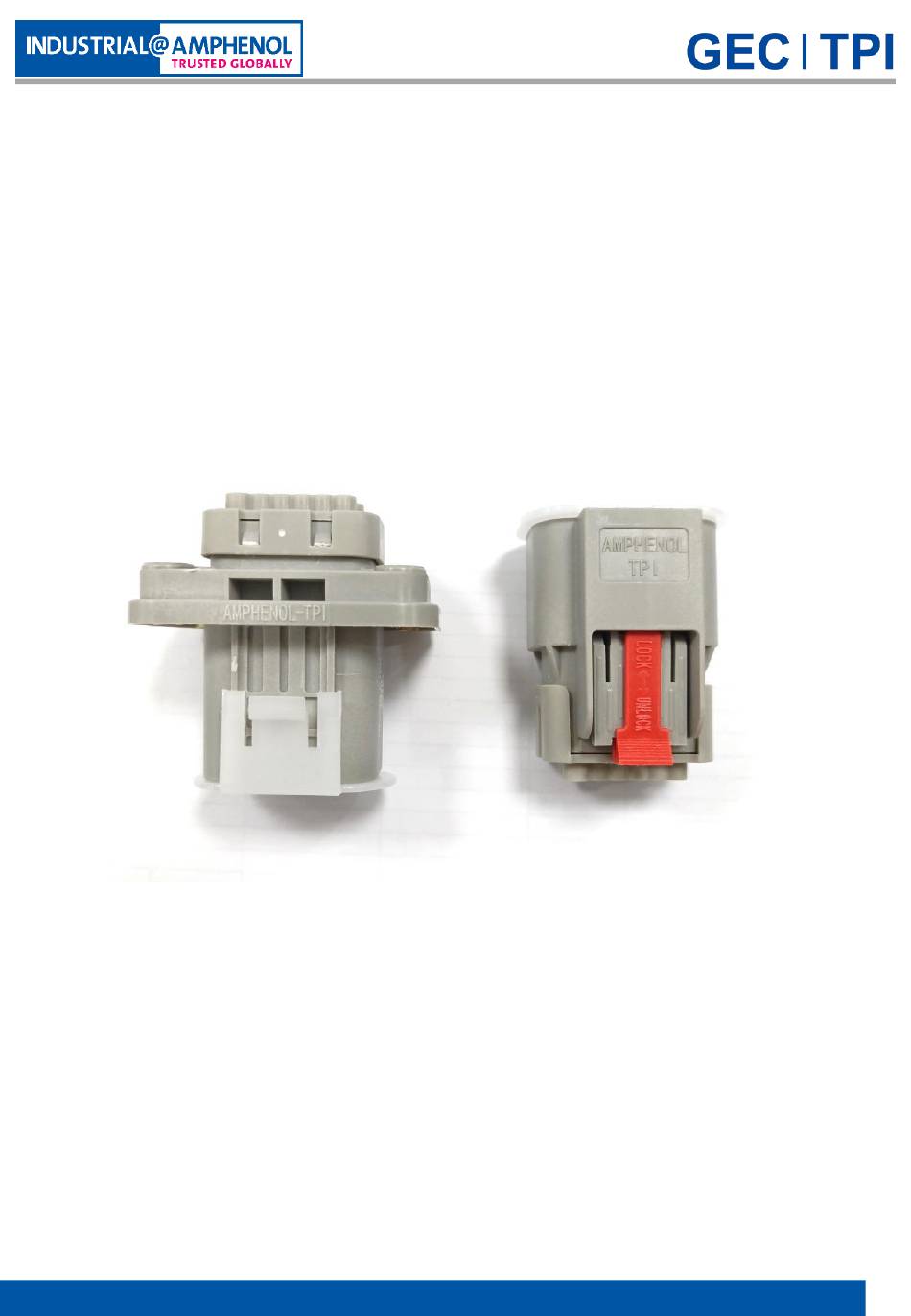

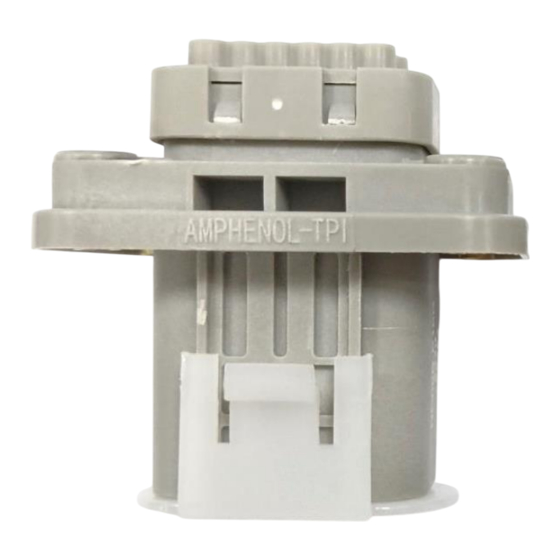

- Page 1 Manual P/N：8P1231 Rev.01 2024/06/18 HC 16芯信号连接器组装规范 HC 16POS Signal Connector Assembly Manual www.amphenol-gec.com...
-
Page 2: Part 1: Product Introduction
HC 16芯信号连接器组装规范 HC 16POS Signal Connector Assembly Manual 第一部分：产品简介 Part 1: Product introduction 1.1 此产品组装规范主要用于阐述HC16芯信号连接器的组装与安装的具体要求以及注意事项。 This product assembly manual is mainly used to describe the specific requirements and precautions for the assembly and installation of HC16 POS signal connectors. 1.2 HC16系列为高防护等级连接器方案，满足恶劣环境使用的防水要求（IP68 接头对配)。... -
Page 3: Assembly Step
HC 16芯信号连接器组装规范 HC 16POS Signal Connector Assembly Manual 注意：镀金端子不能与镀锡端子互配。 Note: The gold-plated terminal cannot be matched with tin-plated terminal. 1.6 适用线缆基本参数 Basic cable parameters are applicable： 适合电缆 工作温度 额定电流 电缆外径范围 弯曲半径 Wire Range Operating Temperature Current Rating Wire OD Range... - Page 4 HC 16芯信号连接器组装规范 HC 16POS Signal Connector Assembly Manual b. 插头防尘盖取出图示 The dust cover of Plug connector removal figure: 先按图示方向拨动CPA，到限定位置后，按压CPA的同时，均匀用力取出防尘盖备用。 Move the CPA in the direction shown in the figure, press the CPA to the specified position, and remove the dust cover with even force.
- Page 5 HC 16芯信号连接器组装规范 HC 16POS Signal Connector Assembly Manual 2.4 将压接好的端子按照Pin位依次插入接头，注意PIN位正确，避免维修损坏接头。 Insert the crimped terminal into the connector according to the Pin position, and ensure that the PIN position is correct to avoid damage to the connector during rework. 端子应逐排垂直插入，端子装到位应能听到“咔”声响，此时后拉应不松脱。 The terminals should be inserted vertically row by row. When the terminals are installed in place, you can hear the click sound.
-
Page 6: Part 3: Installation
HC 16芯信号连接器组装规范 HC 16POS Signal Connector Assembly Manual 第三部分：安装步骤 Part 3: Installation step 安装步骤和相关工艺参数设定 3.1 安装面板 Mounting panel： 面板开孔尺寸参考下图，对应的键位防错孔请以2D图纸为准 Please refer to the figure below for the opening size of the panel. 2D drawings shall prevail for the corresponding key anti-error holes. - Page 7 HC 16芯信号连接器组装规范 HC 16POS Signal Connector Assembly Manual a. 插座预装到面板上后，用M3螺栓锁紧固定 After the socket is preinstalled on the panel, secure it with M3 bolts ***螺栓需配防松弹垫和垫片，建议锁紧扭力范围：0.8~1.2N•m *** bolts should be equipped with elastic pads and gaskets. Recommended locking torque range: 0.8~1.2N•m b.插座端镶嵌螺母规格及尺寸如下，客户自行选择合适的螺栓配合锁紧...
- Page 8 HC 16芯信号连接器组装规范 HC 16POS Signal Connector Assembly Manual 版本记录 Revision history 序号 版本 变更内容 日期 Number Revision Content of change Date 新出 2023/10/25 New issue 更改产品介绍中的IP67为对配状态IP68 2024/06/18 Change the IP67 in the product introduction to the mating status IP68 Manual P/N：8P1231 _ Rev.01 20240618...
- Page 9 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
