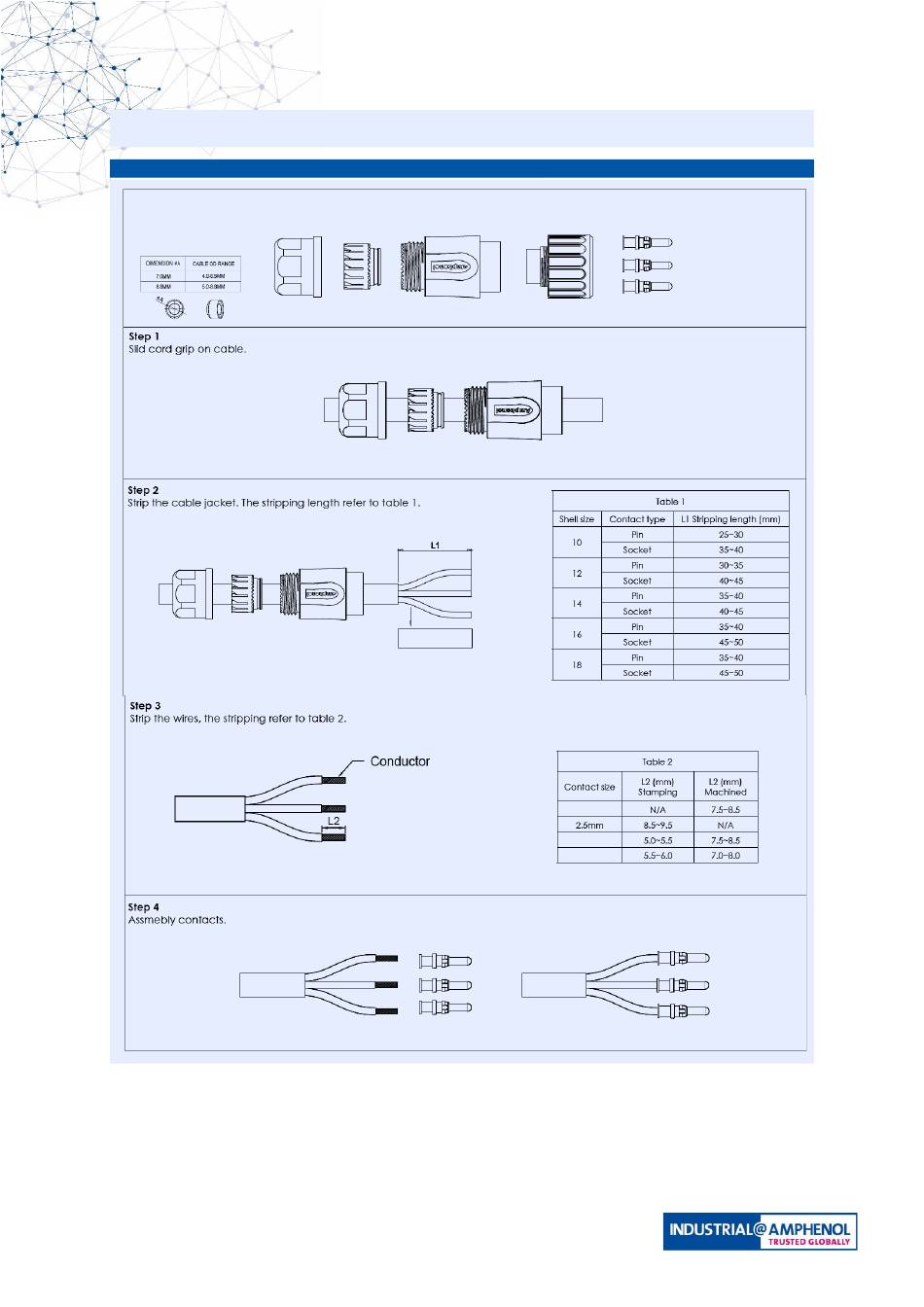

eco|mate Aquarius 1/3 Bayonet
Mounting instruction male & female Plugs
The connector kit usually includes
two different sealings. Check the
drawing for the accepted diameters
of each and chose the correct one
for assembling, Example:
1
Mounting Instructions
3.6mm
1.6mm
1.0mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amphenol ecomate Aquarius
Summary of Contents for Amphenol ecomate Aquarius
- Page 1 eco|mate Aquarius 1/3 Bayonet Mounting Instructions Mounting instruction male & female Plugs The connector kit usually includes two different sealings. Check the drawing for the accepted diameters of each and chose the correct one for assembling, Example: 3.6mm 1.6mm 1.0mm...
- Page 2 Please take note: Size 8 plugs and receptacles are pre-loaded with solder contacts. Wave soldering only, no high temperature processes Info: In case you want to use the Ecomate RM 90° Backshells, the thread should be equipped with an additional o-ring Colored Coding Rings Colored Coding Rings: Placed between cable plug/backshell...
-
Page 3: Mounting Instruction
Mounting instruction Square Flange Receptacles Mounting Instruction: Tightening Gasket Compression Shell size Check drawings for panel cutout dimensions Torque (Nm) Distance (mm) Strip wires and crimp on the contacts Insert the wired contacts into the connector Place gasket and receptacle in right position Fix the receptacle with screws Square Flange sealing: ... - Page 4 Endcaps & Sealing Plugs Mounting Instruction: Endcap versions are shipped pre-assembled. For mounting please insert the wired contacts vertically through the sealing pillow into the contact cavities In case the contact is difficult to assemble it can be soaked in industrial alcohol to improve the slide in ...
- Page 5 Contact Locator for pin contacts (example Ecomate RM) Locator: RT-1208 Installing “contact locators” Contacts locators are not necessary but recommended to ensure the contact position stability of sensitive pin contacts The contact locator is intended to stay in place, it has no effect on the functionality of the connector Tool: ...
- Page 6 85 - 95 mm² 20-1 Crimp 300A © 2023 Amphenol Sine Systems Corporation, 44274 Morley Drive, Clinton Twp MI 48036 USA +1 800 394 7732 www.amphenol-sine.com csr@amphenol-sine.com document are subject to change without notice. www.amphenol-sine.com Updated 04-2024 2 of 2...
