- Page 1 Document No: 8P1164 Rev.02 HV 二芯连接器组装说明 2 POS HV Flange Connector Assembly Manual HVB321(X)-XX 线缆大小 键位 X 键 Cable Size Y 键 www.amphenol-gec.com...
- Page 2 HV 二芯连接器组装说明 2 POS HV Flange Connector Assembly Manual 组装步骤 Assembly Instruction 步骤1：选取合适线缆，按照下表尺寸剥离绝缘皮和外皮 ，并将屏蔽线反折，修剪保留屏蔽14±1mm，线材用 量为2 PCS。 Step 1: Take an appropriate cable, strip off the jacket and insulation according to the dimensions listed below, and fold back the braiding wire on cable jacket. Trim and keep the braiding wire to 14±1mm. We need prepare 2 PCS cables for this connector.
- Page 3 HV 二芯连接器组装说明 2 POS HV Flange Connector Assembly Manual 后套上的屏蔽环 Shielded ring assemble on 与外被口平齐 the next step Flush with the jacket 编织不超出铜套1mm 压接区 Braiding does not exceed Crimp area 1mm from pressure ring 线材尺寸 H(mm) Cable Size 正六边压接 35mm² 15.5±0.5 Hexagonal 50mm²...

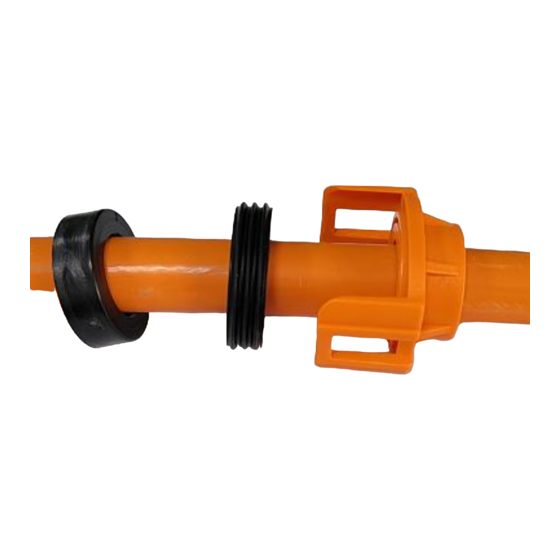

- Page 4 HV 二芯连接器组装说明 2 POS HV Flange Connector Assembly Manual 尾盖两侧卡扣需卡到位 Buckle on both sides of end cap should be in place 步骤7：重复以上步骤组装好 PIN A 的线材。 Step 7: Repeat the above steps to assemble the PIN A cable. 步骤8：如图示在接头上套上二个前密封圈。 Step 8: Insert two front sealing rings on the connector as shown. 2022/05/03 Rev.02 Document No: 8P1164...
- Page 5 HV 二芯连接器组装说明 2 POS HV Flange Connector Assembly Manual 其它说明 法兰盘螺丝安装扭矩推荐：6.2~7.6N.m。 Recommended screw assembly torque on flange: 6.2-7.6 N.m. 线缆尺寸与端子尺寸推荐参照下表。 Refer to the following table for cable dimensions and terminal dimensions. 推荐线缆尺寸 Recommended Cable Dimensions 线缆导体截面积 绝缘层线径 外皮线径 推荐过孔端子宽度尺寸 Cable size Insulation OD Jacket OD Recommended width of the terminal...
- Page 6 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
