Amphenol
Amphenol Automotive Connection Systems (Changzhou) Co., Ltd

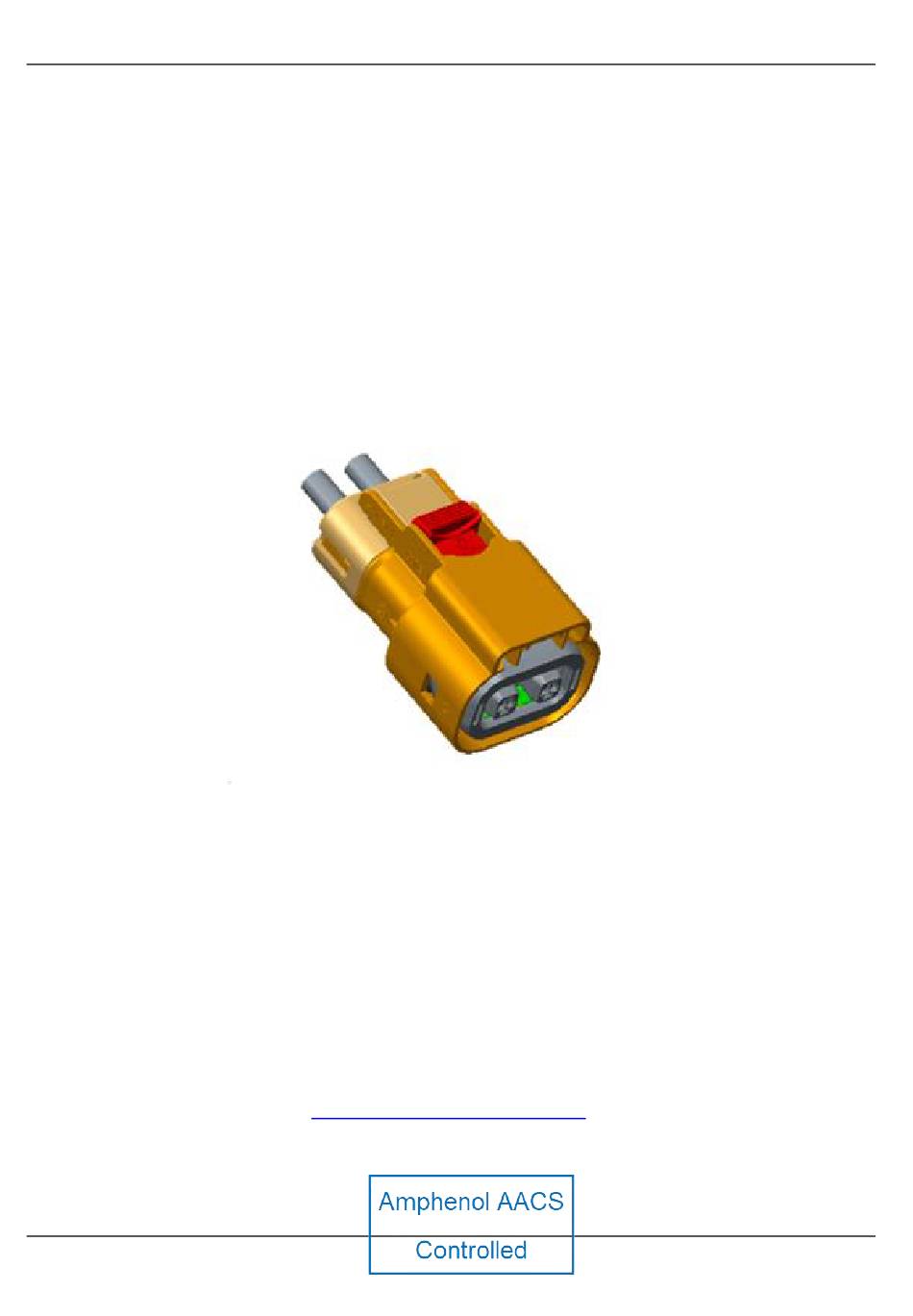

Assembly Manual
18 Lijiang Road, New District of Changzhou, Jiangsu Province, China 213022
Doc No.: AACS-AD-00121
The document is authorized for using only with valid controlled Amphenol AACS stamp
HVC2P28FSXXX
TEL：+86-0519-85601840
FAX：+86-0519-85118840
http://www.amphenol-auto.com/
1 / 8
Rev.07 Date: 2023/09/08
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amphenol HVC2P28FS Series
Summary of Contents for Amphenol HVC2P28FS Series
- Page 1 Amphenol Automotive Connection Systems (Changzhou) Co., Ltd HVC2P28FSXXX Assembly Manual 18 Lijiang Road, New District of Changzhou, Jiangsu Province, China 213022 TEL：+86-0519-85601840 FAX：+86-0519-85118840 http://www.amphenol-auto.com/ Doc No.: AACS-AD-00121 1 / 8 Rev.07 Date: 2023/09/08 The document is authorized for using only with valid controlled Amphenol AACS stamp...
- Page 2 3.3 Ferrule Crimping ..................5 3.4 Terminal Crimp ..................7 3.5 Terminal Assembly .................. 8 3.6 Assembly--- Cover & Seal ............... 8 Doc No.: AACS-AD-00121 Rev.07 Date: 2023/9/8 2 / 8 The document is authorized for using only with valid controlled Amphenol AACS stamp...
- Page 3 1. Product Components List Figure 1 Description Unit Housing Terminal Outer ferrule Inner ferrule Seal Cover Table 1 Doc No.: AACS-AD-00121 Rev.07 Date: 2023/9/8 3 / 8 The document is authorized for using only with valid controlled Amphenol AACS stamp...
- Page 4 3.1 Preassembly---Cover & Seal Put the cover and seal on two wires, as shown in Figure 2. Figure 2 Doc No.: AACS-AD-00121 Rev.07 Date: 2023/9/8 4 / 8 The document is authorized for using only with valid controlled Amphenol AACS stamp...
- Page 5 Note: The crimping parameter of the shield ring can be adjusted appropriately according to the cable to meet the pull-out force of the shielding ring: F≥100N. Doc No.: AACS-AD-00121 Rev.07 Date: 2023/9/8 5 / 8 The document is authorized for using only with valid controlled Amphenol AACS stamp...
- Page 6 Note: Push the inner ferrule to the end of cable jacket as shown in figure 6. Figure 6 Doc No.: AACS-AD-00121 Rev.07 Date: 2023/9/8 6 / 8 The document is authorized for using only with valid controlled Amphenol AACS stamp...
- Page 7 4.75± 0.10 3.80± 0.10 Table 5 Figure 7 Figure 8 28.6±0.5mm Figure 9 Crimp standard reference VW 60330. Doc No.: AACS-AD-00121 Rev.07 Date: 2023/9/8 7 / 8 The document is authorized for using only with valid controlled Amphenol AACS stamp...
- Page 8 Once further questions, please contact with Amphenol AACS. Doc No.: AACS-AD-00121 Rev.07 Date: 2023/9/8 8 / 8 The document is authorized for using only with valid controlled Amphenol AACS stamp...
