Amphenol
PCD Shenzhen
Subject: Assembly Instruction for HVSL282 Connector
修订日期
版本
Date
Rev.
A
2017-02-28
B
2017-05-10
制作 Prepared By: 杨圣祥
日期 Date: 2017-05-10
F-0011-A
HVSL282 连接器组装规范
修订履历 Revision History
修订内容
Updated Content
First release
产品部分结构变更
审核 Checked By:
日期 Date:
Doc. No.: APCD-TD-261
Rev.: B
Page: 1 of 8
Eff. Date: 2017-02-28
作者
Originator
杨圣祥
杨圣祥
批准 Approved By:
日期 Date:
备注
Remark
Advertisement
Table of Contents
Related Manuals for Amphenol HVSL282
Summary of Contents for Amphenol HVSL282
- Page 1 Doc. No.: APCD-TD-261 Amphenol HVSL282 连接器组装规范 Rev.: B PCD Shenzhen Page: 1 of 8 Subject: Assembly Instruction for HVSL282 Connector Eff. Date: 2017-02-28 修订履历 Revision History 修订日期 版本 修订内容 作者 备注 Date Rev. Updated Content Originator Remark 杨圣祥 First release 2017-02-28 产品部分结构变更...

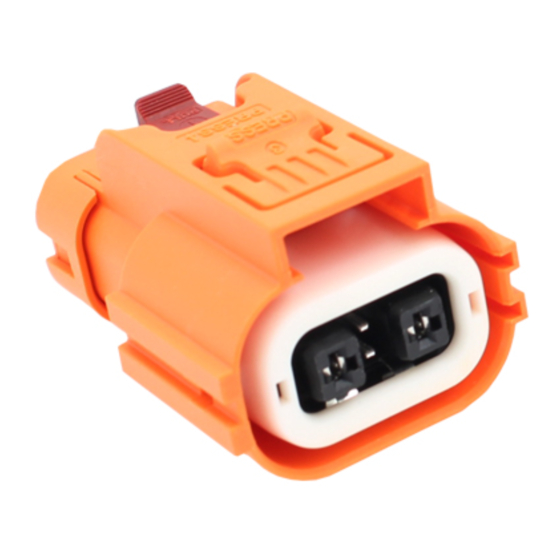

- Page 2 Rev.: B PCD Shenzhen Page: 2 of 8 Subject: Assembly Instruction for HVSL282 Connector Eff. Date: 2017-02-28 1. SCOPE 本规范适用范围为 HVSL 系列连接器。 This following assembly guidelines apply to the HVSL282 series connector. 插头 插座 Socket Plug 2. ASSEMBLY INSTRUCTIONS(PLUG) 选择符合以下要求的屏蔽线缆.
- Page 3 Amphenol HVSL282 连接器组装规范 Rev.: B PCD Shenzhen Page: 3 of 8 Subject: Assembly Instruction for HVSL282 Connector Eff. Date: 2017-02-28 2.3、 按尺寸剥开线缆护套、屏蔽层、绝缘层. Strip jacket、braiding wire、insulation as shown below。 2.4、 将内金属环推到剥皮口处，屏蔽铜丝全部后翻，在屏蔽上包一层 6mm 铜箔。 Push the inner ferrule to peeling mouth，Shielding wire backward turn，with 8mm copper foil bag tight。...
- Page 4 Doc. No.: APCD-TD-261 Amphenol HVSL282 连接器组装规范 Rev.: B PCD Shenzhen Page: 4 of 8 Subject: Assembly Instruction for HVSL282 Connector Eff. Date: 2017-02-28 2.6、 铆压端子,压接后尺寸如下图要求。 Crimping terminal，after crimping. 2.7、 压接金属环，压接尺寸如下图。 Crimping the outer-ferrule，crimping dimensions as follow. ￠1.5mm 凹点约居中 The ￠1.5mm pits in the middle position (FYI) （FY...
- Page 5 Doc. No.: APCD-TD-261 Amphenol HVSL282 连接器组装规范 Rev.: B PCD Shenzhen Page: 5 of 8 Subject: Assembly Instruction for HVSL282 Connector Eff. Date: 2017-02-28 2.8、将线缆组件如下所示，插入插头外壳内。 楔台可见。 Put the cable assy. into the plug housing。 The latch stops should be visible. 卡槽位相对应。...
- Page 6 Doc. No.: APCD-TD-261 Amphenol HVSL282 连接器组装规范 Rev.: B PCD Shenzhen Page: 6 of 8 Subject: Assembly Instruction for HVSL282 Connector Eff. Date: 2017-02-28 4. ASSEMBLY INSTRUCTIONS(Socket) 4.1、选择符合以下要求的屏蔽线缆或非屏蔽线. Choose required shielding or shielding wire 4.0mm² /6.0mm² 依照 ISO 6722:2006 线缆规格 直径 OD 国际汽车电线标准...
- Page 7 Doc. No.: APCD-TD-261 Amphenol HVSL282 连接器组装规范 Rev.: B PCD Shenzhen Page: 7 of 8 Subject: Assembly Instruction for HVSL282 Connector Eff. Date: 2017-02-28 4.4、信号线剥绝缘层。 Signal line strip insulation as shown below。 3.5± 0.5mm 4.5、铆压信号端子，压紧端子后抗拉力≥57.9N，压接后尺寸如下图要求。 Crimping signal terminal，after crimping，the tensile strength ≥57.9N，terminal crimping dimensions as follow。...
- Page 8 Doc. No.: APCD-TD-261 Amphenol HVSL282 连接器组装规范 Rev.: B PCD Shenzhen Page: 8 of 8 Subject: Assembly Instruction for HVSL282 Connector Eff. Date: 2017-02-28 5、TEST INSTRUCTIONS 5.1、 100%耐压、绝缘测试。 100%High-voltage、insulation test AC3000V，10S，漏电流≤5mA. DC 500V，10S，绝缘电阻≥100MΩ AC3000V，10S，Leakage current≤5mA. DC 500V，10S，Insulation resistance≥100MΩ 5.2、100% 导通测试。 100% Continuity test。...
