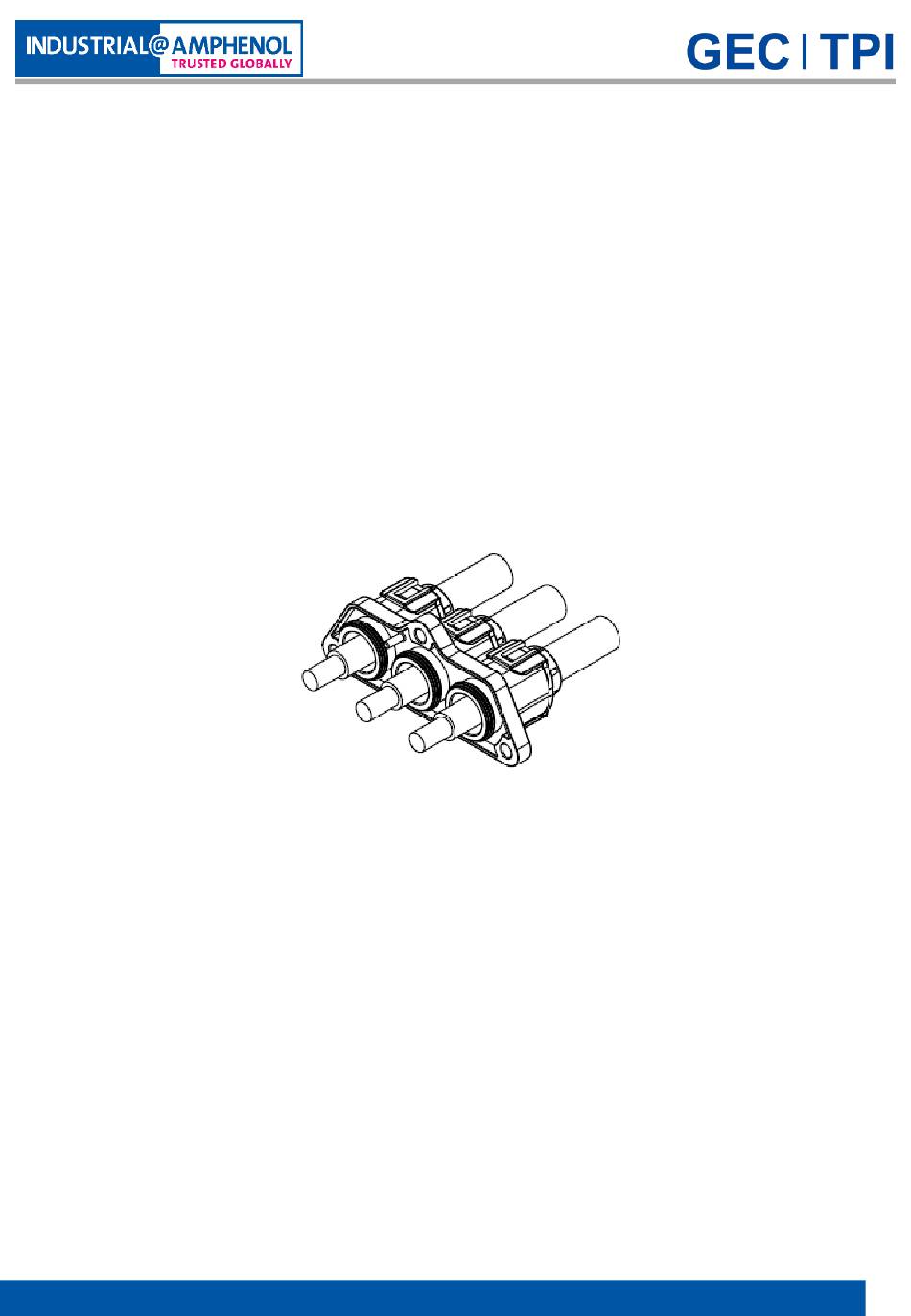

- Page 1 Document No: 8P1304 Rev.00 HVB332X-70 HV三芯连接器组装说明 HVB332X-70 HV Flange 3Pos Plug Assembly Manual www.amphenol-gec.com...
- Page 2 HVB332X-70 HV三芯连接器组装说明 HVB332X-70 HV Flange 3Pos Plug Assembly Manual 目录/Table of contents 产品介绍/ Introduction to products -------------------------------------------------------------------2/8 产品示意图/Exploded View -----------------------------------------------------------------------------3/8 接头组装/Connector Assembly --------------------------------------------------------------------------4/8 线材规格 /Cable Specs -----------------------------------------------------------------------------------7/8 面板安装尺寸/Panel mounting dimension-------------------------------------------------------------7/8 版本记录/Revision history---------------------------------------------------------------------------------8/8 20241219 Rev.00 Document No: 8P1304...
- Page 3 HVB332X-70 HV三芯连接器组装说明 HVB332X-70 HV Flange 3Pos Plug Assembly Manual 第一部分：产品介绍 Part 1： Introduction to products 1：料号信息 Part number information HVB332(X)-70 线缆大小 键位 Cable Size X 键 Y 键 U 键 2：键位区分 Key differentiation 定位柱 料号 键位 尺寸 A Position pillar...
- Page 4 HVB332X-70 HV三芯连接器组装说明 HVB332X-70 HV Flange 3Pos Plug Assembly Manual 第二部分：产品示意图 Part 2： Exploded View ⑦ ⑥ ⑤ ④ ③ ② ① ① 前密封圈 Front Seal ×3 ② 外壳 Shell×1 ③ 屏蔽环 Shielded Ring ×3 ④ 压接环 Pressure Ring ×3 ⑤ 垫圈 Cushion Ring ×3 ⑥...
- Page 5 HVB332X-70 HV三芯连接器组装说明 HVB332X-70 HV Flange 3Pos Plug Assembly Manual 第三部分：接头组装 Part 3: Connector Assembly 安装步骤 Assembly Instruction 步骤1：选取合适线缆(参考手册最后的附录），按照表1尺寸剥离绝缘皮和外被。 Step1：Select the right cable(refer to the appendix), prepare the cable according to the sketch and Table below. 外被 导体 编织 conductor Jacket Braiding 绝缘皮...
- Page 6 HVB332X-70 HV三芯连接器组装说明 HVB332X-70 HV Flange 3Pos Plug Assembly Manual 步骤4：调试好压接机，将压接环后端压好，推荐的压接高度与拉力要求如图示。 Step4：Adjust the crimping machine and crimp the back end of the pressure ring well. The recommended crimping height and tension requirements are shown in the figure. Retention H(mm) Force 18.1±0.3 150N 步骤5：客户根据所选端子要求压接好端子，推荐芯线压缩比为80~90%。...
- Page 7 HVB332X-70 HV三芯连接器组装说明 HVB332X-70 HV Flange 3Pos Plug Assembly Manual 步骤8：重复以上步骤组装好 PIN B与PIN A 的线材。 Step8：Repeat the above steps to assemble the cables into PIN B and PIN A. 步骤8：如图示在接头上套上三个前密封圈。 Step8：Place these three front seals on the connector as shown. 本文件中图例仅供参考，具体颜色与大小以实物为准。...
- Page 8 HVB332X-70 HV三芯连接器组装说明 HVB332X-70 HV Flange 3Pos Plug Assembly Manual 附录APPENDIX 线材规格 Cable Specs 绝缘外径 线缆外径 推荐过孔端子宽度 线缆类型 线缆尺寸 线缆型号 Cable insulation Accepted cable OD Recommended terminal Cable Type Cable size Cable type OD (mm) (mm) width 屏蔽线 Shielding 70mm² 13.7±0.7 17.8+/-0.4...
- Page 9 HVB332X-70 HV三芯连接器组装说明 HVB332X-70 HV Flange 3Pos Plug Assembly Manual 版本记录 Revision history 序号 版本 变更内容 日期 Number Content of change Date 新出试行版 New trial version 2024/12/20 20241219 Rev.00 Document No: 8P1304...
- Page 10 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
