Factory Default Settings
Crank Disconnect: 22Hz
Over-speed: 69Hz
Crank Tries: 3
Low Battery: 10.9VDC
Delay to Start: 0s
Preheat Time: 10s
Oil Bypass Time: 10s
Crank Time: 10s
Cool-down Time: 6.4s
Warm-up: Disabled
Rest Time: 4s
Extra Relay: Preheat
Restart on False Start: Enable
Mid-heat/Post-heat: Disabled
Fuel During Crank Rest: On
Oil Pressure Input: Normally open
switch
Engine Temperature Input: Normally
open switch
Fuel Level Input: Normally open
switch
GSC300 Auto Start Engine Controller
Installation Guidelines and Wiring Diagram
Important Note
The GSC300 no longer contains a program switch. You must have a GSC300 programmer to change any settings on the GSC300.
Mounting Guidelines
The GSC300 is suitable for use on a flat surface of Type 1 enclosure. The maximum torque for the three mounting
screws is 7in-lbs.

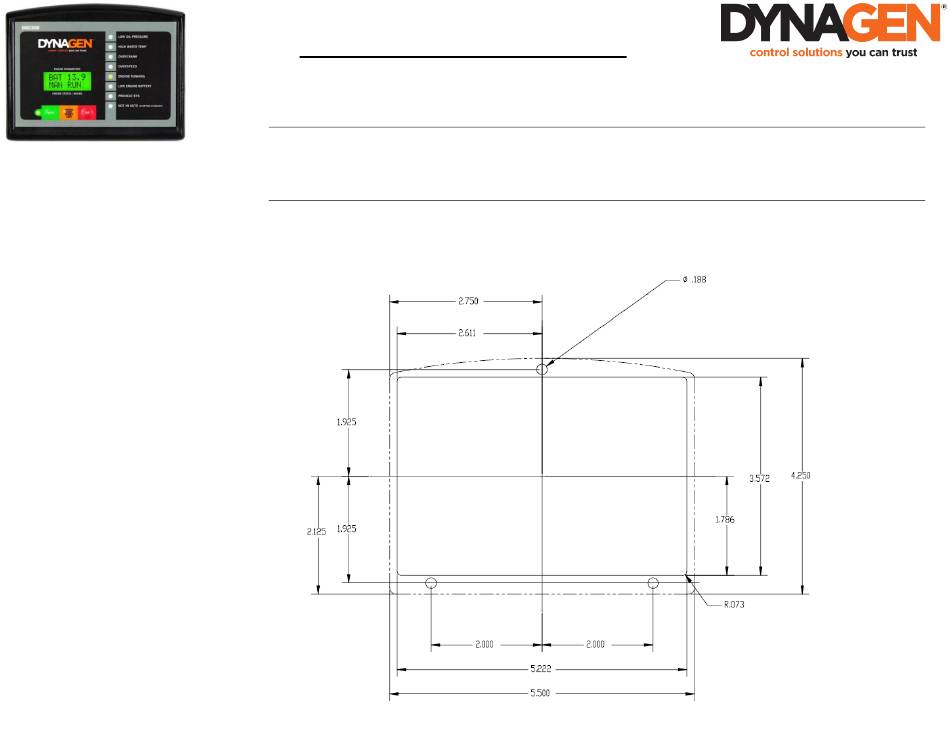

The mounting dimensions are given below.
MAN-0087 R1.3, GSC300
Installation Insert.doc
