CD-3601JK
2D Image Scanner
User Manual
CD-3601JK for JK Series Kiosk

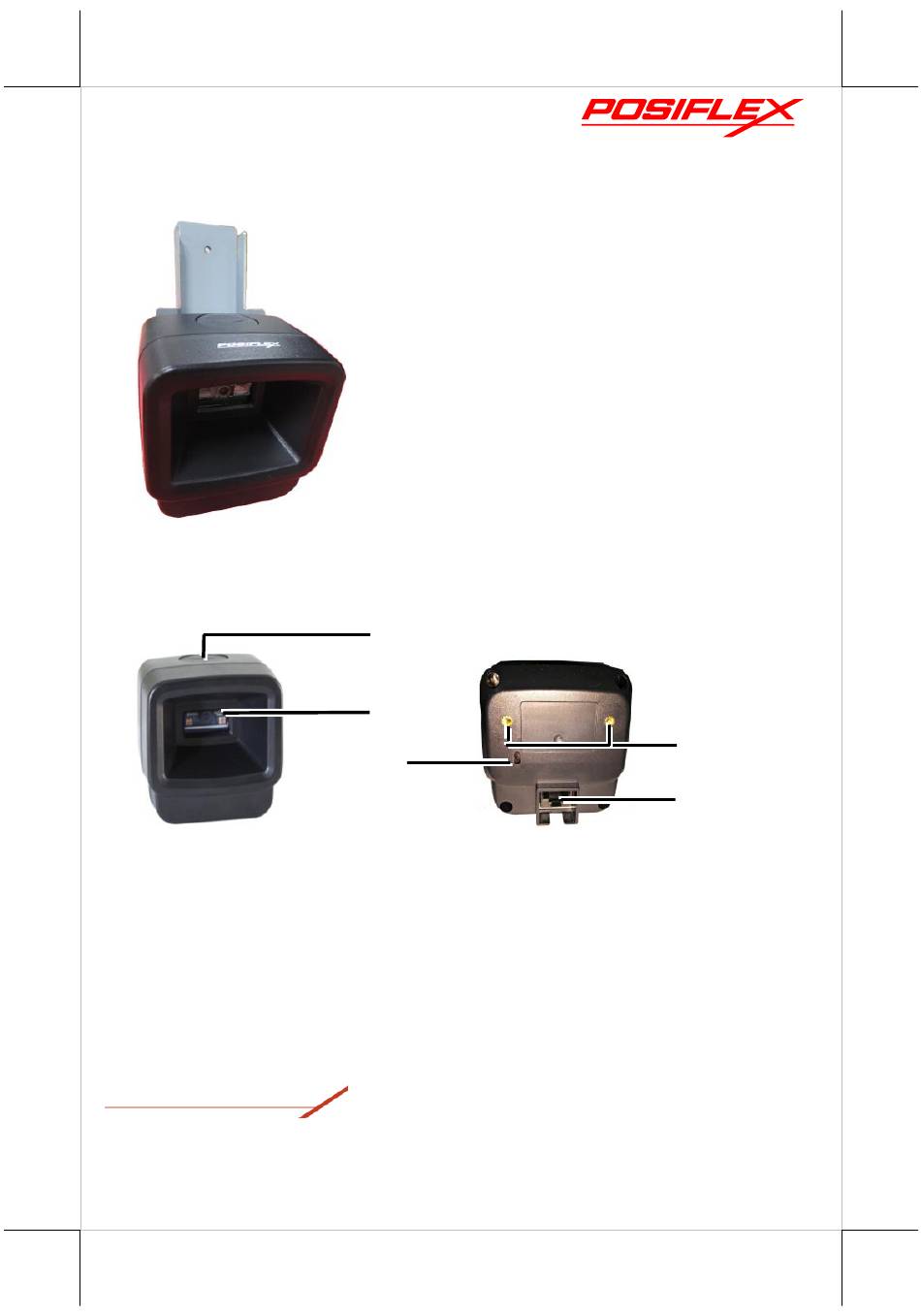

Parts of the 2D Image Scanner
CD-3601JK Scanner Module
Trigger Button
CD-3601JK Ver. B0
Package Contents
CD-3601JK 2D Image Scanner with
Mounting Bracket for JK Series Kiosk
1 #6/32-6L Screw
USB cable
Scan Window
w/ Object Detector
Beeper Hole
1
Mounting Screw Hole
Interface Cable Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-3601JK and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX CD-3601JK

Summary of Contents for POSIFLEX CD-3601JK

  • Page 1 CD-3601JK 2D Image Scanner User Manual CD-3601JK for JK Series Kiosk Package Contents  CD-3601JK 2D Image Scanner with Mounting Bracket for JK Series Kiosk  1 #6/32-6L Screw  USB cable Parts of the 2D Image Scanner CD-3601JK Scanner Module...
  • Page 2 Installing CD-3601JK to JK Series Kiosk Connect the RJ45 connector of the USB cable to the scanner. Unlock and open the touch monitor. For JK-24xx/27xx Series: Open the touch monitor like the door refer to the below picture. For JK-32xx Series: Unlock the touch monitor, hold two sides of the touch monitor and then gently pull it out towards you slowly.
  • Page 3 Crank Rod Stopper for Touch Monitor Align the screw hole on the scanner bracket with the screw hole under the thermal printer, and then fix the scanner bracket to the kiosk with one #6/32 screw. Please refer to the picture below. For JK-24xx/27xx Series:...
  • Page 4 For JK-32xx Series: Connect the USB connector of the cable to the system computer. You can refer to the Cable Routing sticker on the system computer. Remove the dummy door inside the touch monitor, and then fix the 2D scanner bracket to the touch monitor with four hex nuts. For JK-24xx/27xx Series: For JK-32xx Series:...

  • Page 5: Scanner Maintenance

    Scanner Maintenance The scanner is designed for long-term trouble-free operation and rarely requires any maintenance. Only an occasional cleaning of the scanner window is necessary in order to remove dirt and fingerprints. Wipe the scan window with a soft lint-free cloth and a non-abrasive cleaner to avoid the scan window from being scratched and damaged.

  • Page 6: Programming Codes

    Programming Codes Below are some suggestion you need to bear in mind while scanning labels: The barcode labels shown in bold and black are default factory settings. Please cover the unwanted codes for scanning the specific barcode required for the programming to prevent confusion in code scanning. Use the user manual downloaded from our global website for advanced programming.
  • Page 7 Defaults Barcode Setting ✽ The setting barcodes are not used for user interface switch but only for customer defaults setting. RS232 USB-HID USB-VCP Buzzer Settings Enable buzzer Disable buzzer Buzzer loudness: Loud Buzzer loudness: Normal...
  • Page 8 Illumination Detection 1. Green aiming detection When a target code falls within the aiming range while the green aiming light is emitted, the target is detected. It is recommended to use this mode indoors because the detectability is reduced in an environment of higher illuminance levels than indoors.
  • Page 9 Enable Code 39 Enable Codabar Enable Interleaved 2of5 Enable Chinese Post Matrix 2of5 Enable POSTNET Enable MSI/Plessey Enable UK/Plessey Enable Code 128 Enable GS1-Databar Enable GS1-Databar Limited...
  • Page 10 Enable GS1-Databar Expanded Enable QR Code Enable PDF417 Setting Code Specific Options UPC-A, No leading zero, transmit CD UPC-A, No leading zero, not transmit CD UPC-A, Leading zero, transmit CD UPC-A, Leading zero, not transmit CD Options for UPC-E UPC-E, No leading digit, transmit CD UPC-E, No leading digit, not transmit CD...
  • Page 11 UPC-E, Leading digit, transmit CD UPC-E, Leading digit, not transmit CD Options for EAN-13 and EAN-8 EAN-13 not transmit CD EAN-13 transmit CD EAN-8 not transmit CD EAN-8 transmit CD Disable ISBN translation Enable ISBN translation Case Conversion No case conversion...
  • Page 12 Convert to upper case Convert to lower case Floodlight and Aiming Options Disable floodlight Enable floodlight Alternating floodlight Baud Rate Settings 9600 baud 19200 baud 38400 baud 57600 baud...
  • Page 13 Data, Parity and Stop Bits 7 data bits 8 data bits No parity Even parity Odd parity 1 stop bit 2 stop bits Handshaking Barcode Setting No handshake Busy/ready...
  • Page 14 XON/XOFF ACK/NAK Flow Control time out 200ms Intercharacter Delay for RS232 No delay 20 ms delay 50 ms delay 100 ms delay Keyboard Wedge/USB Options With keyboard Without keyboard...
  • Page 15 Keyboard Language German French Dutch Japanese Special Options Do not use numpad Use numpad Auto numlock mode No CAPSLOCK mode...
  • Page 16 CAPSLOCK mode Auto CAPSLOCK mode Intercharacter Delay for Wedges/USB No delay Delay = 1 Delay = 3 Delay = 5 Delay = 7 Delay = 9...
  • Page 17 (Measured from the front end of the scanner) ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-3601JK, please check this model from Posiflex Global Website. Or download the advanced manual for more detailed settings.
