CD-3301U
2D Image Scanner
Quick Setup Guide

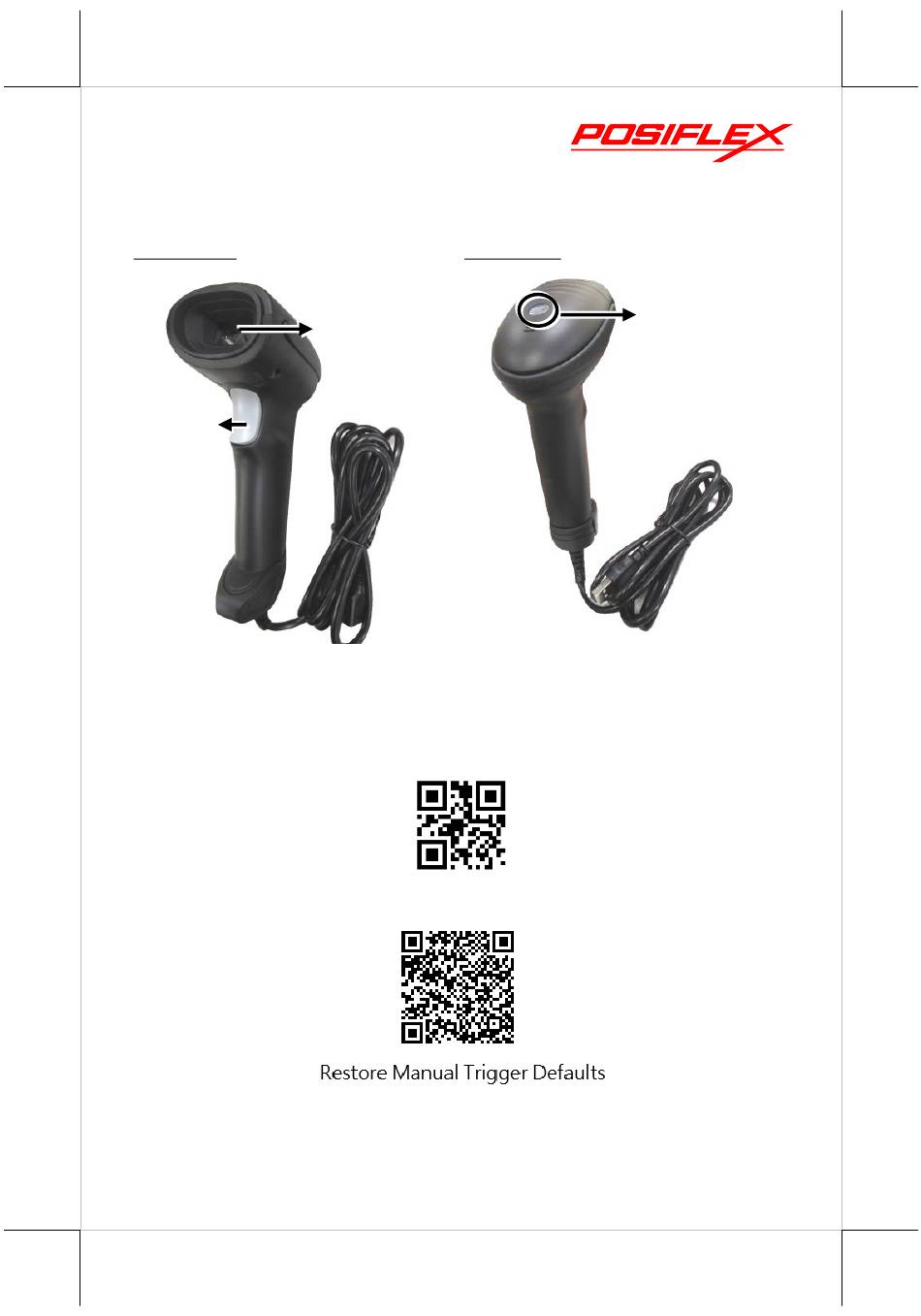

Product Overview
Front View
Trigger
Button
Default Settings
Scanning the following barcode can restore the engine to the factory defaults.
Rear View
Scan
window
Restore All Factory Defaults
$>:S010186.<$
1
Status LED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-3301U and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX CD-3301U

Summary of Contents for POSIFLEX CD-3301U

  • Page 1 CD-3301U 2D Image Scanner Quick Setup Guide Product Overview Front View Rear View Status LED Scan window Trigger Button Default Settings Scanning the following barcode can restore the engine to the factory defaults. Restore All Factory Defaults $>:S010186.<$...
  • Page 2 FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 3: Scanner Maintenance

    ATTENTION Le cordon d'alimentation doit être connecté à une prise de courant avec mise à la terre. Scanner Maintenance The scanner is designed for long-term trouble-free operation and rarely requires any maintenance. Only an occasional cleaning of the scanner window is necessary in order to remove dirt and fingerprints.

  • Page 4: Programming Codes

    Problem Diagnostic Tips The scanner cannot send the data to the POS system. Make sure that the scanner is installed well and your host POS system is ready to receive data. A barcode is read by the scanner The communication settings of the system port but not accepted by the POS and the scanner do not match.

  • Page 5: Firmware Version

    Firmware Version Scan the below barcode to retrieve the current firmware version. USB Interface There are three options for USB connection:  USB HID-KBW: In keyboard mode, place the mouse cursor on the notepad, etc., and the data will be entered into the notepad after successful decoding. ...

  • Page 6: Trigger Mode

    Trigger Mode  Manual Mode: Press the button to trigger the reading, and release the button to end the reading. If the reading is successful or the reading time exceeds the single reading time, the reading will end.  Automatic Scanning Mode: In the induction mode, you can activate the scanner to work by pressing a button, sending a command, or auto-sensing.
  • Page 7 $>:S0C0000.<$ Reading On (default) $>:S0C0400.<$ Always On $>:S0C0800.<$ Aiming When scanning/capturing image, the engine projects an aiming pattern which allows positioning the target barcode whining its field of view and thus makes decoding easier. Before setting, please scan the Enter Setup barcode on P.4. After setting, please scan the Exit Setup barcode on P.4.

  • Page 8: Good Read Beep Frequency

    Good Read Beep Frequency Before setting, please scan the Enter Setup barcode on P.4. After setting, please scan the Exit Setup barcode on P.4. $>:SFFDA27.<$ Medium $>:SFF4B27.<$ Loud (default) $>:SFF2527.<$ Prompt Tone Duration Before setting, please scan the Enter Setup barcode on P.4. After setting, please scan the Exit Setup barcode on P.4.
  • Page 9 Good Read Tone Sound Before setting, please scan the Enter Setup barcode on P.4. After setting, please scan the Exit Setup barcode on P.4. $>:S030018.<$ Medium $>:S030118.<$ Loud $>:S030218.<$ Enabling/Disabling of readable codes Before setting, please scan the Enter Setup barcode on P.4. After setting, please scan the Exit Setup barcode on P.4.
  • Page 10 Enable All 1D Codes $>:S020287.<$ Disable All 1D Codes $>:S020087.<$ Enable All 2D Codes $>:S040487.<$ Disable All 2D Codes $>:S040087.<$ Enable Code128/AIM128/EAN128/NL128 (default) $>:S010188.<$ Disable Code128/AIM128/EAN128/NL128 $>:S010088.<$ Enable UPC/EAN/ISSN/ISBN (default) $>:S010189.<$...
  • Page 11 Disable UPS/EAN/ISSN/ISBN $>:S010089.<$ Enable Codabar $>:S01018C.<$ Disable Codabar (default) $>:S01008C.<$ Enable Code 39 (default) $>:S01018A.<$ Disable Code 39 $>:S01008A.<$ Enable Code 32 (default) $>:S0101AB.<$ Disable Code 32 $>:S0100AB.<$...
  • Page 12 Enable Code 93 (default) $>:S01018D.<$ Disable Code 93 $>:S01008D.<$ Enable Code 11 $>:S01018F.<$ Disable Code 11 (default) $>:S01008F.<$ Enable ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14 (default) $>:S01018B.<$ Disable ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14 $>:S01008B.<$ Enable Industrial 25 $>:S010193.<$...
  • Page 13 Disable Industrial 25 (default) $>:S010093.<$ Enable Matrix 25 $>:S01018E.<$ Disable Matrix 25 (default) $>:S01008E.<$ Enable NEC 25/Japan Matrix 25 $>:S01019E.<$ Disable NEC 25/Japan Matrix 25 (default) $>:S01009E.<$ Enable Standard 25 $>:S010192.<$ Disable Standard 25 (default) $>:S010092.<$...
  • Page 14 Enable Data Logic 25 $>:S01019F.<$ Disable Data Logic 25 (default) $>:S01009F.<$ Enable MSI-Plessey $>:S010191.<$ Disable MSI-Plessey (default) $>:S010091.<$ Enable Plessey $>:S0101A0.<$ Disable Plessey (default) $>:S0100A0.<$ Enable RSS-EXP/RSS_14/GS1 Data $>:S010190.<$...
  • Page 15 Disable RSS-EXP/RSS_14/GS1 Data (default) $>:S010090.<$ Enable Telepen $>:S010194.<$ Disable Telepen (default) $>:S010094.<$ Enable Pharma Code One-Track $>:S0101A1.<$ Disable Pharma Code One-Track (default) $>:S0100A1.<$ Enable Pharma Code Two-Track $>:S0101A2.<$ Disable Pharma Code Two-Track (default) $>:S0100A2.<$...
  • Page 16 Enable AZTEC $>:S01019A.<$ Disable AZTEC (default) $>:S01009A.<$ Enable CODABLOCK A $>:S01019C.<$ Disable CODABLOCK A (default) $>:S01009C.<$ Enable CODABLOCK F $>:S01019D.<$ Disable CODABLOCK F (default) $>:S01009D.<$ Enable Data Matrix (default) $>:S010197.<$...
  • Page 17 Disable Data Matrix $>:S010097.<$ Enable MaxiCode $>:S010199.<$ Disable MaxiCode (default) $>:S010099.<$ Enable PDF417 (default) $>:S010195.<$ Disable PDF417 $>:S010095.<$ Enable Micro PDF $>:S0101A3.<$ Disable Micro PDF (default) $>:S0100A3.<$...
  • Page 18 Enable Micro QR $>:S010198.<$ Disable Micro QR (default) $>:S010098.<$ Enable Han Xin Code $>:S01019B.<$ Disable Han Xin Code (default) $>:S01009B.<$ Enable DOTCODE $>:S0101AE.<$ Disable DOTCODE (default) $>:S0100AE.<$ Allow ID Card Reading $>:S0101AC.<$...

  • Page 19: Specifications

    Prohibit ID Card Reading (default) $>:S0100AC.<$ Allow Passport Reading $>:S0202AC.<$ Prohibit Passport Reading $>:S0200AC.<$ Specifications Item Characteristics Performance Image Sensor 1280*800 CMOS Illumination White LED Aiming Red LED Symbologies QR, Micro QR, PD417, Micro PDF, Data Matrix, Aztex, Maxicode, Han Xin, etc.
  • Page 20 **Test conditions: Scan Distance=(min. DOF + max. DOF)/2; T=25°C; Illumination=200lux using incandescent lamp. ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-3301U, please check this model from Posiflex Global Website. (https://download.posiflex.com/en- global/Download/index/manualUinstall_guide/Barcode-Scanner/CD- 3301U_CD-3301UB).
