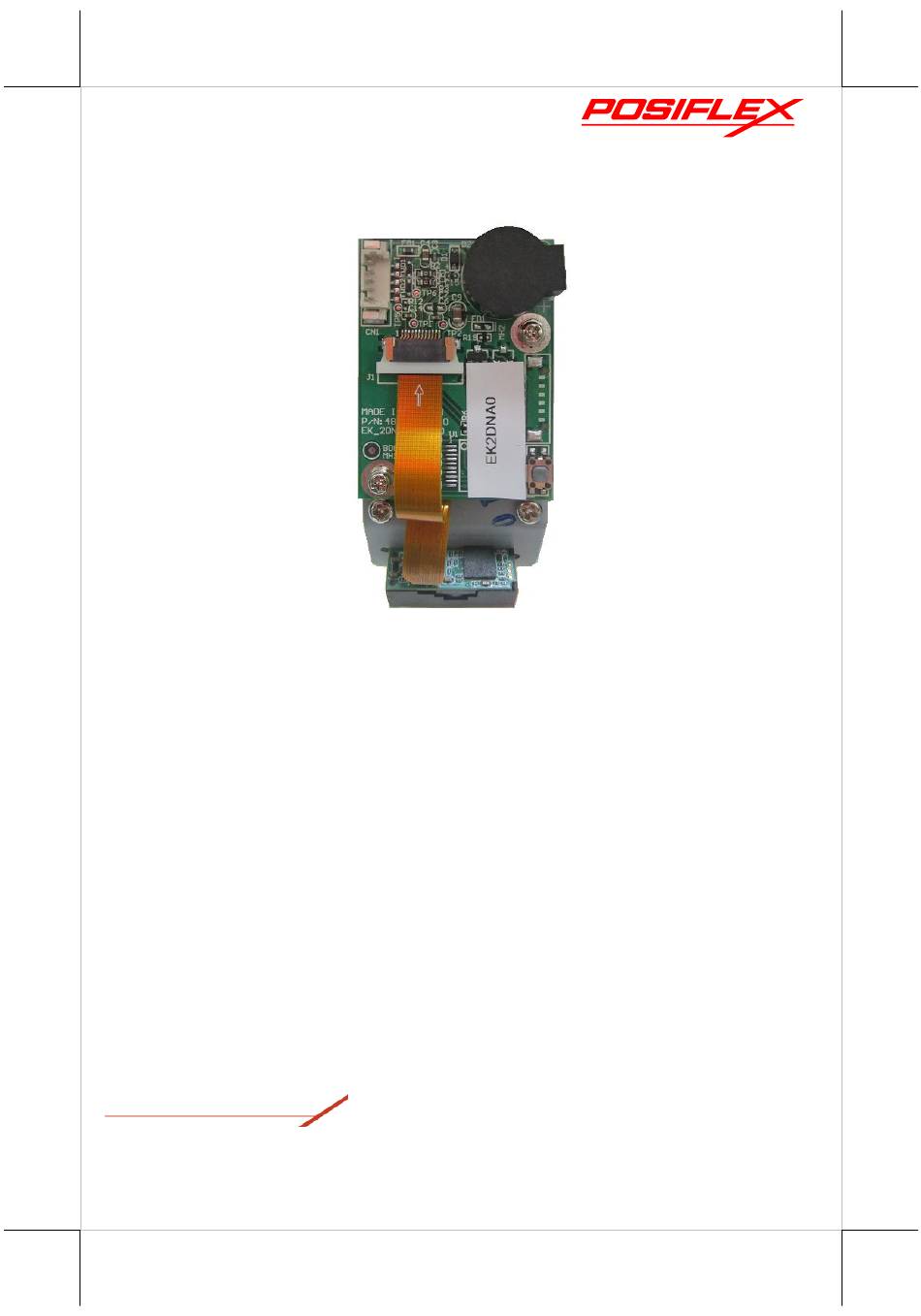

- Page 1 CD-3601EK 2D Image Scanner User Manual CD-3601EK for EK Series Kiosk Package Contents CD-3601EK 2D Image Scanner USB Type A to 5-Pin Connector Cable 2 Screws CD-3601EK Ver. A0...
- Page 2 5-Pin USB Connector Screw Hole for Screw Hole for EK Series Kiosk EK Series Kiosk Scanner Engine Installing CD-3601EK to EK Series Kiosk To unlock the front door, turn the key counterclockwise to around 180 degrees. See the images below. 180゜...
- Page 3 Once the front door is unlocked, the user is able to open the front door. See the images below. Tear off the protective film on one side of the acrylic lens with a "light blue handle", then place the acrylic lens in the scanner holder. Fix it with 2 dots of yellow glue.
- Page 4 Please remove the two screws to take the USB hub board off from the front door. Be careful of the cables.
- Page 5 After removing the USB hub board, fix the scanner module inside the front door with two screws. Connect the 5-Pin USB connector of the scanner module with the USB cable.
- Page 6 Fix the USB hub board back inside the front door, and then connect the other side of the USB cable to the USB hub board. Please refer to the below pictures. Scanner Maintenance The scanner is designed for long-term trouble-free operation and rarely requires any maintenance.
-
Page 7: Programming Codes
Problem Diagnostic Tips The scanner is on but cannot read The scanner window is dirty. Clean the scanner any barcode. window as described in the Scanner Maintenance section. The presented barcode type is not enabled. Use this guide to tell the scanner to accept that type of barcode. -
Page 8: Firmware Version
Firmware Version Scan the below barcode label to retrieve the current firmware version. Firmware Version User Interface Switch Barcodes with Defaults Setting ✽ Before scanning a user interface switch barcode, do NOT do other settings, otherwise all the settings you have done will go invalid. After a user interface switch barcode is scanned, if the failure of switch occurs, please re-plug the I/O cable or re-start your host terminal, and scan the barcode again. - Page 9 Defaults Barcode Setting ✽ The setting barcodes are not used for user interface switch but only for customer defaults setting. RS232 USB-HID USB-VCP Buzzer Settings Disable buzzer Enable buzzer...
- Page 10 Buzzer loudness: Loud Buzzer loudness: Normal Trigger Mode Auto Trigger The Auto Trigger option is a function that automatically detects a scanned target and starts reading. There are three methods for detecting a target code. 1. Green aiming detection When a target code falls within the aiming range while the green aiming light is emitted, the target is detected.
- Page 11 Red Illumination Detection No Illumination Detection Manual Trigger (Disable Auto Trigger) The Manual Trigger (Disable Auto Trigger) option is a function that detects a scanned target and starts reading by manually pressing the trigger button of the scanner. The Disable Auto Trigger (Manual Trigger) option is available ONLY for a scanner that has a trigger button, for example, CD-3200 series and CD-3600 series.
- Page 12 Enable Chinese Post Matrix 2of5 Enable POSTNET Enable MSI/Plessey Enable UK/Plessey Enable Code 128 Enable GS1-Databar Enable GS1-Databar Limited Enable GS1-Databar Expanded Enable QR Code Enable PDF417...
- Page 13 Setting Code Specific Options UPC-A, No leading zero, transmit CD UPC-A, No leading zero, not transmit CD UPC-A, Leading zero, transmit CD UPC-A, Leading zero, not transmit CD Options for UPC-E UPC-E, No leading digit, transmit CD UPC-E, No leading digit, not transmit CD UPC-E, Leading digit, transmit CD UPC-E, Leading digit, not transmit CD Options for EAN-13 and EAN-8...
- Page 14 EAN-13 transmit CD EAN-8 not transmit CD EAN-8 transmit CD Disable ISBN translation Enable ISBN translation Case Conversion No case conversion Convert to upper case Convert to lower case Floodlight and Aiming Options Disable floodlight...
- Page 15 Enable floodlight Alternating floodlight Baud Rate Settings 9600 baud 19200 baud 38400 baud 57600 baud Data, Parity and Stop Bits 7 data bits 8 data bits No parity...
- Page 16 Even parity Odd parity 1 stop bit 2 stop bits Handshaking Barcode Setting No handshake Busy/ready XON/XOFF ACK/NAK Flow Control time out 200ms...
- Page 17 Intercharacter Delay for RS232 No delay 20 ms delay 50 ms delay 100 ms delay Keyboard Wedge/USB Options With keyboard Without keyboard Keyboard Language German...
- Page 18 French Dutch Japanese Special Options Do not use numpad Use numpad Auto numlock mode No CAPSLOCK mode CAPSLOCK mode Auto CAPSLOCK mode...
- Page 19 Intercharacter Delay for Wedges/USB No delay Delay = 1 Delay = 3 Delay = 5 Delay = 7 Delay = 9...
- Page 20 (Measured from the front end of the scanner) ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-36XX, please check this model from Posiflex Global Website. Or download the advanced manual for more detailed settings.
