CD-HS-H20S
2D Image Scanner
Quick Installation Guide
Package Contents
CD-HS-H20S 2D Image Scanner for HS Series POS Terminal
USB cable

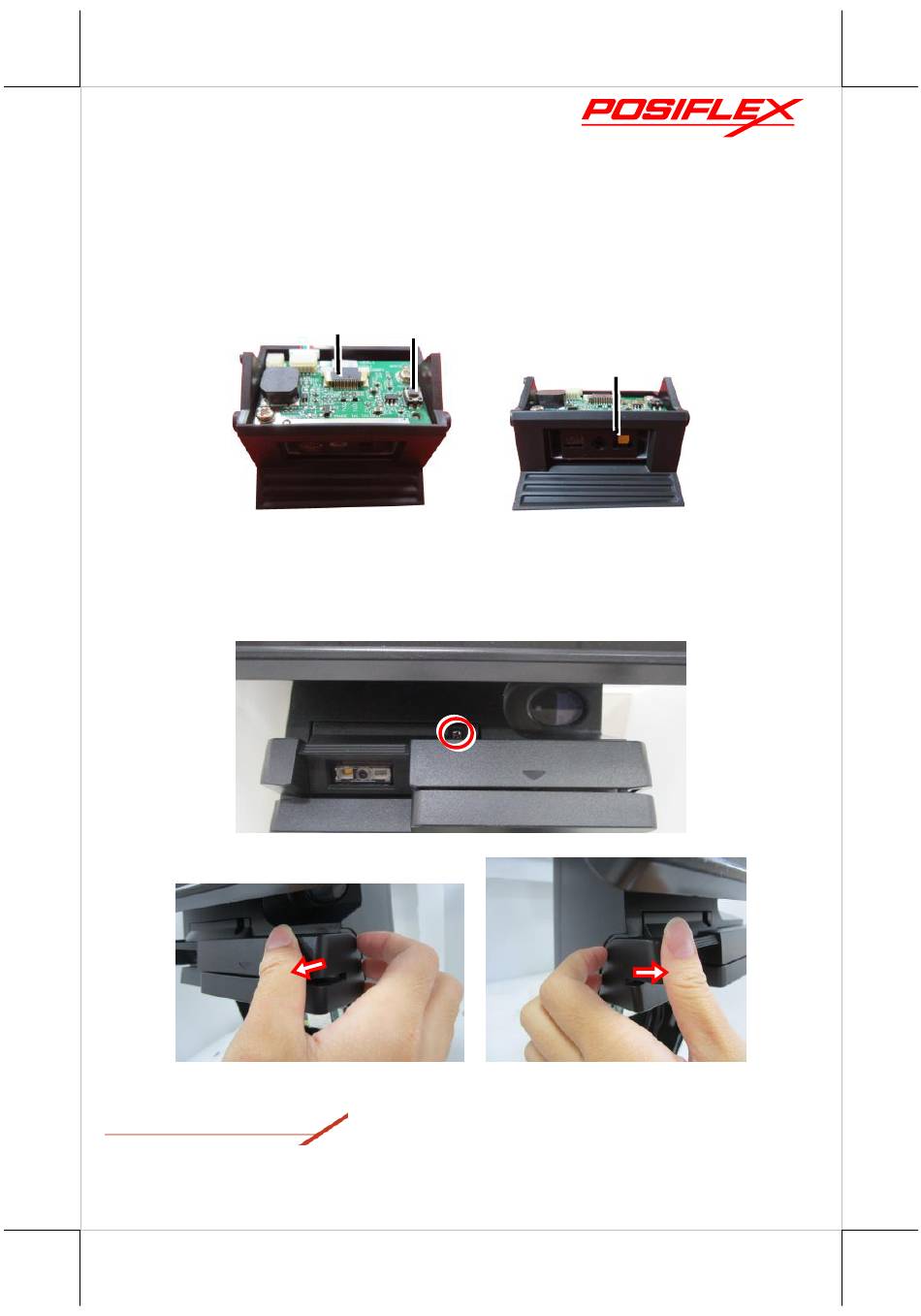

Overview
Control board
Installing CD-HS-H20S to HS Series POS Terminal
1.
Remove the MSR & scanner module by loosening one screw, then remove
the module by two hands.
CD-HS-H20S Ver. A0
Trigger Button
Scan window
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-HS-H20S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX CD-HS-H20S

Summary of Contents for POSIFLEX CD-HS-H20S

  • Page 1 CD-HS-H20S 2D Image Scanner Quick Installation Guide Package Contents  CD-HS-H20S 2D Image Scanner for HS Series POS Terminal  USB cable Overview Control board Trigger Button Scan window Installing CD-HS-H20S to HS Series POS Terminal Remove the MSR & scanner module by loosening one screw, then remove the module by two hands.
  • Page 2 Install the scanner engine to the MSR & scanner module.
  • Page 3 Fix the plastic 2D fix cover with two Φ3 screws. Connect the scanner cable to the hub board. Fix the MSR & scanner module back to the HS series POS terminal with the original screw.

  • Page 4: Default Settings

    Default Settings Scanning the following barcode can restore the engine to the factory defaults. Programming Codes There are some suggestions below you need to bear in mind while scanning labels: The barcode labels shown in bold and black are default factory settings. Please cover the unwanted codes for scanning the specific barcode required for the programming to prevent confusion in code scanning.

  • Page 5: Usb Interface

    USB Interface There are four options for USB connection:  USB HID-KBW: In keyboard mode, place the mouse cursor on the notepad, etc., and the data will be entered into the notepad after successful decoding.  USB HID POS: Use HID POS protocol to communicate. ...
  • Page 6 After setting, please scan the Exit Setup barcode on P.4. $>:S0C0000.<$ Reading On (default) $>:S0C0400.<$ Always On $>:S0C0800.<$ Aiming When scanning/capturing image, the engine projects an aiming pattern which allows positioning the target barcode whining its field of view and thus makes decoding easier.

  • Page 7: Good Read Beep Frequency

    Always On $>:S302000.<$ Good Read Beep Frequency Before setting, please scan the Enter Setup barcode on P.4. After setting, please scan the Exit Setup barcode on P.4. $>:SFFDA27.<$ Medium $>:SFF4B27.<$ Loud (default) $>:SFF2527.<$ Prompt Tone Duration Before setting, please scan the Enter Setup barcode on P.4. After setting, please scan the Exit Setup barcode on P.4.
  • Page 8 80ms (Middle) (default) $>:SFF3E28.<$ 120ms (Long) $>:SFF5D28.<$ Good Read Tone Sound Before setting, please scan the Enter Setup barcode on P.4. After setting, please scan the Exit Setup barcode on P.4. $>:S030018.<$ Medium $>:S030118.<$ Loud $>:S030218.<$ Enabling/Disabling of readable codes Before setting, please scan the Enter Setup barcode on P.4.
  • Page 9 Enable All Barcodes $>:S010187.<$ Disable All Barcodes $>:S010087.<$ Enable All 1D Codes $>:S020287.<$ Disable All 1D Codes $>:S020087.<$ Enable All 2D Codes $>:S040487.<$ Disable All 2D Codes $>:S040087.<$ Enable Code128/AIM128/EAN128/NL128 (default) $>:S010188.<$...
  • Page 10 Disable Code128/AIM128/EAN128/NL128 $>:S010088.<$ Enable UPC/EAN/ISSN/ISBN (default) $>:S010189.<$ Disable UPS/EAN/ISSN/ISBN $>:S010089.<$ Enable Codabar $>:S01018C.<$ Disable Codabar (default) $>:S01008C.<$ Enable Code 39 (default) $>:S01018A.<$ Disable Code 39 $>:S01008A.<$...
  • Page 11 Enable Code 32 (default) $>:S0101AB.<$ Disable Code 32 $>:S0100AB.<$ Enable Code 93 (default) $>:S01018D.<$ Disable Code 93 $>:S01008D.<$ Enable Code 11 $>:S01018F.<$ Disable Code 11 (default) $>:S01008F.<$ Enable ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14 (default) $>:S01018B.<$...
  • Page 12 Disable ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14 $>:S01008B.<$ Enable Industrial 25 $>:S010193.<$ Disable Industrial 25 (default) $>:S010093.<$ Enable Matrix 25 $>:S01018E.<$ Disable Matrix 25 (default) $>:S01008E.<$ Enable NEC 25/Japan Matrix 25 $>:S01019E.<$ Disable NEC 25/Japan Matrix 25 (default) $>:S01009E.<$...
  • Page 13 Enable Standard 25 $>:S010192.<$ Disable Standard 25 (default) $>:S010092.<$ Enable Data Logic 25 $>:S01019F.<$ Disable Data Logic 25 (default) $>:S01009F.<$ Enable MSI-Plessey $>:S010191.<$ Disable MSI-Plessey (default) $>:S010091.<$ Enable Plessey $>:S0101A0.<$...
  • Page 14 Disable Plessey (default) $>:S0100A0.<$ Enable RSS-EXP/RSS_14/GS1 Data $>:S010190.<$ Disable RSS-EXP/RSS_14/GS1 Data (default) $>:S010090.<$ Enable Telepen $>:S010194.<$ Disable Telepen (default) $>:S010094.<$ Enable Pharma Code One-Track $>:S0101A1.<$ Disable Pharma Code One-Track (default) $>:S0100A1.<$...
  • Page 15 Enable Pharma Code Two-Track $>:S0101A2.<$ Disable Pharma Code Two-Track (default) $>:S0100A2.<$ Enable AZTEC $>:S01019A.<$ Disable AZTEC (default) $>:S01009A.<$ Enable CODABLOCK A $>:S01019C.<$ Disable CODABLOCK A (default) $>:S01009C.<$ Enable CODABLOCK F $>:S01019D.<$...
  • Page 16 Disable CODABLOCK F (default) $>:S01009D.<$ Enable Data Matrix (default) $>:S010197.<$ Disable Data Matrix $>:S010097.<$ Enable MaxiCode $>:S010199.<$ Disable MaxiCode (default) $>:S010099.<$ Enable PDF417 (default) $>:S010195.<$ Disable PDF417 $>:S010095.<$...
  • Page 17 Enable Micro PDF $>:S0101A3.<$ Disable Micro PDF (default) $>:S0100A3.<$ Enable Micro QR $>:S010198.<$ Disable Micro QR (default) $>:S010098.<$ Enable Han Xin Code $>:S01019B.<$ Disable Han Xin Code (default) $>:S01009B.<$ Enable DOTCODE $>:S0101AE.<$...

  • Page 18: Specifications

    Disable DOTCODE (default) $>:S0100AE.<$ Allow ID Card Reading $>:S0101AC.<$ Prohibit ID Card Reading (default) $>:S0100AC.<$ Allow Passport Reading $>:S0202AC.<$ Prohibit Passport Reading $>:S0200AC.<$ Specifications Item Characteristics Performance Image Sensor 1280*800 CMOS Illumination White LED Aiming Red LED Symbologies QR, Micro QR, PD417, Micro PDF, Data Matrix, Aztex, Maxicode, Han Xin, etc.
  • Page 19 ≧4mil Resolution* Typical Depth of Field* EAN-13 (13mil): 40mm-360mm PDF417 (6.67mil): 30mm-200mm Data Matrix (10mil): 30mm-220mm Code 39 (5mil): 40mm-180mm QR Code (20mil): 40mm-330mm ≧25% Min. Symbol Contrast Roll: 360°, Pitch: ±50°, skew: ±50° Scan Angle** ° ° Field of View Horizontal 49.6 , Vertical 37.2 Electrical...
