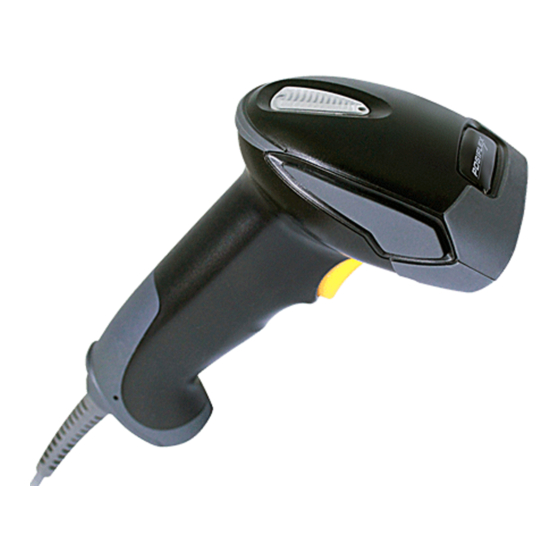

Barcode Scanner
User's Manual
Version: Original

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-3870 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX CD-3870

Summary of Contents for POSIFLEX CD-3870

  • Page 1 CD-3870 Barcode Scanner User’s Manual Version: Original...

  • Page 3: Table Of Contents

    Contents Flow Chart of the Barcode Scanner Installation ...1 1 Systems Information ..........3 1.1 Default..............3 1.2 Version Information..........3 2 Systems Setting ............5 2.1 Interfaces............5 2.1.1 Keyboard Wedge Setting.......6 2.1.2 RS-232 Communication Parameters .....9 2.2 Scan Modes ............12 2.3 Beep Setting ...........15 2.4 Character Installation ........16 2.5 Others Settings ..........18 3 Code ID Setup............19...
  • Page 4 3.13 MSI/Plessey ..........43 3.14 Code 32............45 3.15 Code 11 ............46 3.16 RSS Code (Optional) ........48 Appendix A ASCII Code ........49 Appendix B Function Key Code ......51...

  • Page 5: Flow Chart Of The Barcode Scanner Installation

    Flow Chart of the Barcode Scanner Installation Scan the barcode of “Start Configuration” Reset the parameter Scan the necessary barcode meet application Appendix Scan two digits (HEX) in the Appendix A to be an ASCII code Scan the barcode of “End Configuration”...

  • Page 7: Systems Information

    1 Systems Information 1.1 Default Start Configuration Set All Default ((+M%4D)) 1.2 Version Information Version ((+M%4V)) End Configuration...

  • Page 9: Systems Setting

    2 Systems Setting Start Configuration 2.1 Interfaces Interface Selection (Keyboard) ((A1A)) RS-232 ((A1B)) USB HID keyboard ((A1C)) USB Virtual COM ((A1D)) End configuration...

  • Page 10: Keyboard Wedge Setting

    2.1.1 Keyboard Wedge Setting Start Configuration Languages (US) ((B2A)) Italian ((B2B)) Spanish ((B2C)) French ((B2D)) Germany ((B2E)) Japan ((B2F)) Portugal ((B2G)) Hungary ((B2H)) Swedish ((B2I)) End Configuration...
  • Page 11 Start Configuration Languages Norwegian ((B2J)) Denmark ((B2K)) Netherlands ((B2L)) Turkey ((B2M)) UK ((B2N)) Belgium ((B2O)) Česko((B2P)) Function Key Emulation ON ((B3B)) (OFF) ((B3A)) Keyboard Emulation ON ((B4B)) (OFF) ((B4A)) End Configuration...
  • Page 12 Start Configuration ALT Mode ON ((BCA)) (OFF) ((BCB)) Keyboard Terminator None ((B9A)) (CR) ((B9B)) Tab ((B9C)) ESC ((B9D)) Caps Lock ON ((B5B)) (OFF) ((B5A)) Num Lock ON ((B6B)) (OFF) ((B6A)) Inter-Character Delay 00H（00-64H*1（ms） ）((B7A)) End Configuration...

  • Page 13: Rs-232 Communication Parameters

    Start Configuration 2.1.2 RS-232 Communication Parameters Baud Rate 2400 ((C8B)) 4800 ((C8C)) (9600) ((C8D)) 19200 ((C8E)) 38400 ((C8F)) 57600 ((C8G)) 115200 ((C8H)) End Configuration...
  • Page 14 Start Configuration Data Bits 7 ((C7B)) (8) ((C7A)) Data Stop 2 ((C6B)) （1）((C6A)) Parity Even ((C5B)) (None) ((C5A)) Odd ((C5C)) Inter-Character Delay （00-64H*1(ms)）((C2A)) Handshaking RTS/CTS ((C1B)) (None) ((C1A)) ACK/NAK ((C1C)) Xon/Xoff ((C1D)) End Configuration...
  • Page 15 Start Configuration Character Parameter None ((C9A)) (CR+LF) ((C9B)) CR ((C9C)) LF ((C9D)) Tab ((C9E)) STX/ETX ((C9F)) EOT ((C9G)) End Configuration...

  • Page 16: Scan Modes

    2.2 Scan Modes Trigger Mode Press the trigger and start to scan. The scan will be ended once you loose the trigger or decode the barcode. Repeat the action to start the next decodes. Auto Power OFF Mode Press the trigger and start to scan. The scan will be ended once the time is up or decode the barcode.
  • Page 17 Timeout Setup 1. Scan the “Continuous/Timeout OFF Mode” barcode. 2. Scan 2 digits of the ASCII code of the Appendix 3. Scan the “End” barcode of the Appendix A. 4. Scan the End Configuration to end the procedure. 5. The settings unit is a second one; for example, 0*40 stands for 1 minute.
  • Page 18 Start Configuration Scan Mode Trigger On/Off ((E1A)) ( Trigger On/Good Read Off ) ((E1B)) Continuous/Trigger Off ((E1C)) Testing ((E1D)) Continuous/LED Always On ((E1E)) Continuous/Timeout Off ((E1F)) Flash On ((E1G)) Continuous/No Trigger ((E1H)) Auto Scan ((+E1J)) End Configuration...

  • Page 19: Beep Setting

    Start Configuration 2.3 Beep Setting Buzzer Frequency 09H(00-10H) ((E2A)) Buzzer Beep Tone 04H(00-10H) ((E3A)) Power Up Tone OFF ((EBB)) (ON) ((EBA)) Good Read Beep OFF ((ECB)) (ON) ((ECA)) End Configuration...

  • Page 20: Character Installation

    2.4 Character Installation The first and last characters: You can put 10 ASCII at most in front of the barcode data. When the installation “0”, it means that you don’t need to add the first and last characters. Please find the format as below: The First Character Barcode The Last Character...
  • Page 21 3. Repeat the same process to the G2 character insertion position. 4. Scan the “End Configuration” barcode. Code Transmission: If your application needs to transmit the code (barcode type ID), you have to set “ON” for this feature and the format is ID + Barcode data.

  • Page 22: Others Settings

    Start Configuration Preamble Setting (00) ((E4A)) Postamble Setting (00) ((E5A)) Character Insertion G1(00) ((E6A)) G2(00) ((E7A)) Character Insertion Position G1(00) ((E8A)) G2(00) ((E9A)) Code ID Transmission ON ((EAA)) (OFF) ((EAB)) 2.5 Others Settings Scanning Verification Double ((EDB)) (Single) ((EDA)) Bar Space Setting Bar Low ((EEB)) (Bar High) ((EEA)) End Configuration...

  • Page 23: Code Id Setup

    Start Configuration 3 Code ID Setup 3.1 UPC-A Reading OFF ((F1A)) (ON) ((F1B)) Code ID 46H (20-7EH) ((F2A)) UPC-A Convertor to EAN-13 ON ((F3A)) (OFF) ((F3A)) Check Char. Transmission OFF ((F4A)) (ON) ((F4B)) Leading Zero Truncation ON((F5B)) (OFF)(F5A)) End Configuration...
  • Page 24 Start Configuration UPC-A Leading Digit 00H (00-0DH) ((F6A)) Last Digit Truncation 00H (00-0DH) ((F7A)) Insertion Code Selection 00H (00-02H）((F9A)) Add-on 2/5 2 ((F8B)) (None) ((F8A)) 5 ((F8C)) 2/5 ((F8D)) Auto ((F8E)) End Configuration...

  • Page 25: Upc-E

    Start Configuration 3.2 UPC-E Reading OFF ((G1A)) (ON) ((G1B)) Code ID 47H (20-7EH) ((G2A)) UPC-E Convertor to UPC-A ON ((G3B)) (OFF) ((G3A)) Check Char. Transmission OFF ((G4A)) (ON) ((G4B)) Leading Zero Truncation ON ((G7B)) (OFF) ((G7A)) End Configuration...
  • Page 26 Start Configuration UPC-E Leading Digit Truncation 00H (00-08H) ((G5A)) Last Digit Truncation 00H (00-08H) ((G6A)) Insertion Code Selection 00H (00-02H) ((G9A)) Add-on 2/5 2 ((G8B)) (None) ((G8A)) 5 ((G8C)) 2/5 ((G8D)) Auto ((G8E)) End Configuration...

  • Page 27: Ean-13

    Start Configuration 3.3 EAN-13 Reading OFF ((H1A)) (ON) ((H1B)) Code ID 48H (20-7EH) ((H2A)) Check Char. Transmission OFF ((H3A)) (ON) ((H3B)) Leading Digit Truncation 00H (00-0DH) ((H4A)) Last Digit Truncation 00H (00-0DH) ((H5A)) Insertion Code Selection 00H (00-02H) ((H8A)) End Configuration...
  • Page 28 Start Configuration EAN-13 Add-on 2/5 2 ((H6B)) (None) ((H6A)) 5 ((H6C)) 2/5 ((H6D)) Auto ((H6E)) ISBN/ISSN Conversion ON ((H7B)) (OFF) ((H7A)) End Configuration...

  • Page 29: Ean-8

    Start Configuration 3.4 EAN-8 Reading OFF ((I1A)) (ON) ((I1B)) Code ID 49H (20-7EH) ((I2A)) Check Char. Transmission OFF ((I3A)) (ON) ((I3B)) Leading Digit Truncation 00H (00-08H) ((I4A)) Last Digit Truncation 00H (00-08H) ((I5A)) Insertion Code Selection 00H (00-02H) ((I7A)) End Configuration...
  • Page 30 Start Configuration EAN-8 Add-on 2/5 2 ((I6B)) (None) ((I6A)) 5 ((I6C)) 2/5 ((I6D)) Auto ((I6E)) End Configuration...

  • Page 31: Code 39

    Start Configuration 3.5 Code 39 Reading OFF ((J1A)) (ON) ((J1B)) Code ID 4AH (20-7EH) ((J2A)) Checksum Verification ON ((J3B)) (OFF) ((J3A)) Check Char. Transmission OFF ((J4A)) (ON) ((J4B)) Format Full ASCII ((J9B)) (Standard) ((J9A)) Start/End Char. Transmission ON ((JDB)) (OFF) ((JDA)) End Configuration...

  • Page 32: Code 93

    Start Configuration Code 39 Min. Length 00H (01-50H) ((J6A)) Max. Length 50H (01-50H) ((J7A)) Code 39 Concatenation ON ((JFB)) (OFF) ((JFA)) Leading Digit Truncation 00H (00-50H) ((JAA)) Last Digit Truncation 00H (00-50H) ((JBA)) Insertion Code Selection 00H (00-02H) ((JCA)) End Configuration...

  • Page 33: Codabar

    Start Configuration 3.6 Codabar Reading OFF ((K1A)) (ON) ((K1B)) Code ID 4BH (20-7EH) ((K2A)) Checksum Verification OFF ((K3A)) (ON) ((K3B)) Check Character Transmission ON ((K4B)) (OFF) ((K4A)) Start/End Character Transmission abcd/abcd (ABCD/ABCD) ((K8B)) ((K8A)) abcd/tn*e ((K8C)) Start/End Character Transmission OFF ((K9A)) (ON) ((K9B)) End Configuration...
  • Page 34 Start Configuration Codabar Leading Digit Truncation 00H (01-50H) ((K6A)) Last Digit Truncation 00H (01-50H) ((K7A)) Insertion Code Selection 00H (00-02H) ((KCA)) Min. Length 06H (01-50H) ((KAA)) Max. Length 50H (01-50H) ((KBA)) End Configuration...
  • Page 35 Start Configuration 3.7 Code 93 Reading OFF ((L1A)) (ON) ((L1B)) Code ID 4CH (20-7EH) ((L2A)) Checksum Verification OFF ((L3A)) (ON) ((L3B)) Check Character Transmission ON ((L4B)) (OFF) ((L4A)) Min. Length 03H (06-50H) ((L5A)) Max. Length 50H (06-50H) ((L6A)) End Configuration...
  • Page 36 Start Configuration Code 93 Leading Digit Truncation 00H (00-50H) ((L7A)) Last Digit Truncation 00H (00-50H) ((L8A)) Insertion Code Selection 00H (00-02H) ((L9A)) End Configuration...

  • Page 37: Code 128/Ean-128

    Start Configuration 3.8 Code 128/EAN-128 Reading OFF ((M1A)) (ON) ((M1B)) Code ID 4DH (20-7EH) ((M2A)) Checksum Verification OFF ((M3A)) (ON) ((M3B)) Check Character Transmission ON ((M4B)) (OFF) ((M4A)) Min. Length 03H (01-50H) ((MAA)) Max. Length 50H (01-50H) ((MBA)) End Configuration...
  • Page 38 Start Configuration Code 128 FNC2 Concatenation ON ((M5B)) (OFF) ((M5A)) UCC/EAN128 ON ((M6B)) (OFF) ((M6A)) FNC1 Transmission ON ((M7B)) (OFF) ((M7A)) Leading Digit Truncation 00H (00-50H) ((M8A)) Last Digit Truncation 00H (00-50H) ((M9A)) Insertion Code Selection 00H (00-02H) ((MCA)) End Configuration...

  • Page 39: Interleaved 2 Of 5

    Start Configuration 3.9 Interleaved 2 of 5 Reading OFF ((N1A)) (ON) ((N1B)) Code ID 4EH (20-7EH) ((N2A)) Checksum Verification ON ((N3B)) (OFF) ((N3A)) Check Character Transmission OFF ((N4A)) (ON) ((N4B)) Min. Length 06H (00-50H) ((N7A)) Max. Length 50H (00-50H) ((N8A)) End Configuration...
  • Page 40 Start Configuration Interleaved 2/5 Leading Digit Truncation 00H (00-50H) ((N5A)) Last Digit Truncation 00H (00-50H) ((N6A)) Insertion Code Selection 00H (00-02H) ((N9A)) End Configuration...

  • Page 41: Industrial 2 Of 5

    Start Configuration 3.10 Industrial 2 of 5 Reading ON ((O1B)) (OFF) ((O1A)) Code ID 4FH (20-7EH) ((O2A)) Checksum Verification ON ((O7B)) (OFF) ((O7A)) Check Character Transmission ON ((O8B)) (OFF) ((O8A)) Min. Length 06H (00-50H) ((O3A)) Max. Length 50H (00-50H) ((O4A)) End Configuration...
  • Page 42 Start Configuration Industrial 2 of 5 Leading Digit 00H (00-50H) ((O5A)) Last Digit Truncation 00H (00-50H) ((O6A)) Insertion Code Selection 00H (00-02H) ((O9A)) End Configuration...

  • Page 43: Matrix 2 Of 5

    Start Configuration 3.11 Matrix 2 of 5 Reading ON ((P1B)) (OFF) ((P1A)) Code ID 50H (20-7EH) ((P2A)) Checksum Verification ON ((P3B)) (OFF) ((P3A)) Check Character Transmission OFF ((P4A)) (ON) ((P4B)) Min. Length 06H (00-50H) ((P7A)) Max. Length 50H (00-50H) ((P8A)) End Configuration...
  • Page 44 Start Configuration Matrix 2of 5 Leading Digit 0H (00-50H) ((P5A)) Last Digit Truncation 00H (00-50H) ((P6A)) Insertion Code Selection 00H (00-02H) ((P9A)) End Configuration...

  • Page 45: China Post Code

    Start Configuration 3.12 China Post Code Reading ON ((Q1B)) (OFF) ((Q1A)) Code ID 51H (20-7EH) ((Q2A)) Checksum Verification ON ((Q3B)) (OFF) ((Q3A)) Check Character Transmission ON ((Q4B)) (OFF) ((Q4A)) Min. Length 06H (00-50H) ((Q7A)) Max. Length 50H (00-50H) ((Q8A)) End Configuration...
  • Page 46 Start Configuration China Post Code Leading Digit Truncation 00H (00-50H) ((Q5A)) Last Digit Truncation 00H (00-50H) ((Q6A)) Insertion Code Selection 00H (00-02H) ((Q9A)) End Configuration...

  • Page 47: Msi/Plessey

    Start Configuration 3.13 MSI/Plessey Reading ON ((R1B)) (OFF) ((R1A)) Code ID 52H (20-7EH) ((R2A)) Checksum Verification MOD 10 ((R3B)) (OFF) ((R3A)) MOD 10/10 ((R3C)) MOD 11/10 ((R3D)) Check Character Transmission OFF ((R4A)) (ON) ((R4B)) Min. length 06H (00-50H) ((R7A)) Max. Length 50H (00-50H) ((R8A)) End Configuration...
  • Page 48 Start Configuration MSI/Plessey Leading Digit Truncation 00H (00-50H) ((R5A)) Last Digit Truncation 00H (00-50H) ((R6A)) Insertion Code Selection 00H (00-02H ((R9A)) End Configuration...

  • Page 49: Code 32

    Start Configuration 3.14 Code 32 Reading ON ((S1B)) (OFF) ((S1A)) Code ID 53H (20-7EH) ((S2A)) Checksum Verification OFF ((S3A)) (ON) ((S3B)) Check Character Transmission OFF ((S4A)) (ON) ((S4B)) Leading Digit Truncation 00H (00-0AH) ((S5A)) Last Digit Truncation 00H (00-0AH) ((S6A)) Insertion Code Selection 00H (00-02H) ((S7A)) End Configuration...

  • Page 50: Code 11

    Start Configuration 3.15 Code 11 Reading ON ((T1B)) (OFF) ((T1A)) Code ID 54H (20-7EH) ((T2A)) Checksum Verification OFF ((T3A)) (ON) ((T3B)) Check Character Transmission ON ((T4B)) (OFF) ((T4A)) Min Length 06H (00-50H) ((T7A)) Max. Length 50H (00-50H) ((T8A)) End Configuration...
  • Page 51 Start Configuration Code 11 Leading Digit Truncation 00H (00-50H) ((T5A)) Last Digit Truncation 00H (00-50H) ((T6A)) Insertion Code Selection 00H (00-02H) ((T9A)) End Configuration...

  • Page 52: Rss Code (Optional)

    Start Configuration 3.16 RSS Code (Optional) RSS-14 ON ((U1A)) (OFF) ((U1B)) RSS-14 Limited ON ((U2A)) (OFF) ((U2B)) RSS-14 Expanded ON ((U3A)) (OFF) ((U3B)) RSS Code to UPC/EAN ON ((U4A)) (OFF) ((U4B)) End Configuration...

  • Page 53: Appendix A Ascii Code

    Appendix A ASCII Code End Configuration...
  • Page 54 ASCII table “ NAK % ACK SYN & ‘ SUM * < >...

  • Page 55: Appendix B Function Key Code

    Appendix B Function Key Code NULL DOWN LEFT RIGHT PAGE UP PAGE DOWN HOME ENTER INSERT DELETE...
  • Page 56 Function Key Code： Before scanning barcode, please turn on Full ASCII CODE 39. UP($A) F1($Q) F10($Z) DOWN($B) F2($R) ESC(%A) LEFT($C) HOME($K) F3($S) F11(%B) RIGHT($D) END($L) F4($T) F12(%C) PAGE UP($E) ENTER($M) F5($U) F13(%D) PAGE INSERT($N) F6($V) F14(%E) DOWN($F) DELETE($O) F7($W) BS($H) F8($X) TAB($I) F9($Y)
