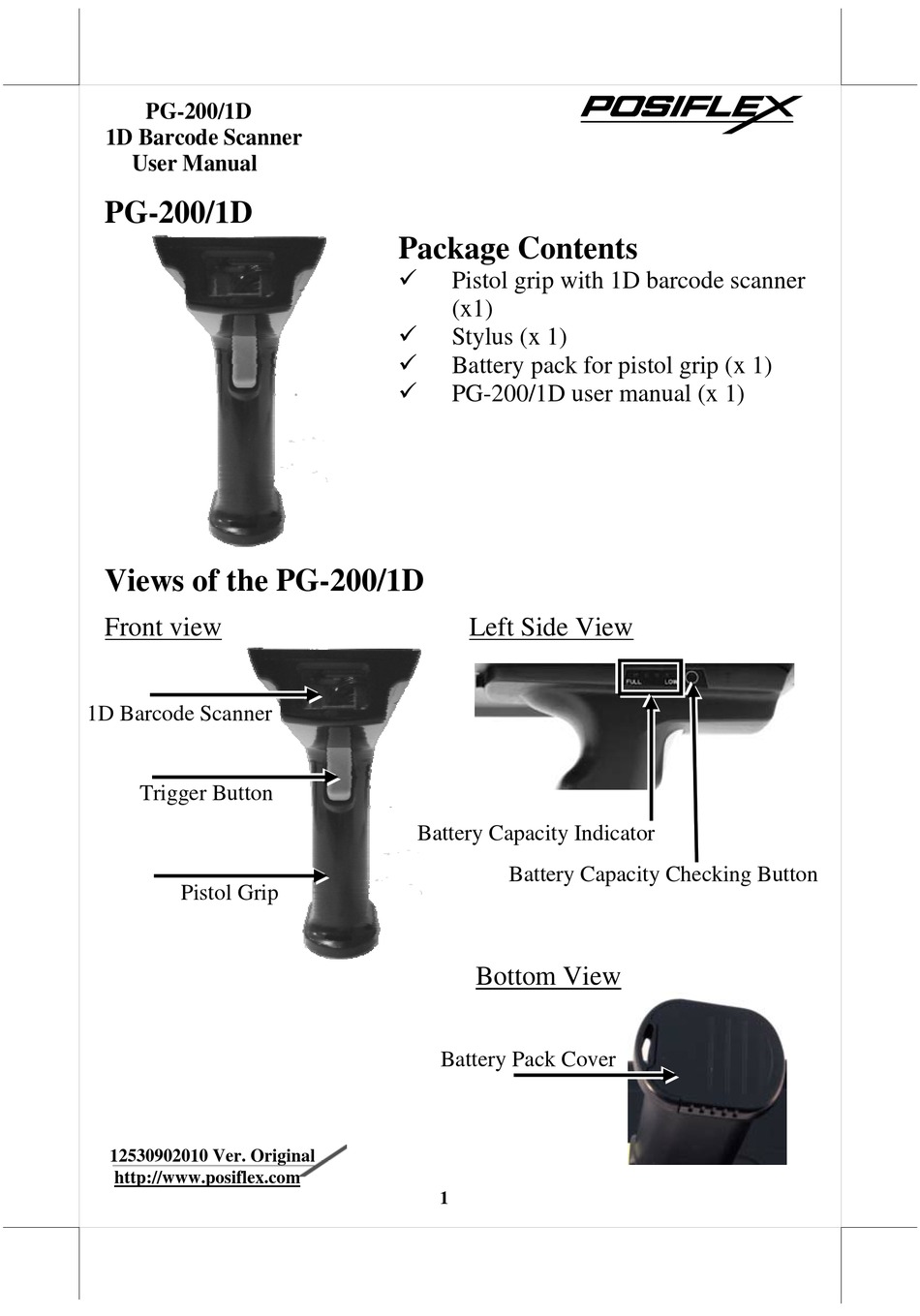

PG-200/1D
1D Barcode Scanner
User Manual
PG-200/1D
Views of the PG-200/1D
Front view
1D Barcode Scanner
Trigger Button
Pistol Grip
12530902010 Ver. Original
http://www.posiflex.com

Package Contents

Pistol grip with 1D barcode scanner
(x1)
Stylus (x 1)
Battery pack for pistol grip (x 1)
PG-200/1D user manual (x 1)
Left Side View
Battery Capacity Indicator
Battery Capacity Checking Button
Bottom View
Battery Pack Cover
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG-200/1D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX PG-200/1D

Summary of Contents for POSIFLEX PG-200/1D

  • Page 1: Package Contents

    Pistol grip with 1D barcode scanner (x1)  Stylus (x 1)  Battery pack for pistol grip (x 1)  PG-200/1D user manual (x 1) Views of the PG-200/1D Front view Left Side View 1D Barcode Scanner Trigger Button Battery Capacity Indicator...
  • Page 2 Load a Battery Pack and a stylus into the Pistol Grip A user who purchases the PG-200/1D model has a battery pack for pistol grip. Besides, the user also has a stylus that is packed in the package box. To install the battery pack and stylus, refer to the MT-4008W user manual.

  • Page 3: Resetting The Factory Defaults

    The engine projects a bright red scan beam that corresponds to the engine’s scanning field of view. The scan beam should be centered horizontally over the bar code and must highlight all the vertical bars of the bar code. It will not read if the scan beam is in any other direction.
  • Page 4 Symbologies This programming section contains the following menu selections. All Symbologies Codabar Code 39 Code 93 Interleaved 2 of 5 Matrix 2 of 5 UPC-A UPC-A/EAN-13 with Extended Coupon Code Code 128 EAN/JAN-8 Telepen Code 11 EAN/JAN-13 UPC-E0 All Symbologies If you want to decode all the symbologies allowable for your engine, scan the All Symbologies On code.

  • Page 5: Full Ascii

    Code 39 * On Full ASCII If Full ASCII Code 39 decoding is enabled, certain character pairs within the bar code symbol will be interpreted as a single character. For example, $V will be decoded as the ASCII character SYN, and /C will be decoded as the ASCII character #.
  • Page 6 Character pairs /M and /N decode as a minus sign and period respectively. Character pairs /P through /Y decode as 0 through 9. Full ASCII On * Full ASCII Off Interleaved 2 of 5 * On Code 93 * On...
  • Page 7 Matrix 2 of 5 * Off Code 11 * Off Code 128 * On GS1-128 * On...
  • Page 8 Telepen * Off UPC-A * On Convert UPC-A to EAN-13 * Transmit UPC-A as UPC-A Transmit UPC-A as EAN-13...
  • Page 9 UPC-A Addenda This selection adds 2 or 5 digits to the end of all scanned UPC-A data. Default = Off for both 2 Digit and 5 Digit Addenda. 2 Digit Addenda On * 2 Digit Addenda Off 5 Digit Addenda On * 5 Digit Addenda Off UPC-A Addenda Required When Required is scanned, the engine will only read UPC-A bar...
  • Page 10 UPC-E0 Most U.P.C. bar codes lead with the 0 number system. To read these codes, use the UPC-E0 On selection. If you need to read codes that lead with the 1 number system, use EAN/JAN-13. Default = On. * UPC-E0 On UPC-E0 Off EAN/JAN-13 * On...
  • Page 11 * Off GS1 DataBar Omnidirectional * On GS1 DataBar Limited * On GS1 DataBar Expanded * On...

  • Page 12: Data Editing

    China Post (Hong Kong 2 of 5) * Off Data Editing Prefix/Suffix Overview When a bar code is scanned, additional information is sent to the host computer along with the bar code data. This group of bar code data and additional user-defined data is called a “message string.”...
  • Page 13  Enter prefixes and suffixes in the order in which you want them to appear on the output.  When setting up for specific symbologies (as opposed to all symbologies), the specific symbology ID value counts as an added prefix or suffix character. ...
  • Page 14 Example: Add a Suffix to a specific symbology To send a CR (carriage return)Suffix for U.P.C. only: Step 1: Scan Add Suffix. Step 2: Determine the 2 digit hex value from the Symbology Chart (included in the Symbology Charts) for U.P.C. Step 3: Scan 6, 3 from the Programming Chart.
  • Page 15 To Add a Carriage Return Suffix to All Symbologies Scan the following bar code if you wish to add a carriage return suffix to all symbologies at once. This action first clears all current suffixes, and then programs a carriage return suffix for all symbologies.

  • Page 16: Symbology Charts

    Utilities Adding a Test Code I.D. Prefix to All Symbologies This selection allows you to turn on transmission of a Code I.D. before the decoded symbology. This action first clears all current prefixes and then programs a Code I.D. prefix for all symbologies. This is a temporary setting that will be removed when the unit is power cycled.
  • Page 17 Honeywell Possible Symbology modifiers TCIF Linked Code 39 (TLC39) Code 93 and 93i 0-9, A-Z, 0, 1, 3, 4 EAN-13 (including Bookland EAN) EAN-13 with Add-On EAN-13 with Extended Coupon Code EAN-8 EAN-8 with Add-On GS1 DataBar GS1 DataBar Limited GS1 DataBar Expanded GS1-128 2 of 5...

  • Page 18: Programming Chart

    Honeywell Possible Symbology modifiers UPC-A with Add-On UPC-A with Extended Coupon Code UPC-E UPC-E with Add-On UPC-E1 Add Honeywell Code ID 5C80 Add AIM Code ID 5C81 Add Backslash 5C5C Batch mode quantity Programming Chart...
  • Page 20 Save Discard Reset Note: If you make an error while scanning the letters or digits (before scanning Save), scan Discard, scan the correct letters or digits, and Save again.
