PG-200/2D
2D Image Scanner
User Manual
PG-200/2D

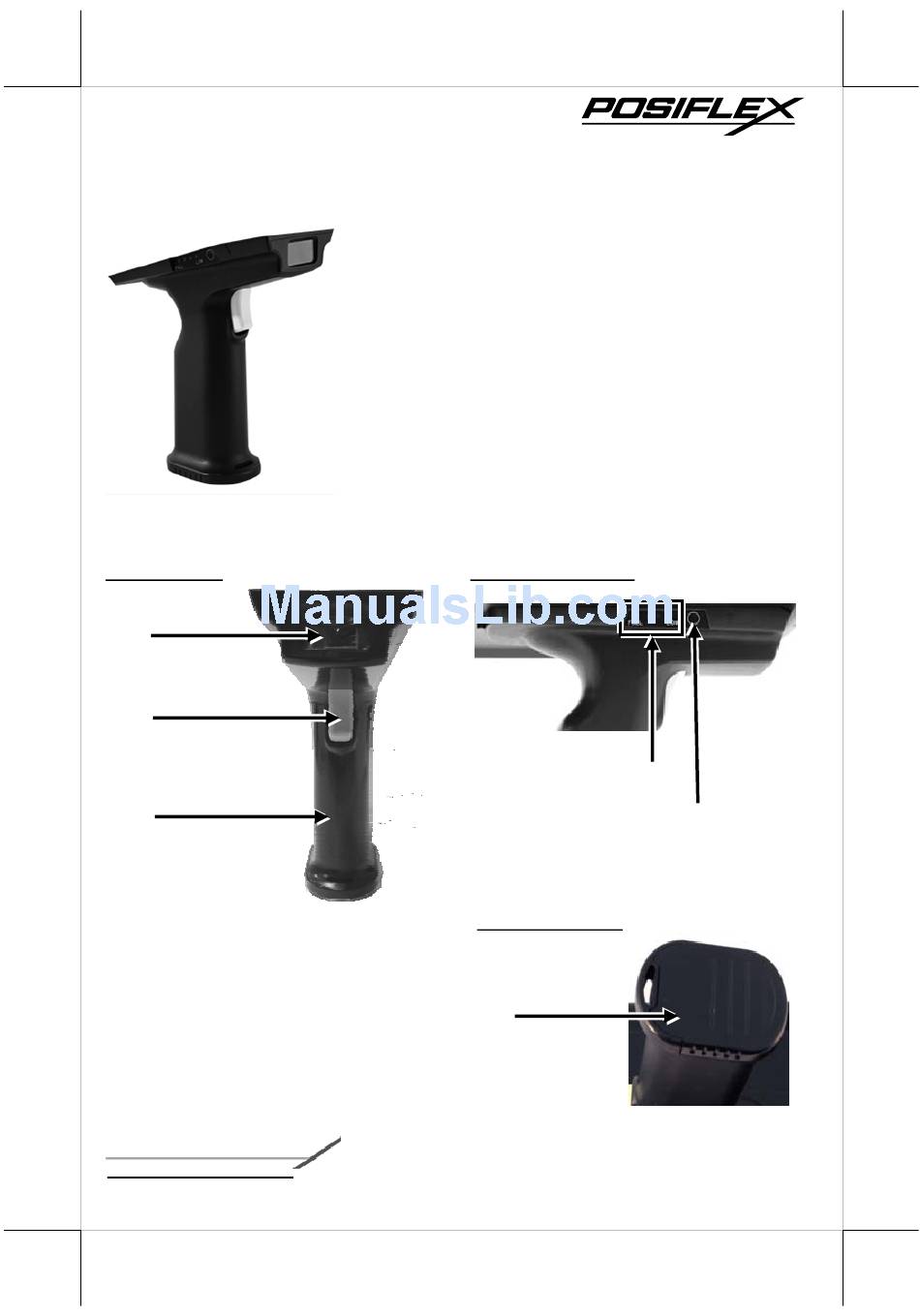

Views of the PG-200/2D
Front view
2D Image Scanner
Trigger Button
Pistol Grip
12530903010 Ver. Original
http://www.posiflex.com
Package Contents
Pistol grip with 2D image scanner (x1)
Stylus (x 1)
Battery pack for pistol grip (x 1)
PG-200/2D user manual (x 1)
Left Side View
Battery Capacity Indicator
Battery Capacity Checking Button
Bottom View
Battery Pack Cover
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG-200/2D and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX PG-200/2D

Summary of Contents for POSIFLEX PG-200/2D

  • Page 1 Pistol grip with 2D image scanner (x1)  Stylus (x 1)  Battery pack for pistol grip (x 1)  PG-200/2D user manual (x 1) Views of the PG-200/2D Front view Left Side View 2D Image Scanner Trigger Button Battery Capacity Indicator...
  • Page 2 Load a Battery Pack and a stylus into the Pistol Grip A user who purchases the PG-200/2D model has a battery pack for pistol grip. Besides, the user also has a stylus that is packed in the package box. To install the battery pack and stylus, refer to the MT-4008W user manual.

  • Page 3: Set Default Parameter

    Set Default Parameter Write to Custom Defaults - Scan this bar code to set the current decoder settings as custom defaults. Write to Custom Defaults Trigger Modes Level Mode - A trigger event activates decode processing, which continues until the trigger event ends, a valid decode, or the decode session time-out is reached.

  • Page 4: Usb Host Parameters

    USB Host Parameters USB Device Type Select the desired USB device type. Note: When changing USB Device Types, the decoder automatically resets. The decoder issues the standard startup beep sequences. < HID Keyboard Emulation > USB virtual COM port emulation (requiring driver) Simple COM Port Emulation (requiring driver)

  • Page 5: Usb Polling Interval

    USB Polling Interval This option speeds up the USB HID Keyboard Emulation Device. Scan a bar code below to set the polling interval. The polling interval determines the rate at which data can be sent between the decoder and the host computer. A lower number indicates a faster data rate.
  • Page 6 7 msec 8 msec 9 msec Symbologies The device is shipped with the settings shown in the Symbology Default Table if the default values suit requirements; programming is not necessary. There are two ways to change a parameter value:  Scan the appropriate bar codes in this guide.
  • Page 7 Parameter Default EAN-13/JAN 13 Enable Code 128 Code 128 Enable UCC/EAN-128 Enable ISBT 128 Enable Code 39 Code 39 Enable Trioptic Code 39 Disable Convert Code 39 to Code 32 (Italian Pharmacy Code) Disable Code 39 Full ASCII Conversion Disable Code 93 Code 93 Disable...
  • Page 8 Parameter Default Maxicode Enable QR Code Enable Symbology-Specific Security Levels Redundancy Level Security Level Inter character Gap Size Normal Report Version Macro PDF Macro PDF Transmit/Decode Mode Symbols Pass through Mode Transmit Macro PDF Control Header Disable Escape Characters None Flush Macro PDF Buffer Abort Macro PDF Entry UPC/EAN...
  • Page 9 Enable/Disable UPC-E1 UPC-E1 is disabled by default. To enable or disable UPC-E1, scan the appropriate bar code below. Note: UPC-E1 is not a UCC (Uniform Code Council) approved symbology. Enable UPC-E1 < Disable UPC-E1 > Enable/Disable EAN-8/JAN-8 < Enable EAN-8/JAN-8 > Disable EAN-8/JAN-8 Enable/Disable EAN-13/JAN-13 <...
  • Page 10 < Do Not Convert UPC-E to UPC-A > (Disable) Convert UPC-E1 to UPC-A Enable this to convert UPC-E1 decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). When disabled, UPC-E1 decoded data is transmitted as UPC-E1 data, without conversion.
  • Page 11 Code 39 Enable/Disable Code 39 < Enable Code 39 > Disable Code 39 Convert Code 39 to Code 32 Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable converting Code 39 to Code 32.
  • Page 12 Code 93 Enable/Disable Code 93 Enable Code 93 < Disable Code 93 > Code 11 Enable Code 11 < Disable Code 11 > Interleaved 2 of 5 (ITF) Enable/Disable Interleaved 2 of 5 To enable or disable Interleaved 2 of 5, scan the appropriate bar code below, and select an Interleaved 2 of 5 length from the following pages.
  • Page 13 < Disable Discrete 2 of 5 > Codabar Enable/Disable Codabar Enable Codabar < Disable Codabar > Enable/Disable MSI Enable MSI < Disable MSI > GS1 DataBar <Enable GS1 DataBar> Disable GS1 DataBar GS1 DataBar Limited Enable GS1 DataBar Limited...
  • Page 14 <Disable GS1 DataBar Limited> 2D Symbologies PDF417 Enable/Disable PDF417 < Enable PDF417 > Disable PDF417 MicroPDF417 Enable/Disable MicroPDF417 Enable MicroPDF417 < Disable MicroPDF417 > Data Matrix < Enable Data Matrix > Disable Data Matrix Maxicode < Enable Maxicode >...

  • Page 15: Miscellaneous Scanner Options

    Disable Maxicode QR Code < Enable QR Code > Disable QR Code Miscellaneous Scanner Options Miscellaneous Scanner Parameters TRANSMIT CODE ID A Code ID character identifies the code type of a scanned bar code. This is useful when the decoder is decoding more than one code type. In addition to any single character prefix already selected, the Code ID character is inserted between the prefix and the decoded symbol.
  • Page 16 Prefix/Suffix Values A prefix and/or one or two suffixes can be appended to scan data for use in data editing. To set a value for a prefix or suffix, scan a prefix or suffix bar code below, then scan a four-digit number (i.e., four barcodes, Numeric Bar Codes) that corresponds to that value.
  • Page 17 <PREFIX> <DATA > <PREFIX> <DATA> <SUFFIX 1> <PREFIX> <DATA> <SUFFIX 2> <PREFIX> <DATA> <SUFFIX 1> <SUFFIX 2> Default Code Identifiers Default Code Characters Code Character Code Type UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13 Code 39, Code 32 Codabar Code 128 Code 93 Interleaved 2 of 5 Discrete 2 of 5, or Discrete 2 of 5 IATA Code 11...

  • Page 18: Aim Code Identifiers

    Code Character Code Type Trioptic Code 39 Coupon Code RSS Family UCC Composite, TLC 39 PDF417, Macro PDF417, Micro PDF417 Data Matrix QR Code Maxicode US Postnet US Planet Japan Postal UK Postal Dutch Postal Australian Postal UK Postal AIM Code Identifiers Each AIM Code Identifier contains the three-character string] cm where: ] = Flag Character (ASCII 93) c = Code Character...

  • Page 19: Numeric Bar Codes

    Code 128, Coupon (Code 128 portion) Data Matrix UPC/EAN, Coupon (UPC portion) RSS Family Codabar Code 93 Code 11 Interleaved 2 of 5 PDF417, Macro PDF417, Micro PDF417 QR Code Discrete 2 of 5, IATA 2 of 5 Maxicode Bookland EAN, Trioptic Code 39, US Postnet, US Planet, UK Postal, Japan Postal, Australian Postal, Dutch Postal Numeric Bar Codes...
  • Page 20 Cancel To correct an error or change a selection, scan the bar code below. Cancel...
