POSIFLEX CD-3603U Quick Setup Manual

POSIFLEX CD-3603U Quick Setup Manual

2d image scanner
Hide thumbs

Advertisement

Table of Contents

CD-3603U
2D Image Scanner
Quick Setup Guide
Package Contents
CD-3603U
2D image scanner
USB cable
Quick setup guide

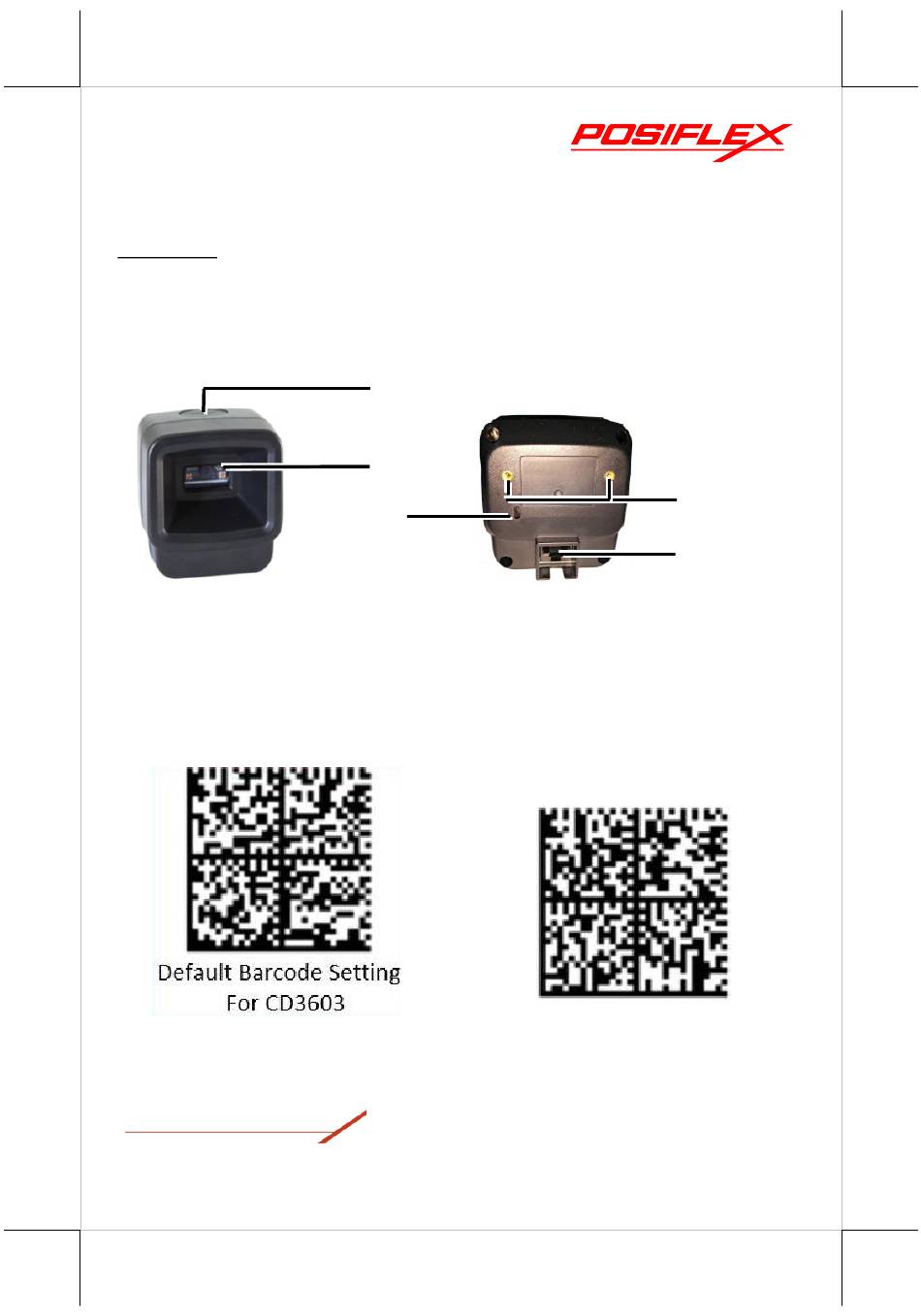

Parts of the 2D Image Scanner
Trigger Button
Default Settings
Scanning the following barcode can restore the engine to the factory defaults.
If your CD-3603U is planned to be installed into our Posiflex kiosk model,
please scan the barcode on the right side.
CD-3603U Ver. A0
1
Scan Window
w/ Object Detector
Beeper Hole
1
Mounting Screw Hole
Interface Cable Connector
Restore Kiosk Trigger Default
(For Kiosk Model)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-3603U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX CD-3603U

Summary of Contents for POSIFLEX CD-3603U

  • Page 1 Interface Cable Connector Default Settings Scanning the following barcode can restore the engine to the factory defaults. If your CD-3603U is planned to be installed into our Posiflex kiosk model, please scan the barcode on the right side. Restore Kiosk Trigger Default (For Kiosk Model) CD-3603U Ver.

  • Page 2: Scanner Maintenance

    Scanner Maintenance The scanner is designed for long-term trouble-free operation and rarely requires any maintenance. Only an occasional cleaning of the scanner window is necessary in order to remove dirt and fingerprints. Wipe the scan window with a soft lint-free cloth and a non-abrasive cleaner to avoid the scan window from being scratched and damaged.

  • Page 3: Programming Codes

    Problem Diagnostic Tips The scanner cannot send the data to the POS system. Make sure that the scanner is installed well and your host POS system is ready to receive data. A barcode is read by the scanner The communication settings of the system port but not accepted by the POS and the scanner do not match.
  • Page 4 NOTE: When changing USB Device Types, the engine resets and issues the standard startup beep sequences. NOTE: Before selecting USB CDC Host (Virtual COM), install the USB CDC driver located at Posiflex Global Website. USB Keyboard HID USB CDC Host...
  • Page 5  Presentation (Blink): The engine activates decode processing when it detects a bar code in its field of view. After a period of non-use, the LEDs turn off until the engine senses motion.  Host: A host command issues the decode signal. The decoder interprets an actual trigger pull as a Level triggering option.
  • Page 6 Illumination Selecting Enable Decoding Illumination causes the engine to turn on illumination every image capture to aid decoding. Select Disable Decoding Illumination to prevent the engine from using decoding illumination. Enabling illumination usually results in superior images. The effectiveness of illumination decreases as the distance to the target increases.
  • Page 7 Enable Decode Aiming Pattern on PDF Beep After Good Decode Scan one of the following bar codes to select whether or not the engine beeps after a good decode. If you select Disable Beep After Good Decode, the beeper still operates during parameter menu scanning a indicate error conditions.
  • Page 8 *Enable UPC-A Disable UPC-A *Enable UPC-E Disable UPC-E Enable UPC-E1 *Disable UPC-E1...
  • Page 9 *Enable EAN-8/JAN-8 Disable EAN-8/JAN-8 *Enable EAN-13/JAN-13 Disable EAN-13/JAN-13 Enable Bookland EAN *Disable Bookland EAN...
  • Page 10 Enable ISSN EAN *Disable ISSN EAN *Enable Code 128 Disable Code 128 *Enable GS1-128 Disable GS1-128...
  • Page 11 *Enable ISBT 128 Disable ISBT 128 *Enable Code 39 Disable Code 39 *Enable Code 93 Disable Code 93 Enable Code 11 *Disable Code 11...
  • Page 12 Enable Interleaved 2 of 5 *Disable Interleaved 2 of 5 Enable Discrete 2 of 5 *Disable Discrete 2 of 5 *Enable Codabar Disable Codabar Enable MSI *Disable MSI...
  • Page 13 Enable Chinese 2 of 5 *Disable Chinese 2 of 5 Enable Matrix 2 of 5 *Disable Matrix 2 of 5 Enable Korean 3 of 5 *Disable Korean 3 of 5 *Enable GS1 DataBar Omnidirectional Disable GS1 DataBar Omnidirectional...
  • Page 14 Enable CC-C *Disable CC-C Enable CC-A/B *Disable CC-A/B Enable TLC39 *Disable TLC39 *Enable PDF417 Disable PDF417...
  • Page 15 Enable MicroPDF417 *Disable MicroPDF417 *Enable Data Matrix Disable Data Matrix Enable GS1 Data Matrix *Disable GS1 Data Matrix Enable Maxicode *Disable Maxicode...
  • Page 16 *Enable QR Code Disable QR Code *Enable GS1 QR Disable GS1 QR *Enable MicroQR Disable MicroQR *Enable Aztec Disable Aztec...
  • Page 17 Enable Han Xin *Disable Han Xin Enable US Postnet *Disable US Postnet Enable US Planet *Disable US Planet Enable UK Postal *Disable UK Postal...
  • Page 18 Enable Japan Postal *Disable Japan Postal Enable Australia Post *Disable Australia Post Enable Netherlands KIX Code *Disable Netherlands KIX Code Enable USP4 4CB/One Code/Intelligent Mail...

  • Page 19: Specifications

    *Disable USPS 4CB/One Code/ Intelligent Mail Enable UPU FICS Postal *Disable UPU FICS Postal *Disable Mailmark Enable Mailmark Specifications Item Characteristics Image Resolution 1280 x 960 pixels, rolling shutter Horizontal: 44.5˚ , Vertical: 33.5˚ Field of View (FOV) Roll: 360˚ Scan Angle Pitch: ±60˚...

  • Page 20: Outline Dimension

    0~107,639 lux (direct sunlight) Outline Dimension ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-3603U, please check this model from Posiflex Global Website. (https://download.posiflex.com/en- global/Download/index/manualUinstall_guide/Barcode-Scanner/CD-3603U). Or download the advanced manual for more detailed settings.
