CD-3200U/R & CD-3201U/R
2D Image Scanner
Quick Setup Guide
18160900030 Ver. B0
http://www.posiflex.com
Package Contents
CD-3200U/3201U
CD-3200U/3201U 2D image scanner
ST-8000 scanner holder stand (Optional)
USB cable
Quick setup guide for CD-3200U/R
CD-3200R/3201R
CD-3200R/3201R 2D image scanner
ST-8000 scanner holder stand (Optional)
RS-232 cable
Quick setup guide for CD-3200U/R
1
Advertisement
Table of Contents
Related Manuals for POSIFLEX CD-3200U
Summary of Contents for POSIFLEX CD-3200U
-
Page 1: Package Contents

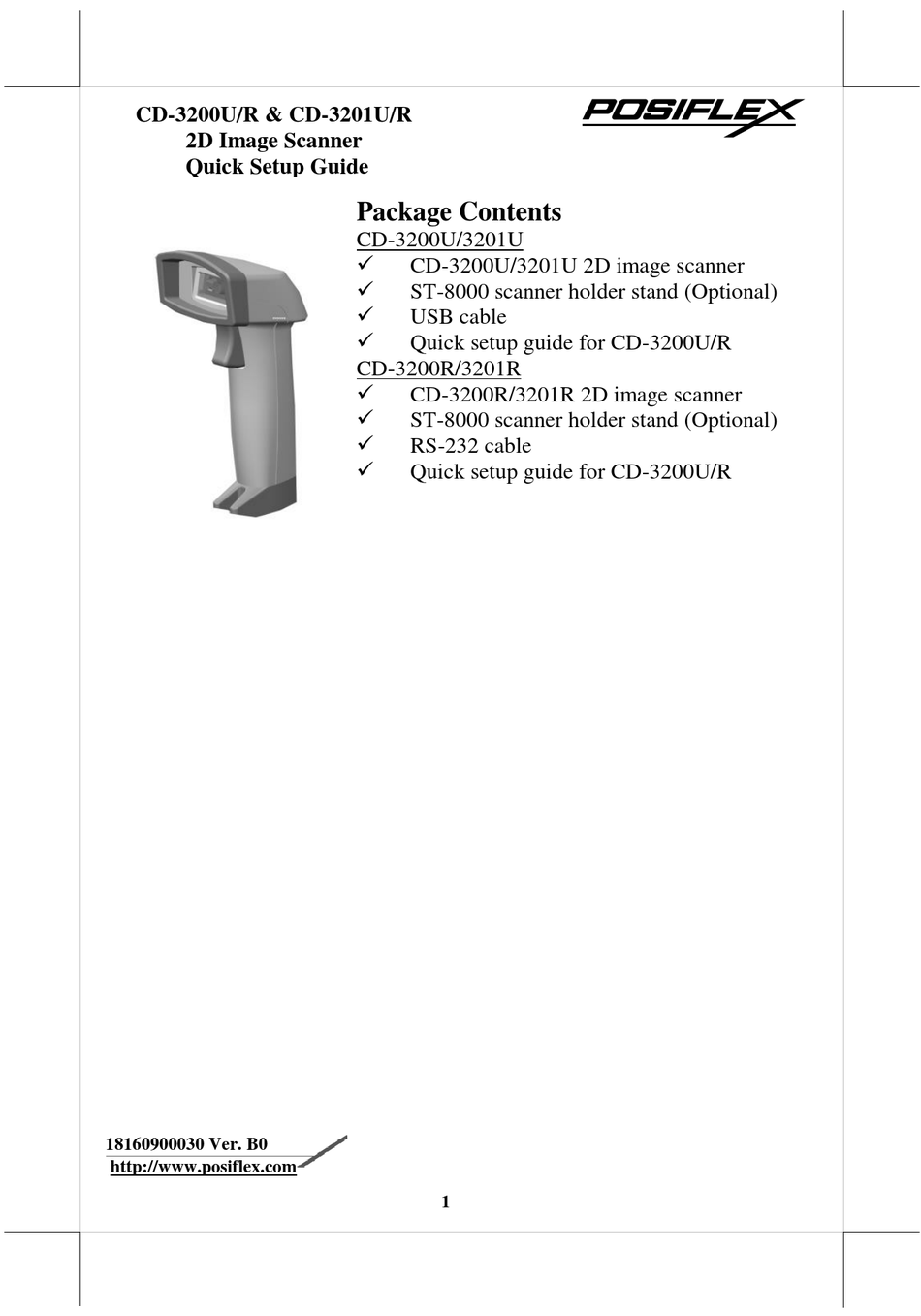

Package Contents CD-3200U/3201U CD-3200U/3201U 2D image scanner ST-8000 scanner holder stand (Optional) USB cable Quick setup guide for CD-3200U/R CD-3200R/3201R CD-3200R/3201R 2D image scanner ST-8000 scanner holder stand (Optional) RS-232 cable Quick setup guide for CD-3200U/R 18160900030 Ver. -
Page 2: Product Overview

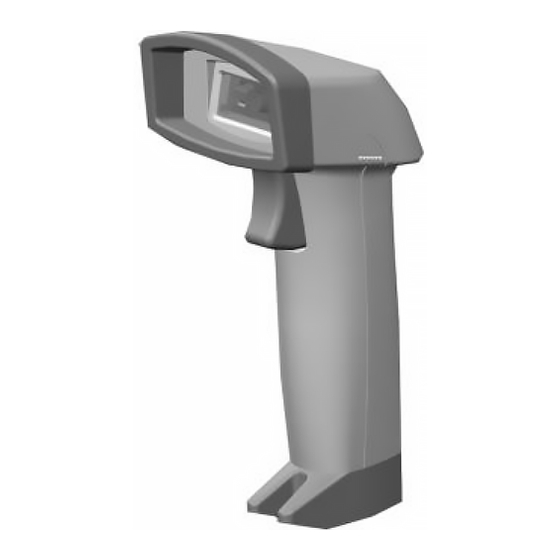

Product Overview Front View Rear View Scan Status LED window Trigger Button Scanner Maintenance The scanner is designed for long-term trouble-free operation and rarely requires any maintenance. Only an occasional cleaning of the scanner window is necessary in order to remove dirt and fingerprints. Wipe the scan window with a soft lint-free cloth and a non-abrasive cleaner to avoid the scan window from being scratched and damaged. -
Page 3: Troubleshooting
Troubleshooting This section contains information about how to solve problems that you may encounter when operating the scanner. If a trouble occurs, please refer to the following diagnostic tips as a mean to solve the trouble. However, before referring to the tips, make sure that the scanner is installed well. If the problem remains, contact your dealer. -
Page 4: Programming Codes
Two operational modes, Auto Trigger and Manual Trigger, are provided to help you manage your daily activities more efficiently via CD-3200 series scanners. By default, both of CD-3200U/R and CD-3201U/R are set to Manual Trigger. While scanning the setup barcode labels provided in the quick guide, you need to pull the trigger to initiate the decoding process. - Page 5 USB-VCP Defaults Barcode Setting To restore the default factory settings, please select one of three barcodes listed below. RS232 USB-HID USB-VCP...
-
Page 6: Auto Trigger Detection Mode
However, please be reminded that Detection Mode only works under the condition that Trigger mode of CD-3200U/R and CD-3201U/R is set to Auto Trigger. Regarding each type of available detection modes, the following are related description for your reference. -
Page 7: Enabling Of Readable Codes
No illumination detection A target code is detected without illumination light. The power consumption can be reduced, but the response of detection will also be reduced. Ambient light is used for detection in this mode, so this cannot be used in a dark place while it can be used in a lighted environment. - Page 8 Enable Interleaved 2of5 Enable Chinese Post Matrix 2of5 Enable POSTNET Enable MSI/Plessey Enable UK/Plessey Enable Code 128 Enable GS1-Databar Enable GS1-Databar Limited Enable GS1-Databar Expanded Enable QR Code Enable PDF417...
-
Page 9: Setting Code Specific Options
Setting code specific options UPC-A, No leading zero, transmit CD UPC-A, No leading zero, not transmit CD UPC-A, Leading zero, transmit CD UPC-A, Leading zero, not transmit CD Options for UPC-E UPC-E, No leading digit, transmit CD UPC-E, No leading digit, not transmit CD UPC-E, Leading digit, transmit CD UPC-E, Leading digit, not transmit CD... -
Page 10: Case Conversion
Options for EAN-13 and EAN-8 EAN-13 not transmit CD EAN-13 transmit CD EAN-8 not transmit CD EAN-8 transmit CD Disable ISBN translation Enable ISBN translation Case conversion No case conversion Convert to upper case Convert to lower case... -
Page 11: Floodlight And Aiming Options
Floodlight and aiming options Disable floodlight Enable floodlight Alternating floodlight Buzzer settings Disable buzzer Enable buzzer Single tone buzzer High - low buzzer Low - high buzzer Buzzer duration 200 msec... - Page 12 Buzzer duration 400 msec Buzzer loudness: Maximum Buzzer loudness: Loud Buzzer loudness: Normal Buzzer loudness: Minimum Buzzer before transmission Buzzer after transmission Disable startup buzzer Enable startup buzzer...
-
Page 13: Baud Rate Settings
Baud rate settings 9600 baud 19200 baud 38400 baud 57600 baud Data, parity and stop bits 7 data bits 8 data bits No parity Even parity Odd parity 1 stop bit... - Page 14 2 stop bits Handshaking barcode setting No handshake Busy/ready XON/XOFF ACK/NAK Flow Control time out 200ms Intercharacter delay for RS232 No delay 20 ms delay 50 ms delay 100 ms delay...
- Page 15 Keyboard wedge/USB options With keyboard Without keyboard Keyboard language German French Dutch Japanese Special options Do not use numpad Use numpad...
-
Page 16: Intercharacter Delay For Wedges/Usb
Auto numlock mode No CAPSLOCK mode CAPSLOCK mode Auto CAPSLOCK mode Intercharacter delay for wedges/USB No delay Delay = 1 Delay = 3 Delay = 5 Delay = 7 Delay = 9... -
Page 17: Specifications
Specifications CD-3200U/R Item Characteristics Scan method CMOS area sensor (black and white) Number of effective pixel (H) x (V) 752 x 480 dot Image capture speed (*1) Frame rate 60 fps Focal distance From the front edge of scan 130 mm... - Page 18 CD-3201U/R Item Characteristics Scan method CMOS area sensor Global shutter (black and white) Number of effective pixel (H) x (V) 640 x 480 dot Image capture speed (*1) Frame rate 100 fps Focal distance From the front edge of scan 120 mm engine Depth of field (mm)
- Page 19 <MEMO>...
- Page 20 <MEMO>...
