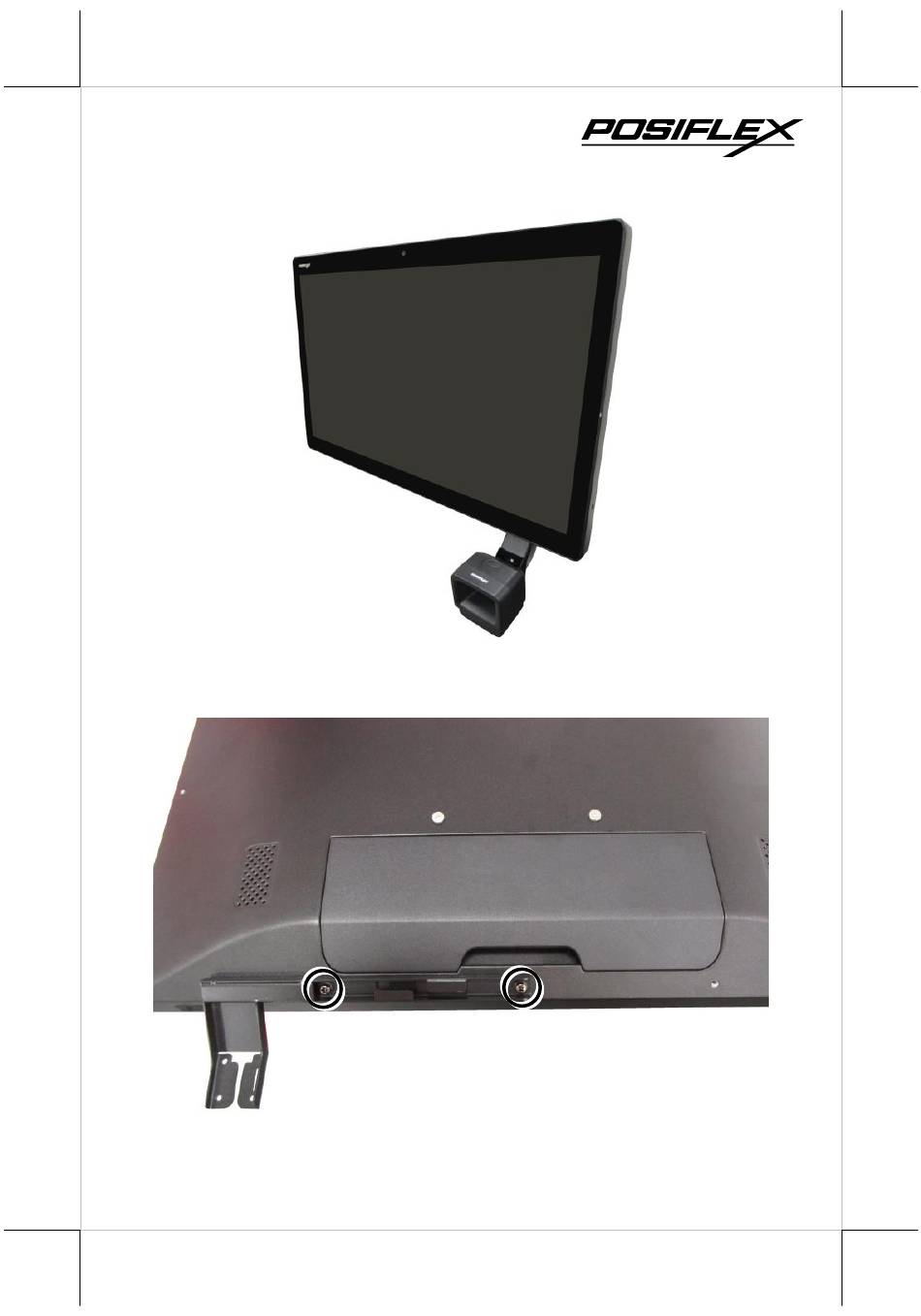

- Page 1 CD for KDS Quick Installation Guide Installation for Landscape Mode Turn the rear side of KDS series POS terminal face to you, and then fix the L-shaped bracket to the rear cover with two M4 screws.
- Page 2 Hook the CD series scanner to the L-shaped bracket like the below pictures. The Hook...
- Page 3 Fix the hinge bracket to the L-shaped bracket with two M3 screws. Remove the cable cover.
- Page 4 Connect the RJ45 end of the cable to the CD series scanner, and connect the USB end of the cable to the POS terminal. Route the cable into the L- shaped bracket like the below picture. Close the cable cover.
- Page 5 You can adjust the angle of the scanner as you need. Installation for Portrait Mode Turn the rear side of KDS series POS terminal face to you, and then fix the L-shaped bracket to the rear cover with two M4 screws.
- Page 6 L-shaped bracket with two M3 screws. Hook Note: Please note that the direction in which the CD series scanner is hung on the L-shaped bracket is different from the direction in Landscape mode on the P.2!
- Page 7 Connect the RJ45 end of the cable to the CD series scanner, and connect the USB end of the cable to the POS terminal. Route the cable into the L- shaped bracket like the below picture. Close the cable cover.
- Page 8 You can adjust the angle of the scanner as you need. ※ The product information and specifications are subject to change without prior notice.
