Cypress Semiconductor Perform CY14B102L Manual

2 mbit (256k x 8/128k x 16) nvsram

Advertisement

Quick Links

Features
20 ns, 25 ns, and 45 ns Access Times
Internally organized as 256K x 8 (CY14B102L) or 128K x 16
(CY14B102N)
Hands off Automatic STORE on power down with only a small
Capacitor
®
STORE to QuantumTrap
nonvolatile elements initiated by
software, device pin, or AutoStore
RECALL to SRAM initiated by software or power up
Infinite Read, Write, and Recall Cycles
200,000 STORE cycles to QuantumTrap
20 year data retention
Single 3V +20% to -10% operation
Commercial, Industrial and Automotive Temperatures
48-ball FBGA and 44/54-pin TSOP - II packages
Pb-free and RoHS compliance

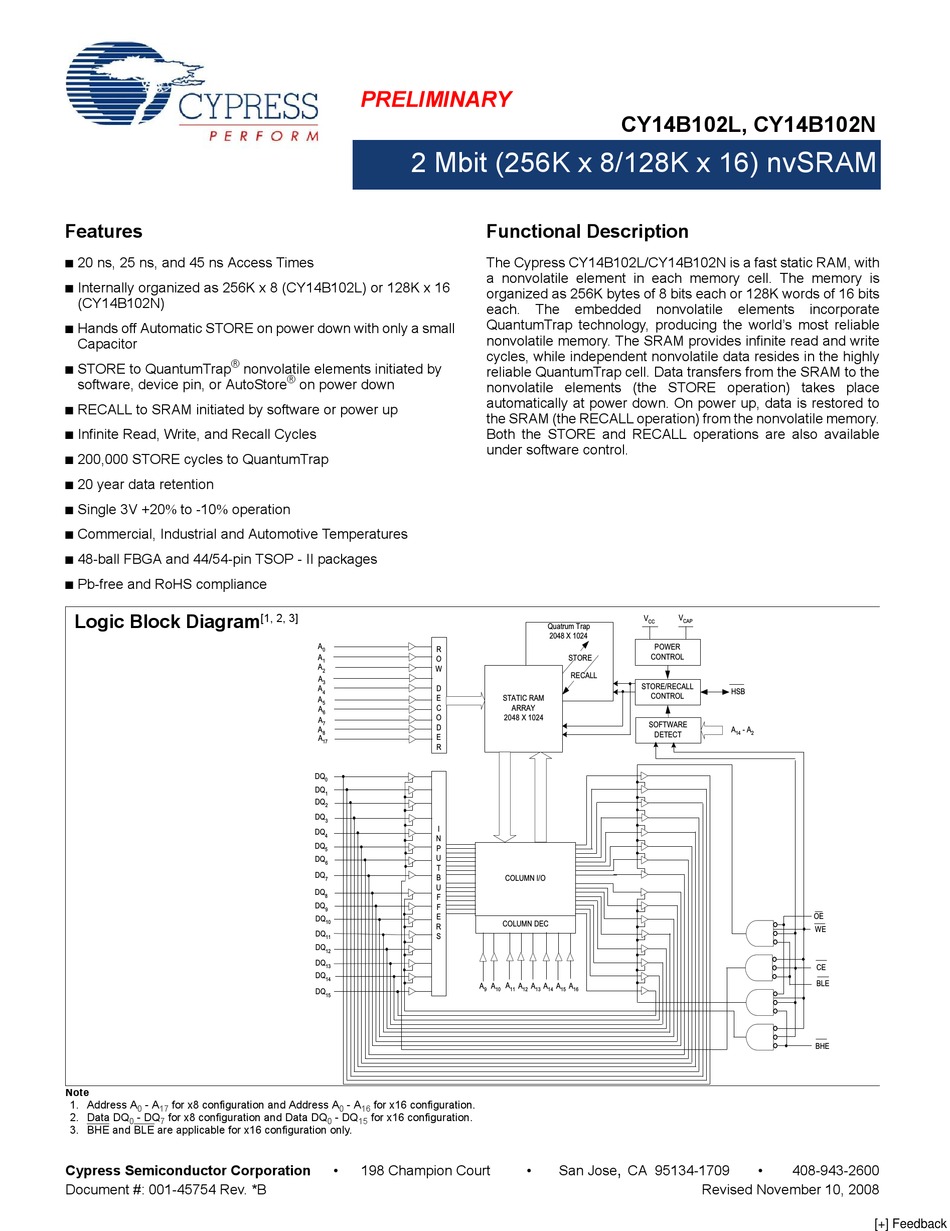

Logic Block Diagram
Note
1. Address A
- A
for x8 configuration and Address A
0
17
2. Data DQ
- DQ
for x8 configuration and Data DQ
0
7
3. BHE and BLE are applicable for x16 configuration only.
Cypress Semiconductor Corporation
Document #: 001-45754 Rev. *B
PRELIMINARY
2 Mbit (256K x 8/128K x 16) nvSRAM
®
on power down
[1, 2, 3]
- A
for x16 configuration.
0
16
- DQ
for x16 configuration.
0
15
198 Champion Court
CY14B102L, CY14B102N

Functional Description

The Cypress CY14B102L/CY14B102N is a fast static RAM, with
a nonvolatile element in each memory cell. The memory is
organized as 256K bytes of 8 bits each or 128K words of 16 bits
each.
The
embedded
nonvolatile
QuantumTrap technology, producing the world's most reliable
nonvolatile memory. The SRAM provides infinite read and write
cycles, while independent nonvolatile data resides in the highly
reliable QuantumTrap cell. Data transfers from the SRAM to the
nonvolatile elements (the STORE operation) takes place
automatically at power down. On power up, data is restored to
the SRAM (the RECALL operation) from the nonvolatile memory.
Both the STORE and RECALL operations are also available
under software control.
,
San Jose
CA 95134-1709
elements
incorporate
408-943-2600
Revised November 10, 2008
[+] Feedback

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Perform CY14B102L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cypress Semiconductor Perform CY14B102L

  • Page 1: Functional Description

    Features 20 ns, 25 ns, and 45 ns Access Times ■ Internally organized as 256K x 8 (CY14B102L) or 128K x 16 ■ (CY14B102N) Hands off Automatic STORE on power down with only a small ■ Capacitor ® STORE to QuantumTrap nonvolatile elements initiated by ■...
  • Page 2 Pinouts 48-FBGA (x8) Top View (not to scale) 44-TSOP II (x8) (x8) (Not to Scale) Notes 4. Address expansion for 4 Mbit. NC pin not connected to die. 5. Address expansion for 8 Mbit. NC pin not connected to die. 6.
  • Page 3: Pin Definitions

    Pinouts (continued) Pin Definitions Pin Name IO Type – A Input Address Inputs Used to Select one of the 262,144 bytes of the nvSRAM for x8 Configuration. – A Address Inputs Used to Select one of the 131,072 words of the nvSRAM for x16 Configuration. –...
  • Page 4: Device Operation

    Device Operation The CY14B102L/CY14B102N nvSRAM is made up of two functional components paired in the same physical cell. They are an SRAM memory cell and a nonvolatile QuantumTrap cell. The SRAM memory cell operates as a standard fast static RAM. Data in the SRAM is transferred to the nonvolatile cell (the STORE operation), or from the nonvolatile cell to the SRAM (the RECALL operation).
  • Page 5 completion STORE CY14B102L/CY14B102N remains disabled until the HSB pin returns HIGH. Leave the HSB unconnected if it is not used. Hardware RECALL (Power Up) During power after < V ), an internal RECALL request is latched. When SWITCH again exceeds the sense voltage of V cycle is automatically initiated and takes t During this time, HSB will be driven LOW by the HSB driver.
  • Page 6: Data Protection

    Table 1. Mode Selection (continued) OE, BHE, BLE Preventing AutoStore The AutoStore function is disabled by initiating an AutoStore disable sequence. A sequence of read operations is performed in a manner similar to the software STORE initiation. To initiate the AutoStore disable sequence, the following sequence of CE controlled read operations must be performed: 1.
  • Page 7: Maximum Ratings

    Maximum Ratings Exceeding maximum ratings may impair the useful life of the device. These user guidelines are not tested. Storage Temperature ... –65°C to +150°C Maximum Accumulated Storage Time ...At 150°C Ambient Temperature...1000h ...At 85°C Ambient Temperature... 20 Years Ambient Temperature with Power Applied ...
  • Page 8: Thermal Resistance

    Data Retention and Endurance Parameter DATA Data Retention Nonvolatile STORE Operations Capacitance In the following table, the capacitance parameters are listed. Parameter Input Capacitance Output Capacitance Thermal Resistance In the following table, the thermal resistance parameters are listed. Parameter Description Θ...
  • Page 9: Switching Waveforms

    AC Switching Characteristics Parameters Cypress Parameters Parameters SRAM Read Cycle Chip Enable Access Time [15] Read Cycle Time [16] Address Access Time Output Enable to Data Valid [16] Output Hold After Address Change [17] Chip Enable to Output Active LZCE [17] Chip Disable to Output Inactive HZCE...
  • Page 10 PRELIMINARY CY14B102L, CY14B102N [3, 15, 19] Figure 7. SRAM Read Cycle #2: CE and OE Controlled [3, 18, 19, 20] Figure 8. SRAM Write Cycle #1: WE Controlled Notes 20. CE or WE must be >V during address transitions. Document #: 001-45754 Rev. *B Page 10 of 24 [+] Feedback...
  • Page 11 PRELIMINARY CY14B102L, CY14B102N [3, 18, 19, 20] Figure 9. SRAM Write Cycle #2: CE Controlled [3, 18, 19, 20] Figure 10. SRAM Write Cycle #3: BHE and BLE Controlled Document #: 001-45754 Rev. *B Page 11 of 24 [+] Feedback...
  • Page 12 AutoStore/Power Up RECALL Parameters Description [21] Power Up RECALL Duration HRECALL [22] STORE Cycle Duration STORE [23] Time Allowed to Complete SRAM Cycle DELAY Low Voltage Trigger Level SWITCH VCC Rise Time VCCRISE [14] HSB Output Driver Disable Voltage HDIS HSB To Output Active Time LZHSB HSB High Active Time...
  • Page 13 Software Controlled STORE/RECALL Cycle In the following table, the software controlled STORE/RECALL cycle parameters are listed. Parameters Description STORE/RECALL Initiation Cycle Time Address Setup Time Clock Pulse Width Address Hold Time RECALL Duration RECALL Switching Waveforms Figure 12. CE and OE Controlled Software STORE/RECALL Cycle Notes 26.
  • Page 14 Hardware STORE Cycle Parameters Description HSB To Output Active Time when write latch not set DHSB Hardware STORE Pulse Width PHSB [28, 29] Soft Sequence Processing Time Switching Waveforms Notes 28. This is the amount of time it takes to take action on a soft sequence command. Vcc power must remain HIGH to effectively register command. 29.
  • Page 15 Truth Table For SRAM Operations HSB should remain HIGH for SRAM Operations. For x8 Configuration High Z Data Out (DQ High Z Data in (DQ For x16 Configuration Document #: 001-45754 Rev. *B PRELIMINARY Inputs/Outputs Deselect/Power down –DQ Read Output Disabled –DQ Write Inputs/Outputs...
  • Page 16: Ordering Information

    Ordering Information Speed Ordering Code (ns) CY14B102L-ZS20XCT CY14B102L-ZS20XIT CY14B102L-ZS20XI CY14B102L-ZS20XAT CY14B102L-BA20XCT CY14B102L-BA20XIT CY14B102L-BA20XI CY14B102L-BA20XAT CY14B102L-ZSP20XCT CY14B102L-ZSP20XIT CY14B102L-ZSP20XI CY14B102L-ZSP20XAT CY14B102N-ZS20XCT CY14B102N-ZS20XIT CY14B102N-ZS20XI CY14B102N-ZS20XAT CY14B102N-BA20XCT CY14B102N-BA20XIT CY14B102N-BA20XI CY14B102N-BA20XAT CY14B102N-ZSP20XCT CY14B102N-ZSP20XIT CY14B102N-ZSP20XI CY14B102N-ZSP20XAT Document #: 001-45754 Rev. *B PRELIMINARY Package Package Type Diagram 51-85087 44-pin TSOP II 51-85087...
  • Page 17 Ordering Information (continued) Speed Ordering Code (ns) CY14B102L-ZS25XCT CY14B102L-ZS25XIT CY14B102L-ZS25XI CY14B102L-ZS25XAT CY14B102N-BA25XCT CY14B102L-BA25XIT CY14B102L-BA25XI CY14B102N-BA25XAT CY14B102L-ZSP25XCT CY14B102L-ZSP25XIT CY14B102L-ZSP25XI CY14B102L-ZSP25XAT CY14B102N-ZS25XCT CY14B102N-ZS25XIT CY14B102N-ZS25XI CY14B102N-ZS25XAT CY14B102N-BA25XCT CY14B102N-BA25XIT CY14B102N-BA25XI CY14B102N-BA25XAT CY14B102N-ZSP25XCT CY14B102N-ZSP25XIT CY14B102N-ZSP25XI CY14B102N-ZSP25XAT Document #: 001-45754 Rev. *B PRELIMINARY Package Package Type Diagram 51-85087 44-pin TSOP II...
  • Page 18 Ordering Information (continued) Speed Ordering Code (ns) CY14B102L-ZS45XCT CY14B102L-ZS45XIT CY14B102L-ZS45XI CY14B102L-ZS45XAT CY14B102L-BA45XCT CY14B102L-BA45XIT CY14B102L-BA45XI CY14B102L-BA45XAT CY14B102L-ZSP45XCT CY14B102L-ZSP45XIT CY14B102L-ZSP45XI CY14B102L-ZSP45XAT CY14B102N-ZS45XCT CY14B102N-ZS45XIT CY14B102N-ZS45XI CY14B102N-ZS45XAT CY14B102N-BA45XCT CY14B102N-BA45XIT CY14B102N-BA45XI CY14B102N-BA45XAT CY14B102N-ZSP45XCT CY14B102N-ZSP45XIT CY14B102N-ZSP45XI CY14B102N-ZSP45XAT All parts are Pb-free. The above table contains Preliminary information. Please contact your local Cypress sales representative for availability of these parts. Document #: 001-45754 Rev.
  • Page 19: Part Numbering Nomenclature

    Part Numbering Nomenclature CY 14 B 102 L - ZS P 20 X C T Pb-Free P - 54 Pin Blank - 44 Pin NVSRAM 14 - Auto Store + Software Store + Hardware Store Cypress Document #: 001-45754 Rev. *B PRELIMINARY CY14B102L, CY14B102N Option:...
  • Page 20: Package Diagrams

    Package Diagrams TOP VIEW 0.400(0.016) 0.800 BSC 0.300 (0.012) (0.0315) 18.517 (0.729) 18.313 (0.721) Document #: 001-45754 Rev. *B PRELIMINARY Figure 16. 44-Pin TSOP II (51-85087) PIN 1 I.D. BASE PLANE 0°-5° 0.10 (.004) 0.597 (0.0235) 0.406 (0.0160) SEATING PLANE CY14B102L, CY14B102N DIMENSION IN MM (INCH) MIN.
  • Page 21 Package Diagrams (continued) Figure 17. 48-Ball FBGA - 6 mm x 10 mm x 1.2 mm (51-85128) TOP VIEW A1 CORNER 6.00±0.10 SEATING PLANE Document #: 001-45754 Rev. *B PRELIMINARY CY14B102L, CY14B102N BOTTOM VIEW A1 CORNER Ø0.05 M C Ø0.25 M C A B Ø0.30±0.05(48X) 1.875 0.75...
  • Page 22 PRELIMINARY CY14B102L, CY14B102N Package Diagrams (continued) Figure 18. 54-Pin TSOP II (51-85160) 51-85160-** Document #: 001-45754 Rev. *B Page 22 of 24 [+] Feedback...
  • Page 23 Document History Page Document Title: CY14B102L/CY14B102N 2 Mbit (256K x 8/128K x 16) nvSRAM Document Number: 001-45754 Submission Rev. ECN No. Orig. of Change Date 2470086 GVCH 2522209 GVCH/AESA 06/27/2008 2606696 GVCH/PYRS Document #: 001-45754 Rev. *B PRELIMINARY Description of Change New Data Sheet Added Automotive temperature Range and 20 ns access speed information in “Features”.
  • Page 24 Sales, Solutions, and Legal Information Worldwide Sales and Design Support Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office closest to you, visit us at cypress.com/sales. Products PSoC Clocks & Buffers Wireless wireless.cypress.com Memories memory.cypress.com...
