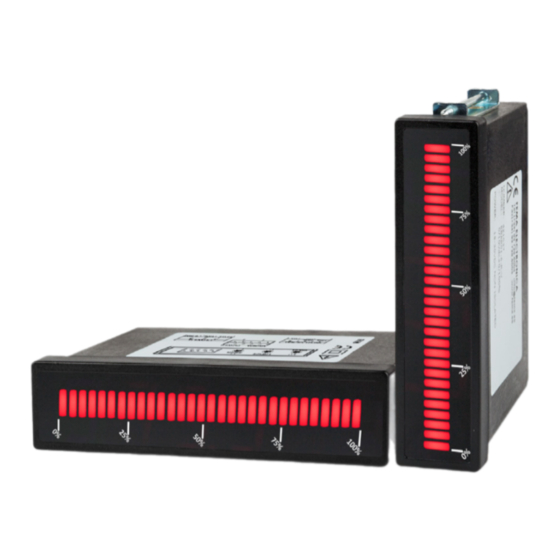

- Page 1 USER’S MANUAL SERIES BAR · Model EBR COMPACT BAR GRAPH METER Section SPECIAL www.fema.es 4/20 m A 0/10 V dc ±20 m A ±10 V dc SPECIAL Process Process Process Process 5495r00...
- Page 2 20 mA are no more on the overrange reading section. • generate again the 20 mA and configure the span (see section 11). FEMA · MANUFACTURING FOR INDUSTRIAL AUTOMATION...
- Page 3 Table 4 Additional information 24 mm (0.95 in.) Document Link 96 mm 55 mm User’s Manual www.fema.es/docs/5495_EBR_manual_en.pdf (3.78 in.) (0.60 in.) (2.16 in.) (0.31 in.) Datasheet www.fema.es/docs/5497_EBR_datasheet_en.pdf Panel Quick installation guide www.fema.es/docs/5499_EBR_installation_en.pdf cut-out CE declaration www.fema.es/docs/5019_CE-Declaration_EBR_en.pdf 21.5 mm Warranty www.fema.es/docs/4153_Warranty1_en.pdf (0.85 in.) 92.5 mm www.fema.es/Series_BAR (3.64 in.) w w w. fema . es...
-
Page 4: Configuration System
Solve the error state (check the input signal to solve the underrange or overrange condition) and once solved, modify the offset and span configuration as needed. FEMA · MANUFACTURING FOR INDUSTRIAL AUTOMATION... - Page 5 If the configuration key is released before entering into the ‘configuration mode’, the horizontal leds light downwards from top to bottom, and the instrument returns to ‘normal mode’ of operation. Offset 4 mA 20 mA Input w w w. fema . es...
-
Page 6: Error States
5 seconds more. The ‘bar graph’ erratic movement starts again. • free the ‘Input’ key and the instrument will reset to default factory parameters. The instrument resets and start ins normal mode of operation (see section 10). FEMA · MANUFACTURING FOR INDUSTRIAL AUTOMATION... - Page 7 Within the warranty period and after examination by the manufacturer, the unit will be repaired or substituted when found to be defective. Extended warranty available at https://www.fema.es/warranty w w w. fema . es...
