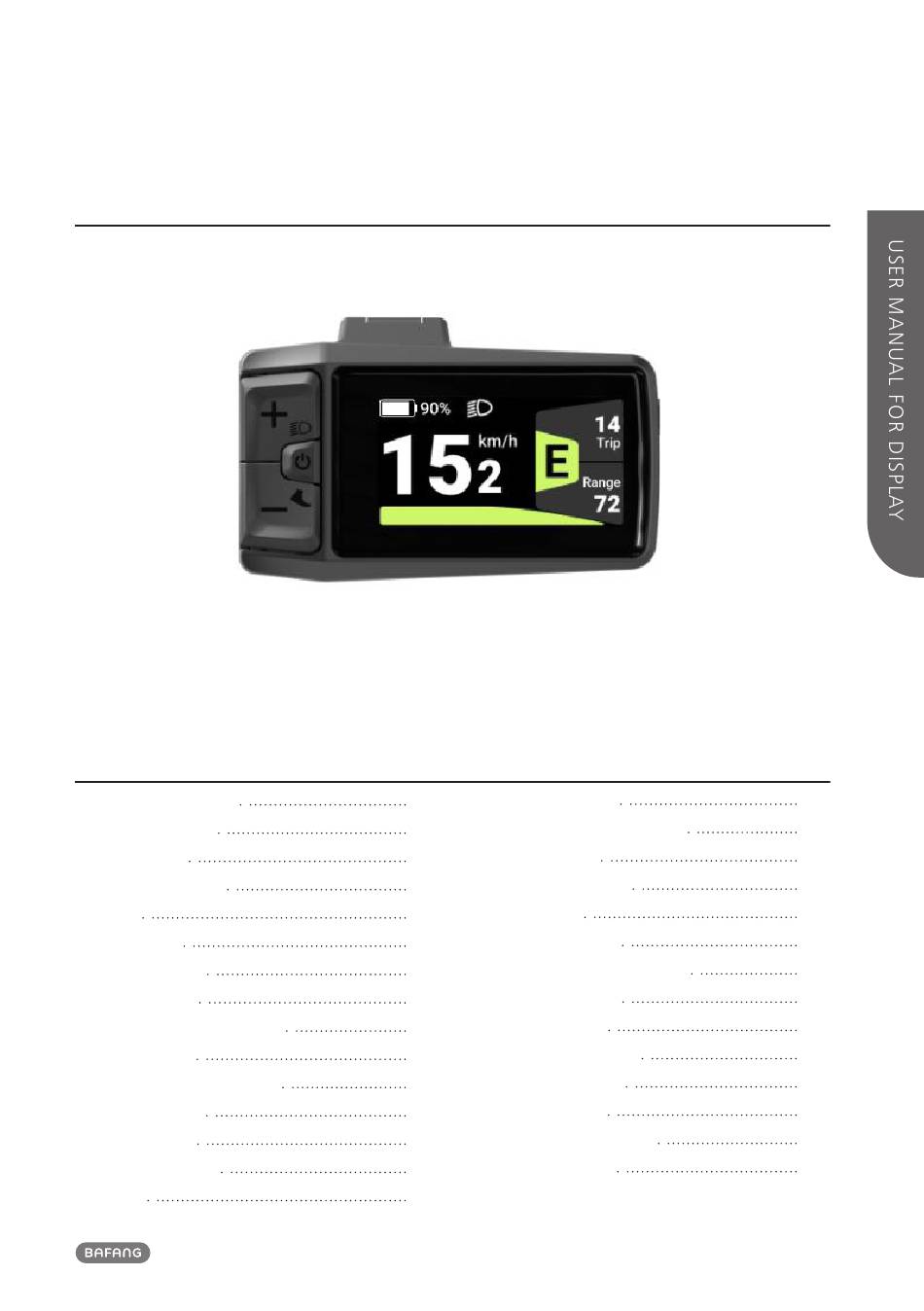

Page 1: Table Of Contents
7.6.3 View the Data 7.6.4 Adjust the Headlight/backlight 7.7.11 View the Sensor Info 7.6.5 Walk Assistance 7.7.12 Set the UI Theme 7.6.6 Type-C Charge 7.7.13 View Historical Error Codes 7.8 Error Code Definition 7.6.7 Bluetooth Function 7.7 Settings BF-UM-C-DP C080.CB-EN April 2024... -
Page 2: Introduction Of Display

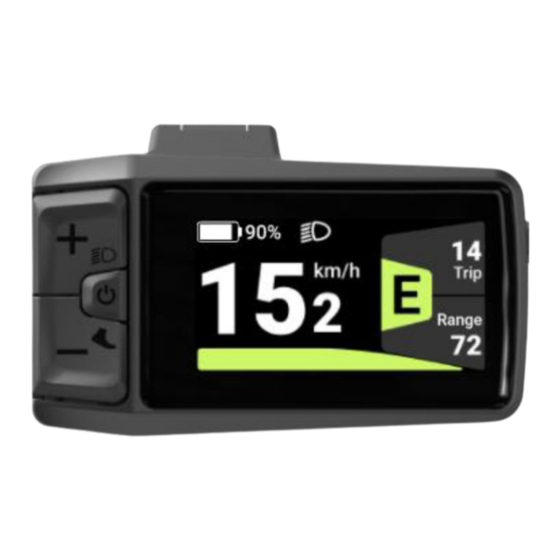

7.2 INTRODUCTION OF DISPLAY • Model: DP C080.CB • The housing is made of PC/ABS and the LCD screen is made of aluminosilicate glass. BF-UM-C-DP C080.CB-EN April 2024... -
Page 3: Product Description
• Smart indication: remaining mileage can be shown as RANGE, energy consumed can be shown as Cal (calories). • Error code indication. • Walk assistance. • Type-C charging • Maintenance prompt. • Bluetooth. • 6 languages: English, German, Dutch, French, Italian, Czech. BF-UM-C-DP C080.CB-EN April 2024... -
Page 4: Display
7.4 DISPLAY (2) (3) (4) (5) (6) Power-assisted mode Battery capacity Multifunction indication Headlight Watt Charge Real-time speed Maintenance Bluetooth 7.5 KEY DEFINITION " "/Headlight key " "Power key " "/Walk assistance key BF-UM-C-DP C080.CB-EN April 2024... -
Page 5: Normal Operation
The default mode is E; 0 means the e-bike is in neutral position. E (Eco): Green ECO mode T (Tour): Blue TOUR mode S (Sport): Indigo SPORT mode S+ (Sport+): Orange SPORT+ mode B (Boost): Purple BOOST mode BF-UM-C-DP C080.CB-EN April 2024... -
Page 6: View The Data
To charge the HMI, connect the Type-C cable with the HMI. If the HMI is OFF, connect the Type-C cable with the HMI and power ON the HMI. Maximum charging voltage is 5V; maximum charging current is 500 mA. BF-UM-C-DP C080.CB-EN April 2024... -
Page 7: Bluetooth Function
7.6.7 Bluetooth Function The HMI can be connected to Bafang Go App through Bluetooth. Scan the QR code in the figure below to install the App. (BAFANG GO for Android and IOS The data that can be sent to the APP are as follows:... -
Page 8: Settings
“9 Min” / "10 Min", and press the " " to save and return to "Auto Off". To save and return to the main interface, press and hold " " and " " simultaneously, or press "BACK" → "EXIT". "OFF" means to cancel the automatic shutdown function. BF-UM-C-DP C080.CB-EN April 2024... -
Page 9: Set The Backlight
" " or " " to select "NO"/"YES" ("YES" means to clear, "NO" means not to clear), and press the power button to save and return to "Trip reset". To save and return to the main interface, press and hold " " and " " simultaneously, or press "BACK" → "EXIT". BF-UM-C-DP C080.CB-EN April 2024... -
Page 10: Maintenance Prompt
Select " ", and press " " to return to "Battery Info". To save and return to the main interface, press and hold " " and " " simultaneously, or press "BACK" → "EXIT". BF-UM-C-DP C080.CB-EN April 2024... -
Page 11: View The Hmi Info
UI theme you want. Press " " to save and the HMI will be reset and restarted. If you do not want to change the theme, press and hold " " and " " simultaneously to exit to the main interface. BF-UM-C-DP C080.CB-EN April 2024... -
Page 12: View Historical Error Codes
Enter the "Information", press " " or " " to select "Error Code". Press " " to enter and press " " to view the last 10 error messages, "E-Code1" to "E-Code10". Press " " to return to "Information", or press and hold " " and " " simultaneously to return to the main interface. BF-UM-C-DP C080.CB-EN April 2024... -
Page 13: Error Code Definition
Note: Please read carefully the description of the error code. When the error code appears, please first restart the system. If the problem still persists, please contact your dealer or technical personnel. See Appendix B for the detailed error code list. BF-UM-C-DP C080.CB-EN April 2024...
