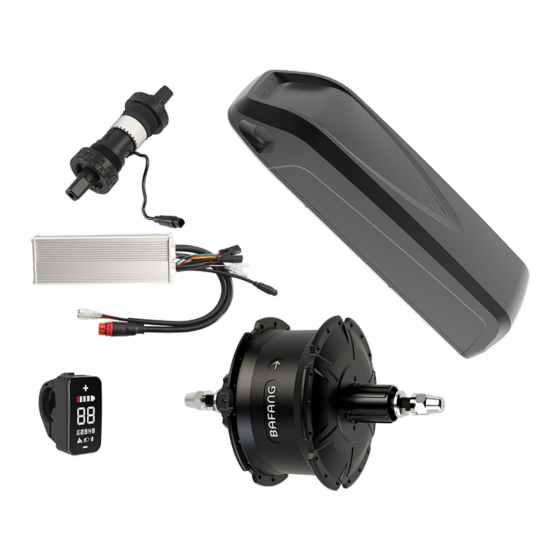

- Page 1 USER MANUAL H550 Drive System Original instruction manual Read carefully before use. Keep for later reference. BF-UM-S-H550-EN, May 2023...
-
Page 2: Table Of Contents
SYMBOL INSTRUCTION If you see the following symbols there is always a Danger: This symbol indicates possible health and safety hazards that may arise, if certain possibility of danger. measures are not taken into consideration. The warning symbols are as follows: User Manual: Please read the manual before Note: This symbol indicates information about using the pedelec. -
Page 3: Guide
1 GUIDE 1.1 Quick start This section provides important information and instructions that will allow you to use your pedelec in a safe manner. First, please read the safety instructions to find out about the legal regulations that apply to you. Perform all safety checks in accordance Practice using the pedelec in a quiet and safe with the "Before each trip"... -
Page 4: Important Notice
2 IMPORTANT NOTICE 2.2 Pedelec modifications Be sure to follow the instructions in the manual when using this product. are prohibited • If you are lending your pedelec to third par- ties, please give them the instruction manual Do not change the pedelec drive system in any along with the pedelec. - Page 5 The authorized retailer can only use the original spare parts Before driving on public roads, please read the from Bafang for maintenance. applicable countries regulations carefully. The use of pedelecs on public roads must comply with Do not use no high-pressure water jet or local regulations.
-
Page 6: Vehicle Transport
3 VEHICLE TRANSPORT Remove the battery during transport and store When transporting the pedelec by train, the relevant laws and regulations must be complied the battery in a safe and dry place. with. Before using public transport, please find Do not transport a battery without the correct out which means of transport are suitable for procedure. -
Page 7: Guaranty
5 GUARANTY All warranty and guarantee conditions are Warranty and warranty exclusions: subject to applicable laws and regulations from • Modification, manipulation or improper your brand. repair of the product. The condition for warranty and guarantee • Improper use of the product. claims is that the instructions for the system are •... - Page 8 6 USER MANUAL FOR H550 (RM G062.750.DC) CONTENT 6.1 Introduction 6.2 Specifications 6.2.1 Surface 6.2.2 Storage Information 6.3 Maintenance BF-UM-C-RM G062-DC-EN May 2023...
-
Page 9: Introduction
6.1 INTRODUCTION • Scope Applies only to electrically powered pedelecs developed or licensed by Bafang. It is suitable for fat bikes or all terrain bikes, which have been developed for off road on gravel or sand use. The engine is not suitable for sport competi- tions. -
Page 10: Specifications
6.2 SPECIFICATIONS Motor model: RM G062.750.DC Rated power (W) Rated voltage (V) Waterproof IP65 Certification CE - EMC Outdoor Temperatures -20℃~45℃ 6.2.1 Surface Shockproof black coating 6.2.2 Storage Information The pedelec should be stored in a ventilated dry room. Avoid storing the pedelec near strong magnetic objects. -
Page 11: Maintenance
6.3 MAINTENANCE • Maintenance must be carried out by autho- rized personnel with the correct equipment. • Do not disassemble the motor. • Do not use thinners or other solvents to clean the components. Such substances can damage the surfaces. •... - Page 12 7 USER MANUAL FOR DP E161.CAN CONTENT 7.1 Important Notice 7.6.1 Switching the System ON/OFF 7.2 Introduction of Display 7.6.2 Selection of Support Levels 7.3 Product Description 7.6.3 Headlights / backlighting 7.6.4 Walk Assistance 7.3.1 Specifications 7.6.5 Battery Capacity Indication 7.3.2 Functional Overview 7.4 Display 7.6.6 Bluetooth Function...
-
Page 13: Important Notice
7.1 IMPORTANT NOTICE • If the error information from the display • Please use this product with care. cannot be corrected according to the inst- • Do not use thinners or other solvents to ructions, please contact your retailer. clean the display. Such substances can •... -
Page 14: Product Description
7.3 PRODUCT DESCRIPTION 7.3.2 Functional Overview 7.3.1 Specifications • Battery capacity indicator • Operating temperature: -20℃~45℃ • Indication of support level • Storage temperature: -20℃~50℃ • Walk assistance • Waterproof: IP65 • Automatic sensors explanation of the light- • Storage room Humidity: 30%-70% RH ing system •... -
Page 15: Display
7.4 DISPLAY Battery capacity indicator Speed indicator Support level indicator Walk assistance Indicator for lighting system Bluetooth indicator 7.5 KEY DEFINITION E161 Display has three buttons: System On/Off , Up and Down System On/Off Down BF-UM-C-DP E161-EN May 2023... -
Page 16: Normal Operation
7.6 NORMAL OPERATION 7.6.1 Switching the System ON/OFF 7.6.3 Headlights / backlighting Press and hold (>2S) on the display to Hold the (>2S) button to activate the turn on the system. headlight and taillights. Press and hold (>2S) again to turn off Hold the (>2S) button again to turn off the system. -
Page 17: Battery Capacity Indication
When the mobile phone is connected to the display by Bluetooth, the Bluetooth symbol will be displayed, and the disconnected symbol will disappear automatically. This display can be connected to the Bafang Go APP through Bluetooth. More information can be viewed on the APP, such as the information of battery, remaining capacity, single-trip distance. -
Page 18: Error Code Definition
7.7 ERROR CODE DEFINITION DP E161.CAN display can provide warning for failures. The error code flickers when an error is detected. Note: please read carefully the description of the error code. When the error code appears, please first restart the system. If the problem is not eliminated, please contact your dealer or technical personnel. - Page 19 Error Declaration Troubleshooting 1. Turn off the system and let the pedelec cool The protection temperature inside down. the controller has reached its maxi- 2. If the problem persists, please contact your mum protection value retailer. Error with the temperature sensor Please contact your retailer.
- Page 20 Error Declaration Troubleshooting Detection circuit for 15V has an error Please contact your retailer. Detection circuit on the keypad has Please contact your retailer. an error WDT circuit is faulty Please contact your retailer. Total voltage from the battery is too Please contact your retailer.
- Page 21 8 USER MANUAL FOR BT F150.D504/D672.C CONTENT 8.1 Introduction 8.2.1 Installing the battery 8.2.2 Removing the battery 8.1.1 Battery 8.2.3 Charging the Battery 8.1.1.1 Safety Instructions 8.2.3.1 Safety Instructions 8.1.1.2 Battery Storage 8.2.4 LED Display for Charge Status and Charging Capacity 7 8.1.1.3 Battery Wear 8.2.4.1 Sleep State 8.1.1.4 Pedelec Riding Distance...
-
Page 22: Introduction
·Please carefully read manual before use. A faulty battery can lead to overheating, smoking or burning. Please only use the original BAFANG charger When the battery gets hot keep yourself and to charge the battery. The battery is not fully others a safe distance away from the battery. -
Page 23: Battery Storage
• To prevent a deep discharge, the battery is Do not intentionally short-circuit the battery. put into sleep mode after a certain time. Never allow the plus and minus connectors to • Do not extend the battery to temperatures come into contact with each other. Do not below the permissible storage temperature allow the battery to come into contact with of -10 °C to 35 °C. -
Page 24: Charger
Read the instructions on the external label of when not in use. your charger before using the battery. • Use only the original Bafang charger that came with your pedelec. • Do not cover the charger while in use. There is the possibility of short circuits or fires. -
Page 25: Operation
8.2 OPERATION 8.2.1 Installing the battery Before charging, read the instructions on the charger. For correct insertion, the battery must be 1. First plug the connector of the charging ca- connected, ensuring all pins are correctly ble into the charging socket in the battery, connected to the battery holder. -
Page 26: Safety Instructions
• Charge the battery only in a well-ventilated 8.2.3.1 Safety instructions room. Use only the battery charger. • Do not cover the charger/battery during charging. There is a risk of overheating, fire Make sure you are using the correct mains or explosion. -
Page 27: Led Display For Charge Status And Charging Capacity
8.2.4 LED display for charging status and charging capacity “ “ Press the button for 1 second to indicate the state of charge from the LEDs on the battery. “ “ Press and hold the button for 6 seconds to indicate the capacity of the battery. -
Page 28: Specification
8.3 SPECIFICATION 8.3.1 Battery Primary Settings BT F150.D504.C BT F150.D672.C Rated voltage 48 Vdc 48 Vdc Nominal Capacity 10.5 Ah 14Ah Rate Capacity 9.75Ah 13Ah Energy 504 Wh 672Wh Storage (At 35% SOC &-10° ~ 35 °C) 6 months 6 months Cycle life 600 cycles 600 cycles...
