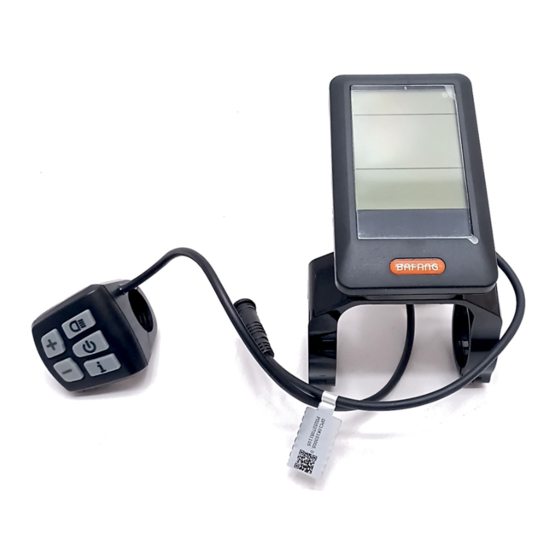

Bafang DPC-10 Manual
Biktrix Version

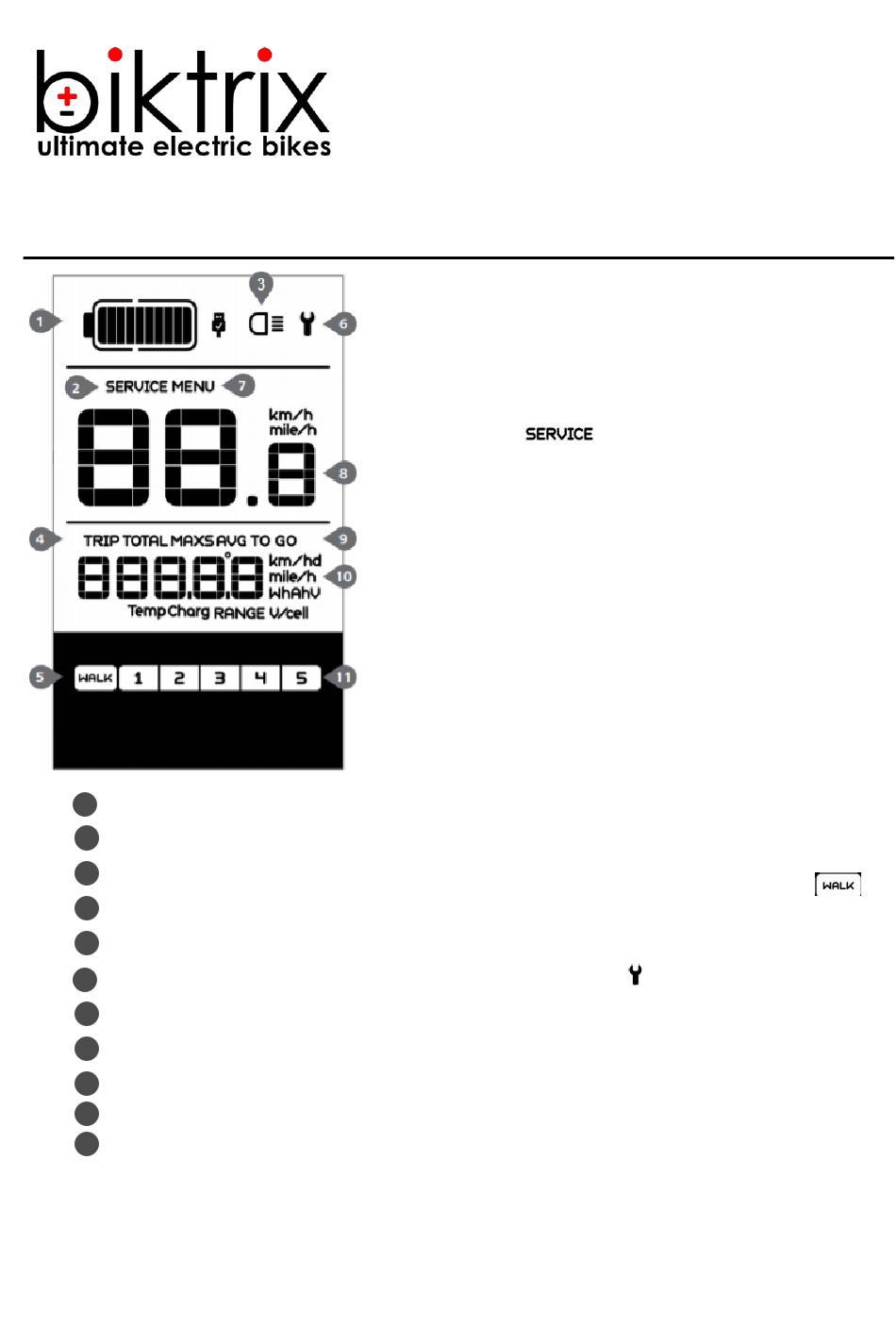

NORMAL INDICATION AREA

● Battery level: 10-segment battery
level indicator.
● Maintenance Warning: When there is
a need for maintenance the symbol
will be displayed (riding
distance or the number of battery
charge cycles exceed the set value,
function can be deactivated).
● Headlight indicator: only shows
when headlight or backlight are on.
● Distance mode: display of maximum
speed MAXS, average speed AVG, the
single-trip distance TRIP, the total
distance TOTAL, remaining distance
TO GO, power W, energy consumption
C.
● Level indication: The chosen level 1–5
will be displayed; if there is no numeric
display, it means that there is no
assistance (by the motor). If the rider is
walking and pushing the e-bike,
will be displayed.
● Error display: When a fault is detected
the symbol
will be displayed.
● Speed display: display of the speed,
km/h or mph.
● Speed mode: average speed (AVG
km/h), maximum speed (MAXS
km/h).
● Distance indication: display of the
distance depending on the setting.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPC-10 Biktrix and is the answer not in the manual?

Questions and answers

Summary of Contents for BAFANG DPC-10 Biktrix

  • Page 1 Bafang DPC-10 Manual Biktrix Version NORMAL INDICATION AREA CONTE ● Battery level: 10-segment battery level indicator. ● Maintenance Warning: When there is a need for maintenance the symbol will be displayed (riding distance or the number of battery charge cycles exceed the set value, function can be deactivated).
  • Page 2 BUTTON DEFINITION Headlight button Up button Switch button Down button Mode button NORMAL OPERATION ● ON/OFF Switch ● Assist Mode Selection Turn on the display, press and hold Press choose the desired level of assistance from the motor. The lowest Press and hold again to power off level is Level 1, the highest Level 5.
  • Page 3 ● ● Headlight/ Display Backlight Switch between Distance and Speed Mode Operation Hold the button. The backlight of Briefly press the button to switch the display as well as the headlight and between distance and speed readings. Single-trip distance (TRIP km), total tail-light will turn on.
  • Page 4 ● Battery Status Indication When the battery status is normal, a certain number of the battery LCD segments as well as the border will light up according to the level of charge. If all 10 segments go blank and the border starts blinking, the battery needs to be charged immediately.
  • Page 5 PARAMETER SETTING ● Items to be Set a "y" will be also displayed. Now all 〉Data reset temporary data, e.g. maximum speed 〉Km/mile (MAXS), average speed (AVG) and single trip distance (TRIP) can be 〉Light sensitivity cleared. Press the button to enter 〉Display backlight brightness the km/mile setting interface 〉Automatic off time...
  • Page 6 After changing this setting, press the button to enter the option for maintenance warning. ● Maintenance Warning (can be deactivated) When the speed field displays nnA, press the buttons to select 0 or 1. 0 disables this function while 1 enables it. After changing this setting, press the button to enter the option for backlight brightness.
  • Page 7 ● 2) Information in the battery menu: Wheel Diameter check Speed position displays Wd, measurement is in inches. A wrong wheel speed diameter can lead to field Definition Unit speed abnormalities. displays After changing this Current °C setting, press the button to Temperature enter the option for speed limit.
  • Page 8 ERROR CODE DEFINITION The DP C10.UART display can show e-bike faults. When a fault is detected, the icon will be displayed. In the speed field one of the following error codes will be displayed. If you cannot troubleshoot the error and resolve the issue contact Biktrix support.
