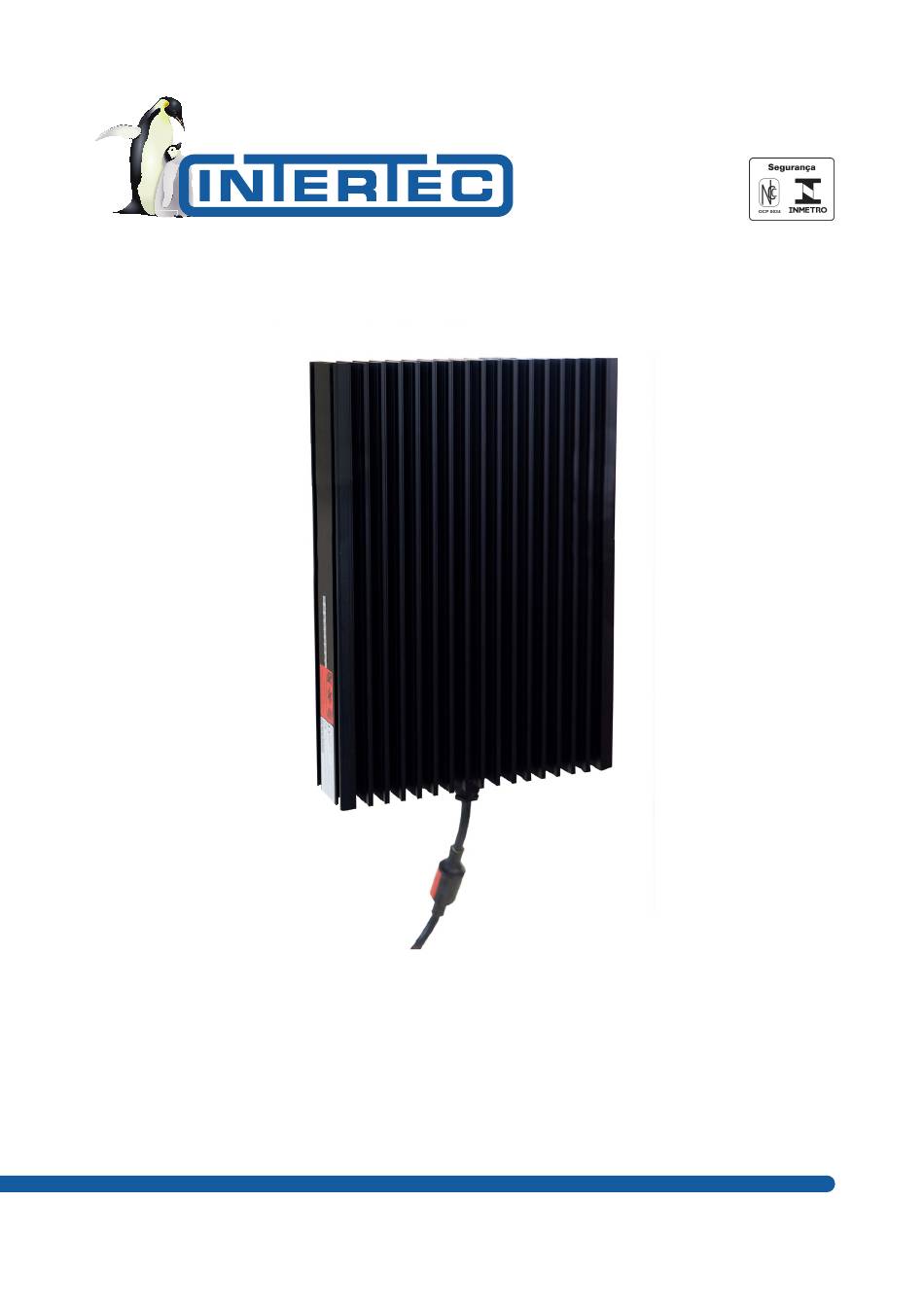

- Page 1 Betriebsanleitung CP MEGATHERM DB.A HI HOM231808651en-6 • 12/06/2024...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use................................... 3 3 Special conditions for safe use .......................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Installation accessories............................ 4 7 Technical Data ................................ 4 8 Installation ................................ -
Page 3: General
Operating Instructions CP MEGATHERM DB.A HI 2. If connection is made in the potentially explosive General area, the connecting lead shall be connected by These operating instructions describe the safe and means of an enclosure that meets the requirements proper way to work with the device. -
Page 4: Safety Information
Operating Instructions CP MEGATHERM DB.A HI WARNING CAUTION WARNING Risk of burns from a hot surface This sign is warning about a hazardous situation which, Attainable highest temperatures: if not heeded, may lead to death or serious irreversible - Max. 160°C with T3 heating systems injury. -
Page 5: Installation
Operating Instructions CP MEGATHERM DB.A HI Connecting cable Silicone hose cable, NOTICE notch- and oil resistant, 3 x 1,5 mm² Ø8,8 mm Carefully remove Connecting cable AM Silicone hose cable, When removing from the packaging and during notch- and oil resistant, 5 transport, the connection line must not be stressed or x 1,0 mm²... - Page 6 Operating Instructions CP MEGATHERM DB.A HI integrated thermostat, the fuse protection can be selected according to the cross-section of the supply cable. Additional equipotential bonding is required. The Ground terminal block designated for this purpose has the RS 485 TC DIGITAL ground sign.
-
Page 7: Maintenance
Operating Instructions CP MEGATHERM DB.A HI If the heater fails, check the installation. Carry out a CAUTION continuity test on the heating circuit. Pay attention to the connection diagram switching point Sufficient heat dissipation must be ensured. thermostat! Unauthorized covers must be removed as otherwise In the case of overheating, the thermal indicator (see there is the risk of the heater overheating. - Page 8 Operating Instructions CP MEGATHERM DB.A HI If the information contained in this instruction manual NOTICE should not be sufficient in any way, then INTERTEC would be glad to be at your disposal to provide further Environmental damage may be caused if information and service.
