COMPONENTS
PART NO.
DESCRIPTION
A
Floor Bottom
B
C,D
Adjustable Shelf
Visible Side Left
E
Visible Side Right
F
G
TOOLS REQUIRED
Screw driver
Mallet
Measuring tape

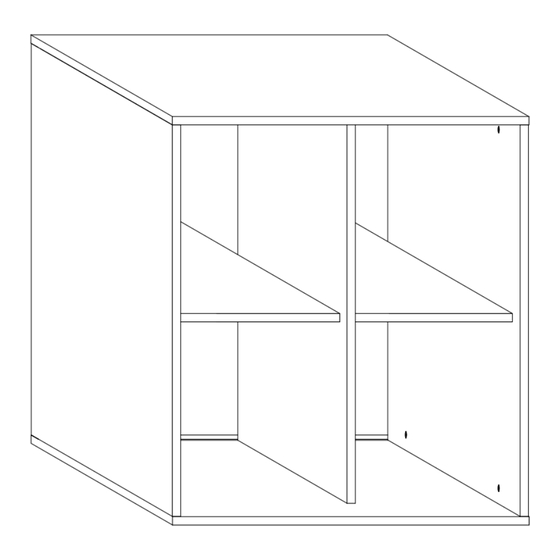

BOFA STACK CUBE
QTY
Top
1
1
2
1
1
Back
1
751.6
ITEM
Minifix
Dufix
Dowel
Flipper
Glides
1
HARDWARE
QTY
12
12
24
8
4
Advertisement
Related Manuals for PG BISON BOFA STACK CUBE
Summary of Contents for PG BISON BOFA STACK CUBE
- Page 1 BOFA STACK CUBE COMPONENTS HARDWARE PART NO. DESCRIPTION ITEM IMAGE Minifix Floor Bottom Dufix Adjustable Shelf Visible Side Left Dowel Visible Side Right Flipper Back Glides TOOLS REQUIRED Screw driver Mallet Measuring tape 751.6...
- Page 2 GENERAL INSTRUCTIONS 1. Confirm that all panels (8) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A,B,C,D,E,F,G&H). 3. Ensure that the panels are laid on a non-abrasive surface when assembling. 4. Note that all panel connections are done using the system described below. PANEL CONNECTION AND FASTENING Insert the minifix (1), Dufix (1) and wooden dowels (2) in the shown positions.
- Page 3 ASSEMBLY SHEET - BOFA STACK CUBE STEP 1 STEP 2 STEP 3 G-Back Slide backer along the groove. Floor Bottom STEP 5 STEP 4 A-Top Hammer the glide using a mallet onto bottom B-Floor Bottom STEP 6 STEP 7 A-Top...
