Introduction

SC Test Bench
When we first came up with our patented idea of the PowerBoard we realized the potential of
using it for a test bench. We have built and used many test benches and the common issue is
cable management, usually on a test bench there is none. The SC Test Bench eliminates the need
for cable management thanks to the PowerBoard. Built into the PowerBoard are many features
which are useful to have on a test bench and in any system particularly if it is water-cooled. The
SC Test Bench fits radiators on both sides up to 480mm or 560mm and x3 more 140mm fans on
the front. There will also be a pump/reservoir distribution plate add-on which will mount onto
the front.
SC Test Bench D5 Reservoir Distribution Plate
The SC Test Bench D5 Reservoir Distribution Plate adds a D5 and Reservoir Combination to the SC
Test Bench. A Distribution Plate is the most compact way to add a pump and reservoir which is
important for a test bench to keep things out of the way for easy access to the other components.
It also improves the loop routes and is a major visual feature. This distribution plate installs on
one side and has a loop route for easy connections to and from the side mounted radiators. It has
an integrated reservoir, D5 pump top, D5 cover and a LED strip built in so that the distribution
plate glows. The distribution plate is built from CNC machined clear cast acrylic and uses gaskets
instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners.

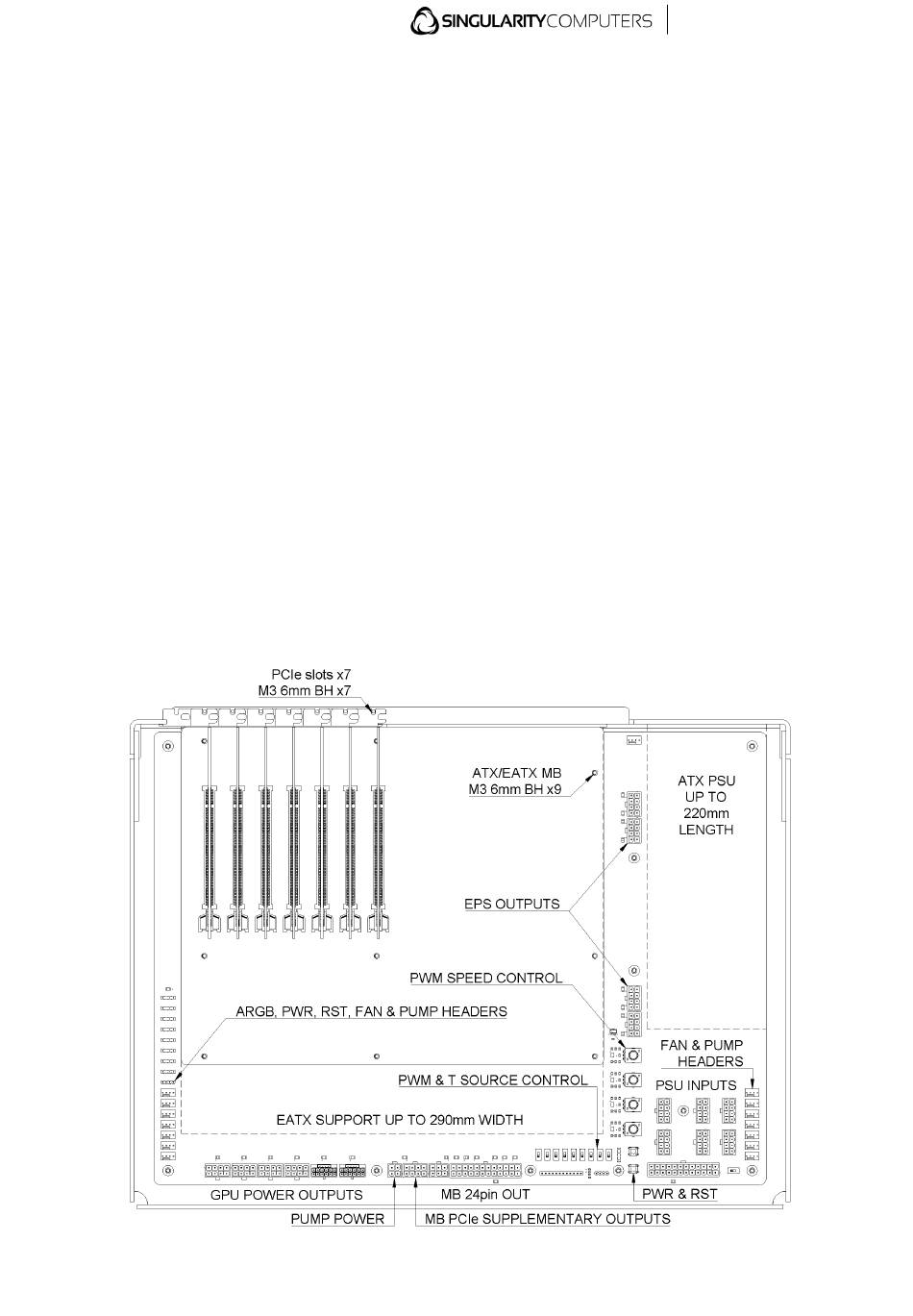

Features Overview
