SC Test Bench Manual

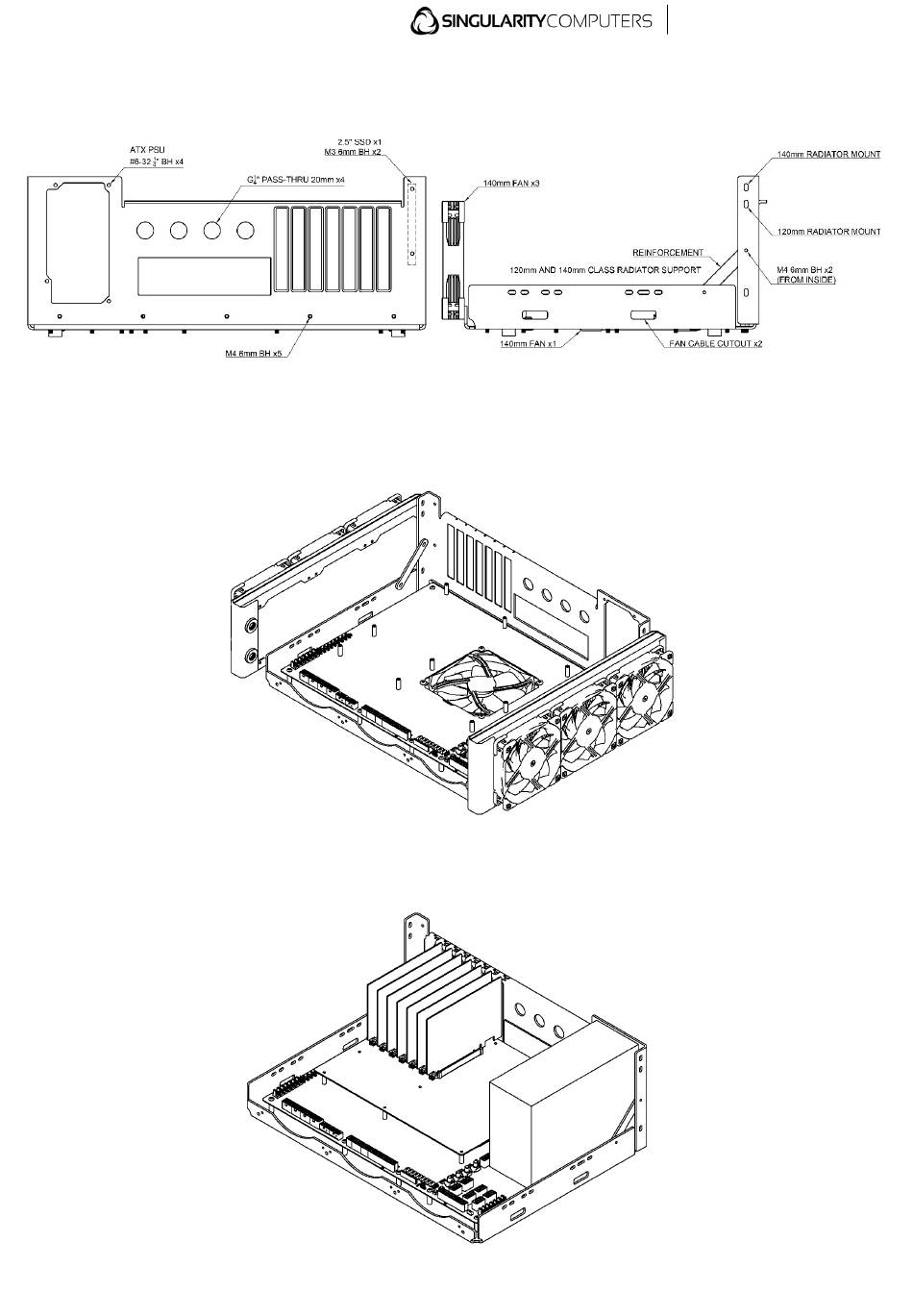

A 2.5" drive can be installed to the back panel using 2x M3 6mm BH fasteners and the SATA data
and power cables can be routed under the PowerBoard or the motherboard.
If radiators are going to be used in the system, install them now to the sides using the radiators'
included mounting hardware. An offset fitting might need to be used with 280mm radiators to
clear the power supply input cables and with 360mm radiators to make a connection to the D5
distribution plate (sold separately). There are cable routing holes on each side for the fans.
Install the motherboard using 9x M3 6mm BH fasteners. Install an ATX power supply using 4x #6-
32 ¼" BH fasteners. Install PCIe cards and secure them using M3 6mm BH fasteners.
