Parts List; Installation - SINGULARITY COMPUTERS SC Test Bench Manual

Parts List

SC Test Bench
Cables
 8pin PCIe 30cm Linking cable x3 / 12VHPWR 30cm x1 
 PWM Linking Cable 50cm x2
ARGB Linking Cable 50cm x1

PowerBoard Switch Power Cable x1

PowerBoard Switch Reset Cable x1

Pre-installed Hardware
 M3-to-M4 18mm (Motherboard PCB Standoffs) x9
 M4 6mm Button Head (PowerBoard PCB) x10
M4 21.5mm (PowerBoard PCB Standoffs) x19


Installation

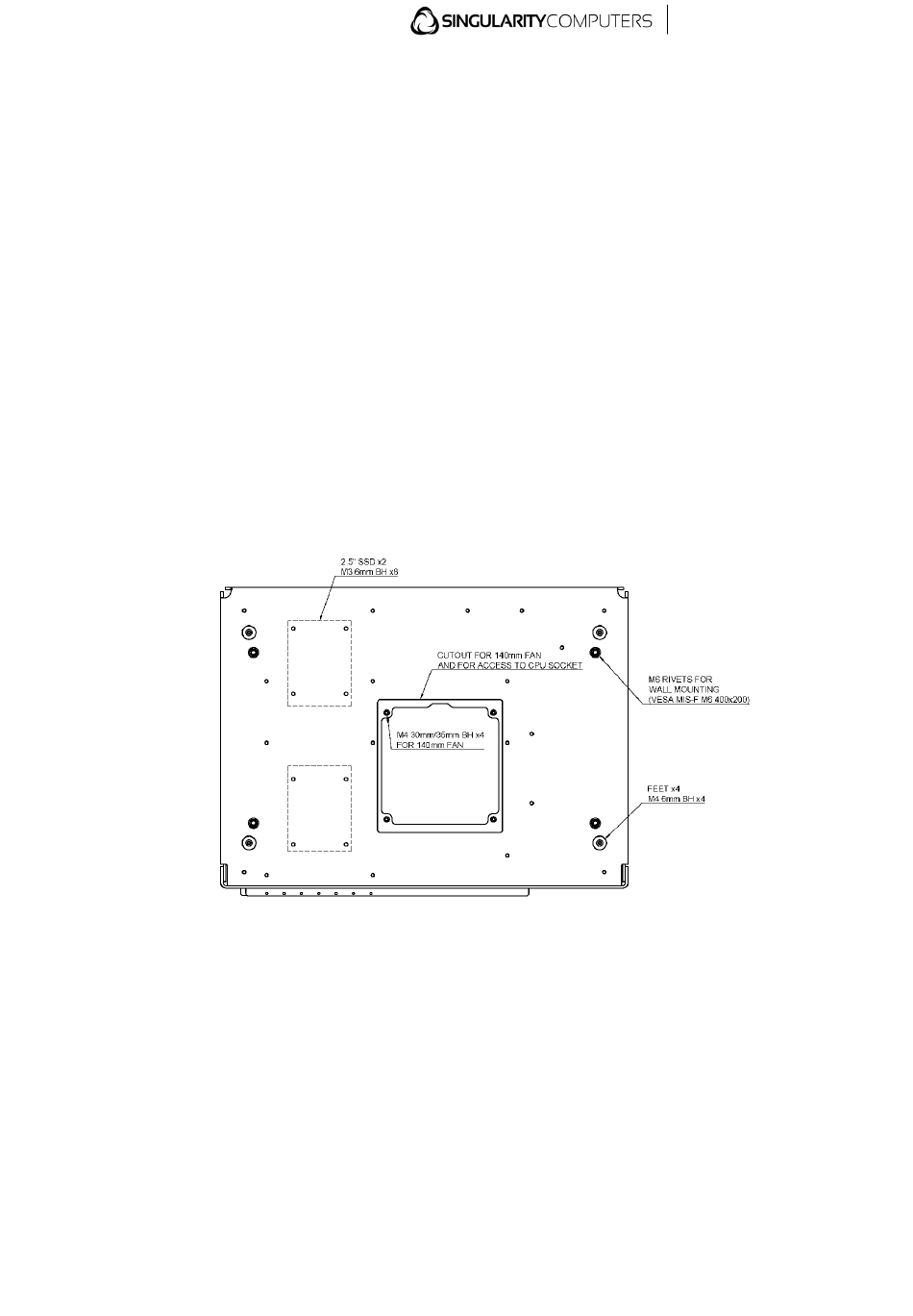

The PowerBoard comes preinstalled to the bottom panel. The bottom panel has mounting holes
for 2x 2.5" drives, but the PowerBoard needs to be removed to access them. If used, install the
2.5" drives using 4x M3 6mm BH per drive to secure them to the bottom panel and connect the
SATA power and data cables, then reinstall the PowerBoard.
Install the back panel to the bottom panel using 5x M4 6mm BH fasteners, but do not tighten
these fasteners for now. Install the reinforcement bars using 2x M4 6mm BH fasteners per bar
driving the fasteners in from the inside, but do not tighten these fasteners either for now.
Temporarily install a 120mm or a 140mm fan or radiator to the sides to align the back panel to the
bottom panel. The fan or radiator installed will hold the back and bottom panels in ideal positions
to each other, so tighten the M4 6mm BH fasteners on the reinforcement bars and on the back
panel to secure them in place, then remove the fan or radiator if they won't be used in the build.
Optional: Install a 140mm fan to the bottom of the PowerBoard through the bottom panel using
M4 30mm BH for 25mm thick fans or M4 35mm BH fasteners for 30mm thick fans. Pull the fan
cable through the cutout first before mounting the fan. After installing the fan, plug in the fan
cable to the "FAN-1-OUT-BACK" header.
Revision 1.0
Hardware
M3 6mm Button Head x26
 M4 6mm Button Head x13
M4 14mm Button Head x6

M4 30mm Button Head x10

M4 35mm Button Head x10

•
#6-32 ¼" BH x4
Feet x4

SC Test Bench Manual
Page | 4
