SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty
against defects in material or workmanship. All Kicker Speakers are covered by a limited 1
year warranty against defects in material or workmanship. All Kicker Amplifiers are covered by
a limited 2 year warranty against defects in material or workmanship. Labor for replacement
of defective components is not covered. Contact SSV Works for further warranty information.
TOOLS NEEDED FOR INSTALLATION
- T30 & T40 Torx Driver
PARTS LIST IMAGES
1. RZ4-DMR1 Base Plate with
Blank Rocker Switches
5. Low Level Harness x1
(B-H2375)
A. Remove all seats by releasing the handle behind each seat,
push forward slightly while lifting up.
- 10mm and 3/8in Socket & Rachet or Wrench

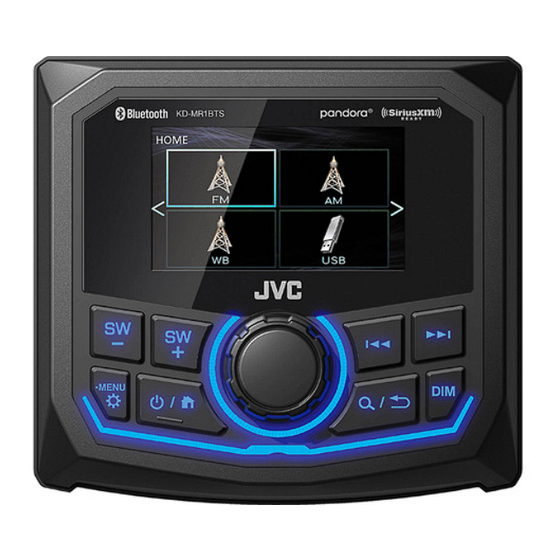

2. JVC MR1 Headunit
6. MR1 Power Harness x1
(B-H2367)
- #1 & #2 Phillips Screwdriver
A
B. Disconnect the negative battery cable from the battery.
Polaris RZR XP1000 2019+
JVC MR1 Upgrade Kit
Please read and understand these
!
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
- Panel removal tool
3. JVC MR1 Trim Ring
RZ4-R1
4. MR1 dash
screws x 4
B
1
