WARRANTY INFORMATION:
ALL SWITCH Works Electronics are covered by a limited 1 year warranty against defects
in material or workmanship. Contact SSV Works for further warranty information.
FEATURES & BENEFITS:
Left/Right Turn Signal with Automatic Canceling Feature
Dedicated Horn Output
License Plate Light Output
Emergency Hazard Light Switch
RGB Backlight Buttons
Weather-Proof for Offroad Use
Built-In Circuit Protection Detects Any Short Circuits, Over Current, Under Current and Low Voltage
Programmable RGB Backlight Colors to Match the Dash Lights
|
Fax: 866-293-6751
230-SWTS-UNI
Universal Street Legal
Turn Signal Kit
Please read and understand these
!
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
BY
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SSV Works SWITCH WORKS TANGO 2 230-SWTS-UNI
Summary of Contents for SSV Works SWITCH WORKS TANGO 2 230-SWTS-UNI
- Page 1 230-SWTS-UNI Universal Street Legal Turn Signal Kit SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030 www.SSVworks.com Phone: 818-991-1778 Fax: 866-293-6751 WARRANTY INFORMATION: Please read and understand these ALL SWITCH Works Electronics are covered by a limited 1 year warranty against defects instructions completely before in material or workmanship.

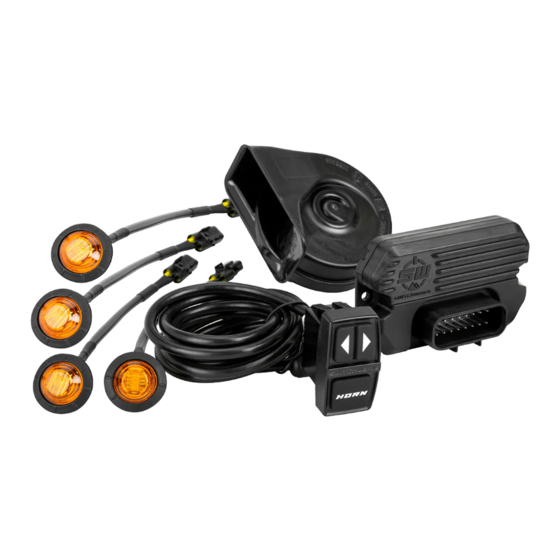

- Page 2 SWTS-UNI SWITCH Works Tango2 Parts List Tango2 Turn Signal Module Tango2 Turn Signal Rocker Tango2 Turn Signal Main Switch Harness [B-H2939] Tango2 Universal Rear Turn Tango2 Front & Rear Turn Signal Front Turn Signal Extension Signal Harness [B-H3204] LED Lamps (x4) [B-H2813] Harness (x2) [B-S2959] Zip Ties (x10) Power Extension Harness...
- Page 3 SWTS-UNI SWITCH Works TANGO2 Universal Turn Signal Kit Wiring Diagram Description Part # Tango2 Turn Signal Module Tango2 Turn Signal Rocker Switch Tango2 Turn Signal Main Harness B-H2939 Power Connector to Busbar Pulse Connector Power Input Harness, 3 ft. B-H3413 Front Turn Signal Extension Harness (x2) B-H2959 LED Lamp (Front Right)
-
Page 4: Tools Needed For Installation
SWTS-UNI SWITCH Works TANGO2 Universal Turn Signal Kit Installation TOOLS NEEDED FOR INSTALLATION - Phillips Screw Driver - Drill - 3/4” Hole Saw A. Find a suitable mounting spot for the Tango2 brain module preferably B. Use a vacant rocker switch mounting slot and insert the TANGO2 near a power source and within the cable length of the turn signal turn signal rocker switch. - Page 5 SWTS-UNI D. Route the front left and right turn signal extension cables to the E. Run the TANGO2 rear turn signal harness (B-H3204) to the rear of front of the vehicle. Make sure to route the correct cable connector the vehicle. Use zip ties to secure the cable away from any moving end that will plug to the LED lamp.
- Page 6 SWTS-UNI J. Horn mounting recommendations: 1. Mount away from moving parts; K. Drill a 3/4” hole in the rear of the vehicle for the turn signal LED 2. Mount as high as possible; 3. Mount with the horn facing downward lamps.
- Page 7 SWTS-UNI Turn Signal 180 Degree Viewing Angle TURN SIGNAL ROCKER SWITCH FUNCTIONS Momentary Press = Horn Button Momentary Press = Left turn signal with 8-flash auto turn off Press and Hold = Left turn signal with ..Momentary Press = Right turn signal with 8-flash auto turn off Press and Hold = Right turn signal with ..
- Page 8 4 seconds until the rocker switch back light turns bright. Use the left and right buttons to select the color. Press the horn button to save the color. © 2023 SSV Works, Oxnard, CA 93030 SWTS-UNI Rev.A 1-22-2...
