SSV Works WP-RZ304 Quick Start Manual

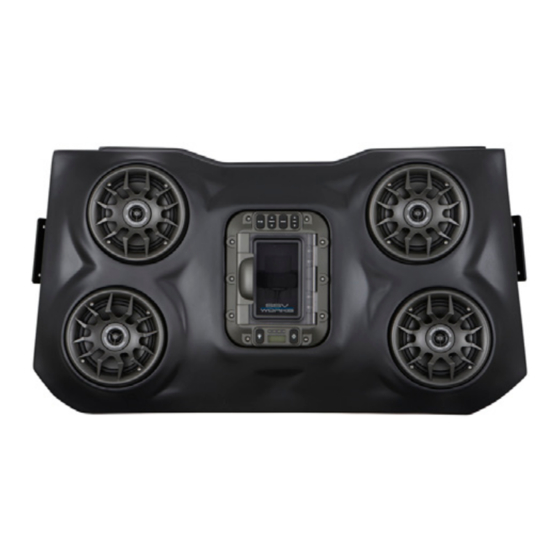

2 seat rzr xp1000 & 2015+ rzr900 4 speaker overhead wp system
Hide thumbs
1
2

Advertisement

Table of Contents

SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751

WARRANTY INFORMATION:

All SSV Works enclosures are covered by a limited lifetime warranty against defects
in material or workmanship. All SSV Works Electronics are covered by a limited 1 year
warranty against defects in material or workmanship. All SSV Works Speakers are
covered by a limited 1 year warranty against defects in material or workmanship. Labor
for replacement of defective components is not covered. Contact SSV Works for further
warranty information.

TOOLS NEEDED FOR INSTALLATION

- Wire Crimpers
- Wire Strippers

PARTS LIST IMAGES

1. WP-RZ304
5. Fuse Holder with Fuse

INSTALLATION NOTES

To make wiring easier, locate the battery in the vehicle before beginning the installation. The use of a thread locker is recommended on all
screws to prevent loosening due to vibration.
- 13mm Wrench for Battery
Terminal
- #3 Phillips Screwdriver
2. M6 x 1.0 Screws x 12
9. Crimp on ring terminal
2 Seat RZR XP1000 & 2015+ RZR900
4 Speaker Overhead WP System
Please read and understand these
!
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.

PARTS LIST

1. WP-RZ304 x 1
2. M6 x 1.0 Screws x 12
3. M6 Washers x 12
4. Mounting Brackets x 2
3. M6 Washers x 12
10. Zip ties
WP-RZ3O4
5. Fuse Holder with Fuse
6. Crimp on ring terminal
7. Zip Ties
4. Mounting Brackets x 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP-RZ304 and is the answer not in the manual?

Questions and answers

Related Manuals for SSV Works WP-RZ304

Summary of Contents for SSV Works WP-RZ304

  • Page 1 All SSV Works enclosures are covered by a limited lifetime warranty against defects instructions completely before in material or workmanship. All SSV Works Electronics are covered by a limited 1 year installation to avoid possible injury, or warranty against defects in material or workmanship. All SSV Works Speakers are damage to the accessory or vehicle.
  • Page 2 A. With one person on either side of the vehicle place the B. While holding the enclosure securely toward the front crossbar of WP-RZ304 into location from the underside of the cage. the cage, loosely install the 2 brackets using the screws provided.
