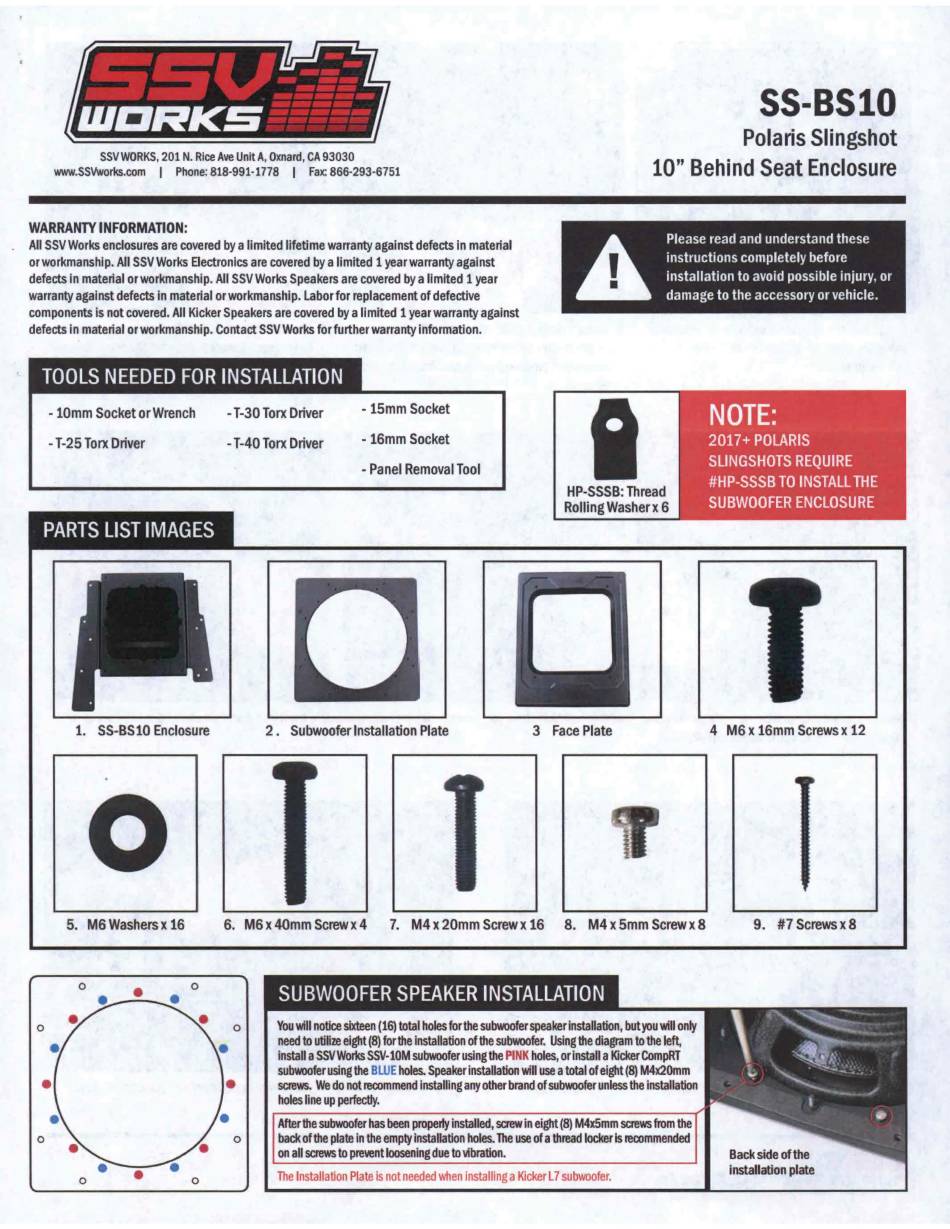

SSV Works SS-BS10 Installation

SS-8S10
SSVWORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com
I
Phone: 818-991-1778
I
Fax: 866-293-6751
Polaris Slingshot
10" Behind Seat Enclosure
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects In material
or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against
defects in material or workmanship. All SSVWorks Speakers are covered by a limited 1 year
warranty against defects in material or workmanship. Labor for replacement of defective
components is not covered. All Kicker Speakers are covered by a limited 1 year warranty against
defects in material or workmanship. Contact SSV Works for further warranty information.
A
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
TOOLS NEEDED FOR INSTALLATION
-1Omm SocketorWrench
- T-25 Tone Driver
PARTS LIST IMAGES

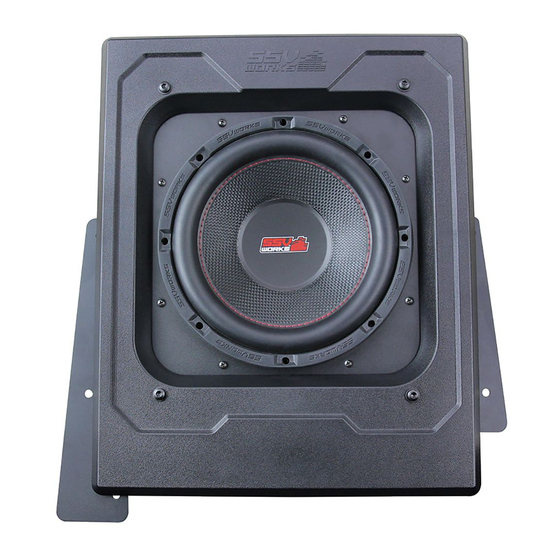

1. SS-8S10 Enclosure
0
5. M6 Washers x 16
0
•
0
0
•
0
0
•
0
- T-3O Tone Driver
- 15mm Socket
- T-4O Tone Driver
- 16mm Socket
- Panel Removal Tool
2 • Subwoofer Installation Plate 3 Face Plate
6. M6 x 40mm Screw x 4 7. M4 x 20mm Screw x 16 8. M4 x 5mm Screw x 8
0
•
0
SUBWOOFER SPEAKER INSTALLATION
You will notice sixteen (16) total holes for the subwoofer speaker installation, but you will only
need to utilize eight (8) for the Installation of the subwoofer. Using the diagram to the left,
install a SSVWorks SSV-10M subwoofer using the
PINK
holes, or install a Kicker CompRT
subv.oofer using the BLUE holes. Speaker installation will use a total of eight (8) M4x20mm
saews.
We do not reaimmend installing any other brand of subv.oofer unless the installation
holes line up perfectly.
After the subv.oofer has been properly installed, screw in eight (8) M4x5mm screws from the
back of the plate in the empty installation holes. The use of a thread locker is reaimmended
on all
screws
to prewnt loosening due to vibration.
The Installation Plate is not needed when installing a Kicker L7 subwoofer.
NOTE:
2017+ POLARIS
SLINGSHOTS REQUIRE
#HP-SSSB TO INSTALL THE
SUBWOOFER ENCLOSURE
4 M6 x 16mm Screws x 12
9. #7Screwsx8
'
--~~.~
..
-
'
- ~ - -
-~k . .
t,. . '----- - - .,
I
Back side of the
installation plate
. -
•· ./
