SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty
against defects in material or workmanship. All SSV Works Speakers are covered by a
limited 1 year warranty against defects in material or workmanship. Labor for replacement of
defective components is not covered. Contact SSV Works for further warranty information.
TOOLS NEEDED FOR INSTALLATION
- T30 torx
- Panel removal tool
PARTS LIST IMAGES
1. DMR1 Dash Kit x1
5. M6 x 1.0 Screws
6. U-Clips x2
x2 (T-30 torx)
INSTALLATION NOTES
Always disconnect the battery before installing any electronics.
Please refer to the MRB3 User Guide for instructions for wiring and operation.
- #1 phillips screw driver

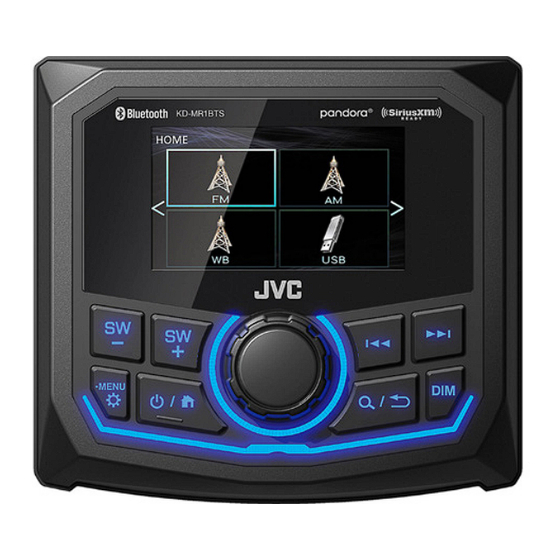

2. JVC MR1 Headunit
7. Push Pins x2
8. Bus Bar
Connector x1
(B-H1752)
Please read and understand these
!
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
3. JVC MR1 Trim Ring
8. MR1 Power Harness x1
(B-H2367)
RG4-R1
Polaris Ranger
JVC MR1 Dash Kit
4. MR1 dash
screws x 4
9. Low Level Harness x1
(B-H2375)
