TriStar II Plus Preinstallation Instructions and Checklist
Instrument Space
An unobstructed lab work space that will accommodate the specifications below is needed for the Tri-
Star II Plus system.
Installation Configuration
Standard installation, included in the purchase of the instrument, requires the use of 1/8 in. (0.3175
cm) copper gas supply lines, located in the instrument accessories kit.
A nonstandard installation will be created if another gas supply line is used or if the gas bottles cannot
be placed within 6 feet (1.83 cm) of the analyzer. There may be additional costs associated with a non-
standard installation. Please contact the Service Manager to discuss a nonstandard installation.
303-42870-01 (Rev B) - Mar 2015

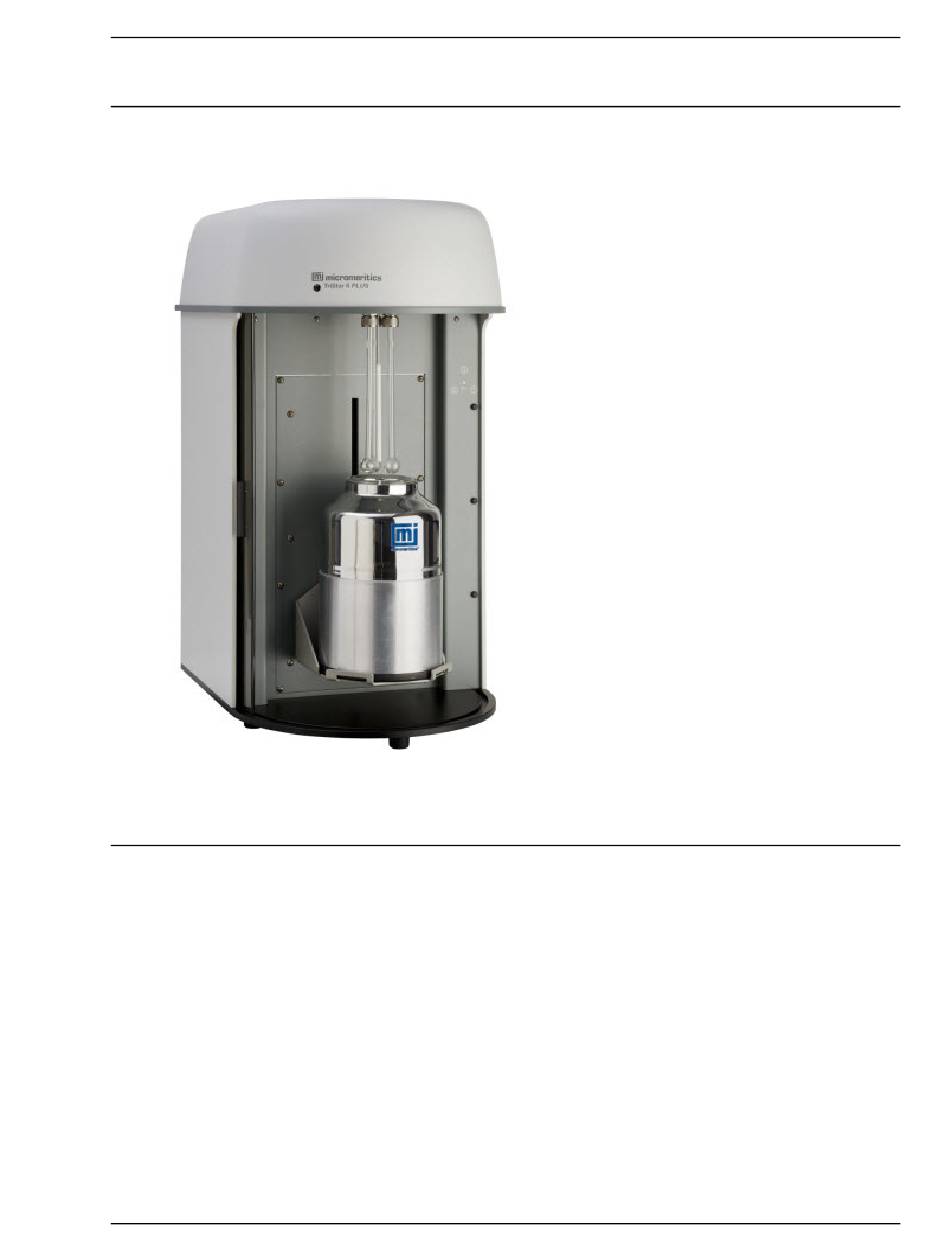

TriStar II Plus
Height: 74 cm (29 in.)
Width: 40 cm (16 in.)
Depth: 51 cm (20 in.)
Weight: 37 kg (82 lbs.)
Degas Unit
Width: Approx 50 cm (20 in.)
Depth: Approx 40 cm (16 in.)
Computer and Printer:
Width: Approx. 96.5 cm (38 in.)
Gas Supply
1 square foot (0.1 square meter) for
each gas bottle needed for installation.
For standard installation, the bottles
must be within 6 ft. (1.8 m) of the
instrument.
External Vacuum Pump
Height: Approx. 16.51 cm (6.5 in.)
Width: Approx. 15.25 cm (6 in.)
Length: Approx. 30.48 cm (12 in.)
Instrument Space
3
