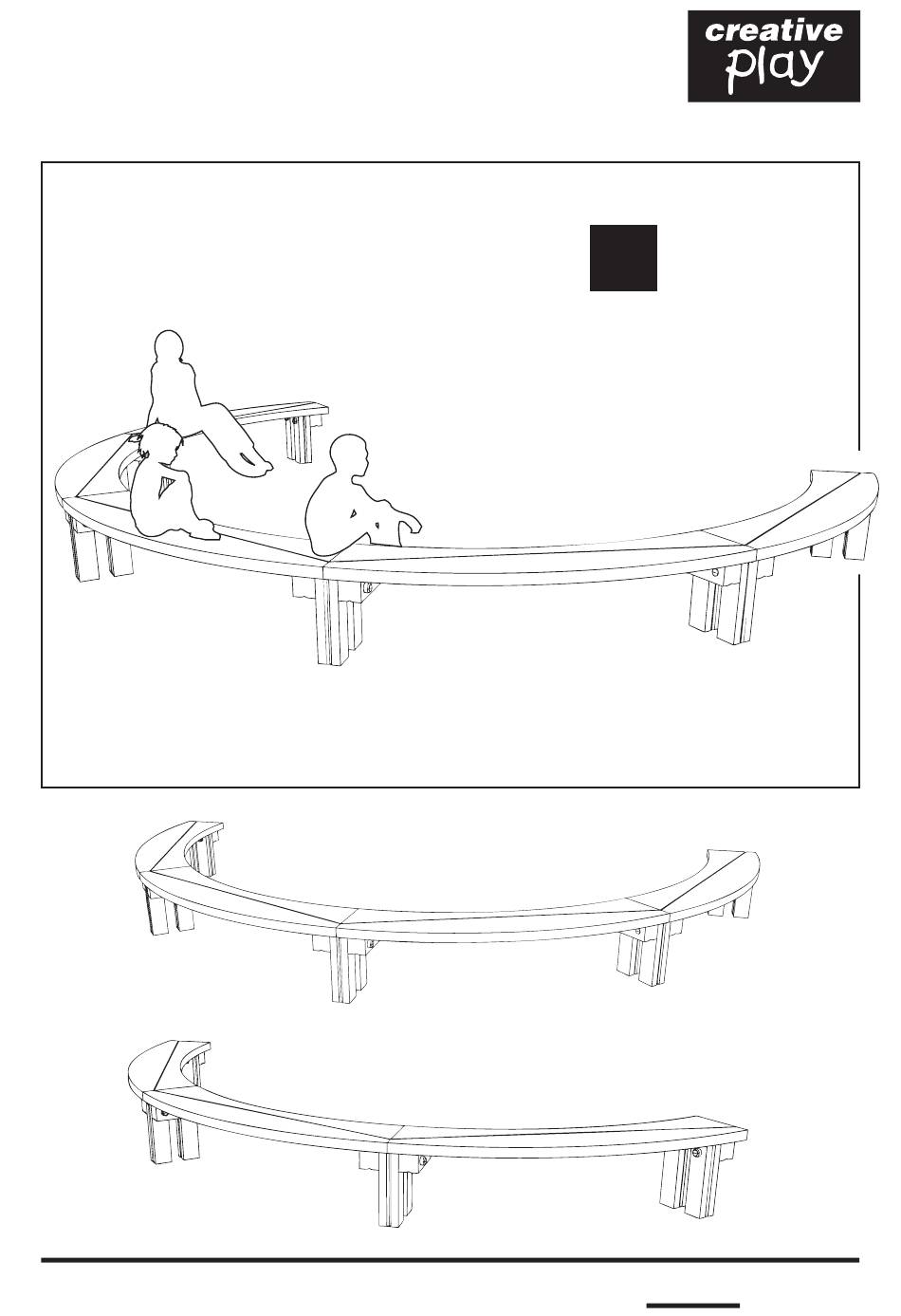

- Page 1 CURVED Modular Seating Assembly Instructions PIECE REF: CP059/CMS - 5 PIECE VERSION pg 1 of 6...
- Page 2 PARTS required QTY 5 (220mm x 47mm) QTY 5 (220mm x 47mm) QTY 2 (single support) (120mm brass screws) QTY 4 (double support) TOOLS required pg 2 of 6 REF: CP059/CMS - 5 PIECE VERSION...
- Page 3 Foundation Details SOIL TIMBER SUPPORT POST CONCRETE pg 3 of 6 REF: CP059/CMS - 5 PIECE VERSION...
- Page 4 Assembly Instructions 5 PIECE CURVED Modular Seating SINGLE SUPPORT LEG SINGLE SUPPORT LEG DOUBLE SUPPORT LEG DOUBLE SUPPORT LEG Attach bench slats (T1 & T2 timbers) to the support assemblies Using 120mm brass screws 5mm gap between T1/T2 timber slats...
- Page 5 Assembly Instructions Attach bench slats (T1 & T2 timbers) to the support assemblies Continued..POSITIONING FOR DOUBLE SUPPORT LEG 5mm gap between T1 timber slats SINGLE LEG ATTACHMENT DETAIL DOUBLE LEG ATTACHMENT DETAIL *IMPOTANT - DASHED LINE SHOWS BOLT LOCATIONS FOR BENCH SUPPORTS - ensure the screws for the SLATS are postioned either side pg 5 of 6...
- Page 6 Assembly Instructions Additional dimensions pg 6 of 6 REF: CP059/CMS - 5 PIECE VERSION...
