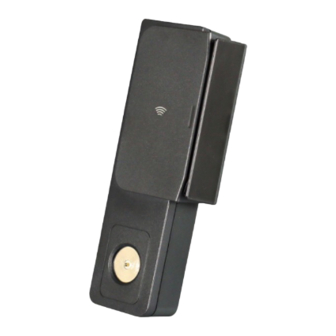

POSIFLEX BA-103 Quick Installation Manual

POSIFLEX BA-103 Quick Installation Manual

Side attachment

Advertisement

Quick Links

BA-103/104/301/303
Side Attachment
Quick Installation Guide
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
AVERTISSEMENT CE CLASSE A
Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel, cet
équipement peut provoquer des interférences radio.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the
authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise. The
manufacturer is by no means responsible for any damage or hazard caused by improper application.
LIMITES DE GARANTIE
La garantie prend fin automatiquement lorsque la machine est ouverte par une personne autre que
les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le problème qui se produit.
La garantie s'annule si l'utilisateur ne suit pas les instructions d'application de cette marchandise.
Le fabricant n'est en aucun cas responsable de tout dommage ou danger causé par une mauvaise
application.
警告
為避免電磁干擾,本產品不應安裝或使用於住宅環境。
SAFETY INSTRUCTIONS
This equipment is not suitable for use in locations where children are likely to be present.
CONSIGNES DE SÉ CURITÉ
Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des
enfants.
BA Series Ver. A0
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BA-103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX BA-103

  • Page 1 BA-103/104/301/303 Side Attachment Quick Installation Guide FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2 Overview BA-103 (iButton) iButton Sensor USB I/O Cable BA-104 (2D Scanner Engine) Trigger Button USB I/O Cable Scan Window Note1: The scanner of BA-104 is auto trigger mode by default. The manual trigger button is for advanced setup. It is highly recommended that the scanner setup is implemented by professional technicians.
  • Page 3 BA-301 (MSR+RFID (Optional)+Fingerprint) RFID Reader (Optional) USB I/O Cable 3-track Magnetic Strip Reader FingerPrint Sensor BA-303 (MSR+RFID (Optional)+iButton (Optional)) RFID Reader (Optional) USB I/O Cable 3-track Magnetic Strip Reader iButton Sensor (Optional)
  • Page 4: Hardware Installation

    Hardware Installation During Installation of the BA series, do NOT power ON your terminal and monitor. Installation of BA series onto the BT Series Terminals Start to install BA series attachment onto BT series terminals according to the following steps. Remove the side attachment cover from BT series terminals.
  • Page 5 Before installing the drivers of the BA series attachment, after installing the BA series attachment, power on your POS terminal. Installing and Starting the Posiflex USB MSR Manager Before installing the USB MSR Manager, please visit Posiflex official website ( https://download.posiflex.com/en-...
  • Page 6 8. After completion of the driver installation, restart your terminal. Installing the RFID Setup Tool If you purchase the attachment having the RFID module of which the interface is Virtual COM, please visit Posiflex official website https://download.posiflex.com/en- ) to download the global/Download/index/driver/Attachment/BA-301 virtual COM driver.
  • Page 7 2D imager based on personal preferences, two options are offered to achieve the purpose: the advanced user manual, which contains a complete set of barcode labels, and the quick setup guide with most frequently used barcode labels. Please visit Posiflex Global Website ( https://download.posiflex.com/en- ) to download the global/Download/index/manualUinstall_guide/Attachment/BA-104 related documents.
  • Page 8 Operation of the Magnetic Stripe Reader BA series attachment with magnetic stripe reader mainly serves to read and decode data from magnetic stripe. Please go through the following tips while swiping your MSR cards through the reader: Swipe your card with the side of magnetic stripe facing your terminal screen.
  • Page 9 BA-104 with H20S Scanner Engine (Default) Item Characteristics Performance Image Sensor 1280*800 CMOS Illumination White LED Aiming Red LED Symbologies QR, Micro QR, PD417, Micro PDF, Data Matrix, Aztex, Maxicode, Han Xin, etc. Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Standard 2 of 5,...
  • Page 10 BA-104 with SE4107 Scanner Engine (Option) Item Characteristics Image Resolution 1280 x 960 pixels, rolling shutter Horizontal: 44.5˚ , Vertical: 33.5˚ Field of View (FOV) Roll: 360˚ Scan Angle Pitch: ±60˚ (approx.) Skew: ±60˚ (approx.) Light Source Aiming: Green LED Illumination: Warm white LED Operating Voltage 5.0 +/- 0.5V...
  • Page 11 BA-104 with MDI-4100 Scanner Engine (Option) Power source 5VDC Scan method CMOS area sensor (black and white) Number of effective pixel 752 (H) × 480 (V) dot (wide VGA) 100 fps (frame rate) Image capture speed (Fastest seed of image capture) Horizontal: 38.0°...
  • Page 12 BA-104 with NLS-N1 Scanner Engine (Option) Performance Image Sensor 640*480 CMOS Illumination White LED Aiming Red LED (625nm) Symbologies PDF417, QR Cord, Micro QR, Data Matrix Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of ,...
  • Page 13 Outline Dimension BA-103...
  • Page 14 BA-104...
  • Page 15 BA-301 BA-303 ※ The product information and specifications are subject to change without prior notice.
