BB-2000/2000S/2000U
Bump Bar User Manual
19180900020 Ver. A0
http://www.posiflex.com

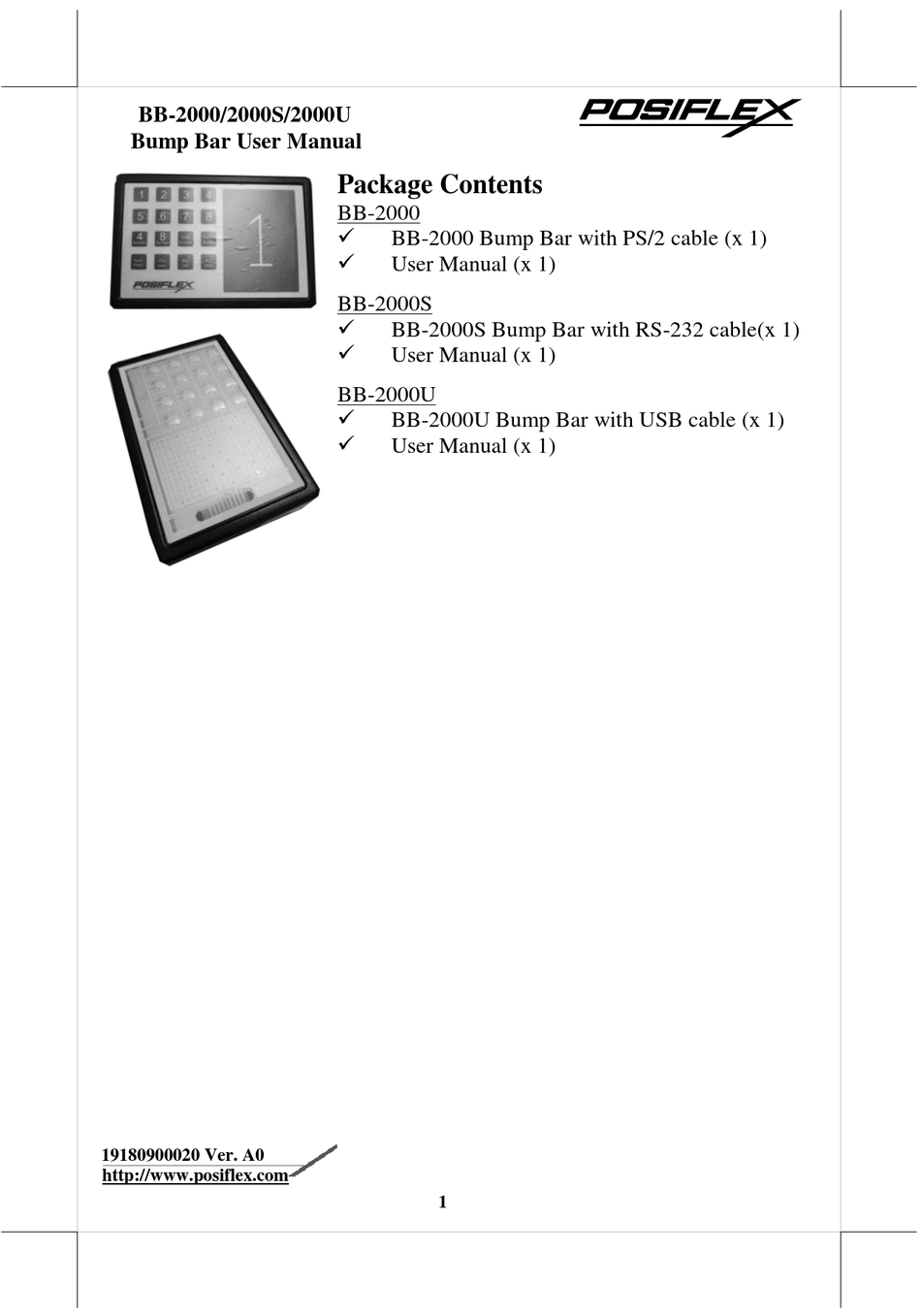

Package Contents
BB-2000
BB-2000 Bump Bar with PS/2 cable (x 1)
User Manual (x 1)
BB-2000S
BB-2000S Bump Bar with RS-232 cable(x 1)
User Manual (x 1)
BB-2000U
BB-2000U Bump Bar with USB cable (x 1)
User Manual (x 1)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX BB-2000
Summary of Contents for POSIFLEX BB-2000
- Page 1 BB-2000/2000S/2000U Bump Bar User Manual Package Contents BB-2000 BB-2000 Bump Bar with PS/2 cable (x 1) User Manual (x 1) BB-2000S BB-2000S Bump Bar with RS-232 cable(x 1) User Manual (x 1) BB-2000U BB-2000U Bump Bar with USB cable (x 1) ...
- Page 2 Views of BB-2000 Top View Bottom View Preprinted keypad overlay Wall-mounting hole Rubber Pad Top View Rack-mounting hole Buzzer Views of BB-2000S/2000U Top View Bottom View Replaceable keypad overlay Wall-mounting hole Rubber Pad Top View Rack-mounting hole Buzzer...
- Page 3 Powering on BB-2000 Series Before powering on BB-2000 series, the bump bar has to be connected to the POS terminal using a USB cable or a RS-232 cable to extract electricity. Please follow two steps below to install cables to POS terminals.
- Page 4 Installing Wall-Mount Kits Please follow the below steps to mount BB-2000/2000U/2000S to the wall. 1. Decide where you wish to mount the bump bar. 2. Drill two holes and each holes has to be at ” or 6.25 mm diameter and ”...
-
Page 5: Regular Cleaning
Installing Posiflex Bump Bar Editor Posiflex Bump Bar Editor is a tool designed to configure 17 programmable keys located on the BB-2000 series. You may visit Posiflex official website to download and install the utility: http://www.posiflex.com/en- global/Download/download Regular Cleaning For regular cleaning of the bump bar, please use only adequate amount of mild kitchen cleaning detergent for obstinate stains and wipe it off with dry clean soft clothes. - Page 6 Starting with Posiflex Bump Bar Editor for BB-2000U/2000S The following description will explain how to customize keys using Posiflex Bump Bar Edit. Before proceeding to configuration, make sure that BB-2000 series is well connected to the POS system. After downloading the utility, double-click the icon named by “Posiflex BB2000 Setup Tool”...
- Page 7 Below is the brief user interface introduction. Connection： to establish a connection with BB-2000 series via HID or VCOM interface File： to open the existing file or save the current settings Config /New Project：to new a project /Read Flash ：to restore the configuration from the flash memory /Write Flash：to write the current configuration to the flash memory...
- Page 8 Select Config > Read Flash to load the data from the bump bar. At the upper side of the window, click on the key you which to configure. In the editing area, define the key value using the physical keyboard or the on-screen keyboard on the bottom of the window.
-
Page 9: Specifications
Relative Humidity 90% non-condensing Vibration Shock 40 G Reliability Information Push Key Switch 1,000,000 strokes to 3,000,000 strokes FCC Class A, CE Applicable Conformity PS/2 cable for BB-2000 or Accessory RS-232 cable for BB-2000S or USB (type-A) cable for BB-2000U... - Page 10 <MEMO>...
- Page 11 <MEMO>...
- Page 12 <MEMO>...
