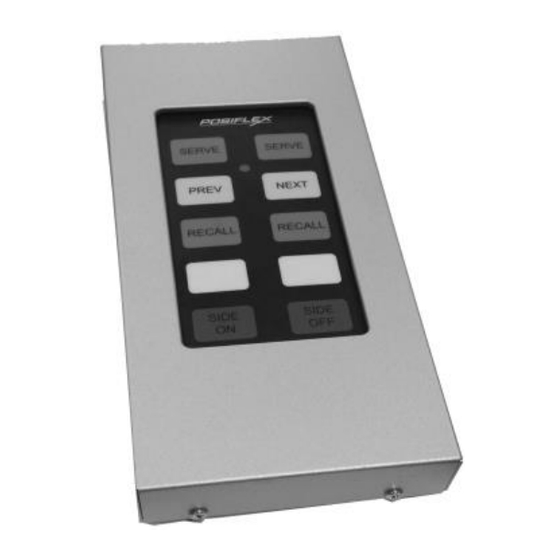

BB-3000W
Wireless Bump Bar
User Manual
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with
any other antenna or transmitter.
19100901020 Ver. A0
http://www.posiflex.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX BB-3000W
Summary of Contents for POSIFLEX BB-3000W
- Page 1 BB-3000W Wireless Bump Bar User Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 2: Package Contents
Rubber Pad Rubber Pad Battery Cover Each BB-3000W bump bar is configured with one of the 100 predetermined channels and should be paired with the USB dongle that has the matching channel number. To avoid channel conflict, do not use BB-3000W bump bars with duplicate channel number in the same setup. - Page 3 Enabling the BB-3000W Bump Bar Before enabling the BB-3000W bump bar, install two AA Alkaline batteries in the bump bar and attach the USB dongle to your host terminal by referring to the following instructive steps. 1. Loosen and remove the screw from the battery cover of the BB-3000W bump bar.
-
Page 4: Installation Considerations
USB dongle and bump bar increase, the range decreases. For best results, the bump bar should be positioned and the key pad side of the BB-3000W bump bar had better be located toward the USB dongle connected to your host... -
Page 5: Led Status Indicator
RF devices to impact the operation of the bump bar. LED Status Indicator The BB-3000W bump bar is provided with a LED status indicator for you to read the system operation status. The LED status is described below. LED Status... - Page 6 Installing the VCOM Driver and Utility If your BB-3000W works in the HID mode, you do not need to install any driver but install the utility for BB-3000W; if your BB-3000W works in the VCOM mode, please install the VCOM driver first.
- Page 7 3. Now, you enter the programing area. Start to program your BB-3000W. On the utility, there are 4 menus – File, Config, Test, and Help. File: By clicking the File menu, you can open a configured and saved file (.tpl) and save a file (.tpl) you have configured for the bump bar.
- Page 8 To get more detailed information on key programming, contact directly the Posiflex' technical service team. Setting up USB Dongle The USB dongle for BB-3000W bump bar can be set up through the utility that is installed. 1. Double click the “Posiflex BB3000W Setup Tool”...
- Page 9 Test Mode: This Test Mode option is provided for technical users to test the BB-3000W with a default test code. After finishing in doing the setting, tap the Writing Setting button.
- Page 10 Serial No. & Channel No. Before changing the channel number and serial number of your dongle, note that the numbers of the dongle must be the same as those of your BB-3000W keyboard. To change the channel number and serial...
- Page 11 Keep the BB-3000W bump bar away from another one working in the same channel at a site. To check whether a serial number in the same channel which the dongle works is given during operation of the BB- 3000W, tick off the Show Serial Number item.
- Page 12 Measuring the Received Signal Strength of the BB-3000W The tool is well designed and provided for you to easily measure the received signal strength of the BB-3000W. 1. Double click the “Posiflex BB3000W Setup Tool” icon. 2. Select BB3000W RSSI Measure (1) and then click Open (2).
-
Page 13: Regular Cleaning
The quality levels are classified into Signal Good, Signal Normal, and Signal Bad. Always keep the BB-3000W bump bar working in the quality level of Signal Normal. 7. To measure the received signal strength of the BB-3000W again, tap Retry. -
Page 14: Specifications
Specifications General 100% true spill-proof structure, state of the art top Construction notch solid design, 10 programmable keys with 2 x 5 matrix Key Switch Type Tact switch for 2 x 5 keys. Key Stroke Travel 0.35 mm +/- 0.1 mm Key Size 20 x 14 mm (2 x 5 keys) 2 x 5 keys as: SERVE / RREV / RECALL / SIDE... - Page 15 2,000,000 strokes (min.) Applicable Conformity FCC / CE Accessory USB Dongle ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the BB-3000W, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
