Product Description:

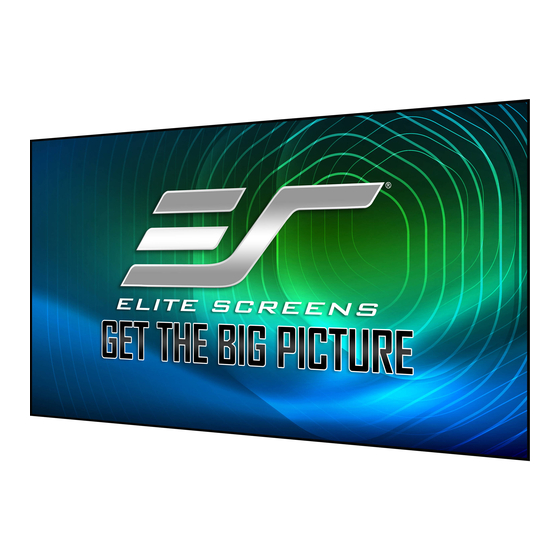

The Aeon Series is a fixed frame projection screen that uses Elite's EDGE FREE® technology. The EDGE FREE®
design resembles a giant size flat panel TV display. The Aeon includes a bezel trim to further enhance the frame
appearance and absorb projector overshoot. An optional LED kit is available for backlighting.
The screen material included is our ISF Certified
is acoustically transparent for front projection. It is precisely formulated for high-resolution projectors to offer
accurate color fidelity but also designed to allow speaker placement behind the screen while its bonded black backing
reduces light loss to enhance contrast.
In order for the CineWhite® A8K to maintain its projection qualities and optimum performance please refer to the list
below for proper maintenance and cleaning.
•
Use a soft bristle brush to spot clean for dust.
•
Dip a soft bristle toothbrush in mild soap and water to clean light stains.
•
Never rub or apply pressure when cleaning the surface.
•
Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.
•
To avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any other sharp or
abrasive objects.
Qty
Item
Part A.
Part B.
Part C.
Rev.04152024JA
Aeon CineWhite® A8K Series
CineWhite® A8K.

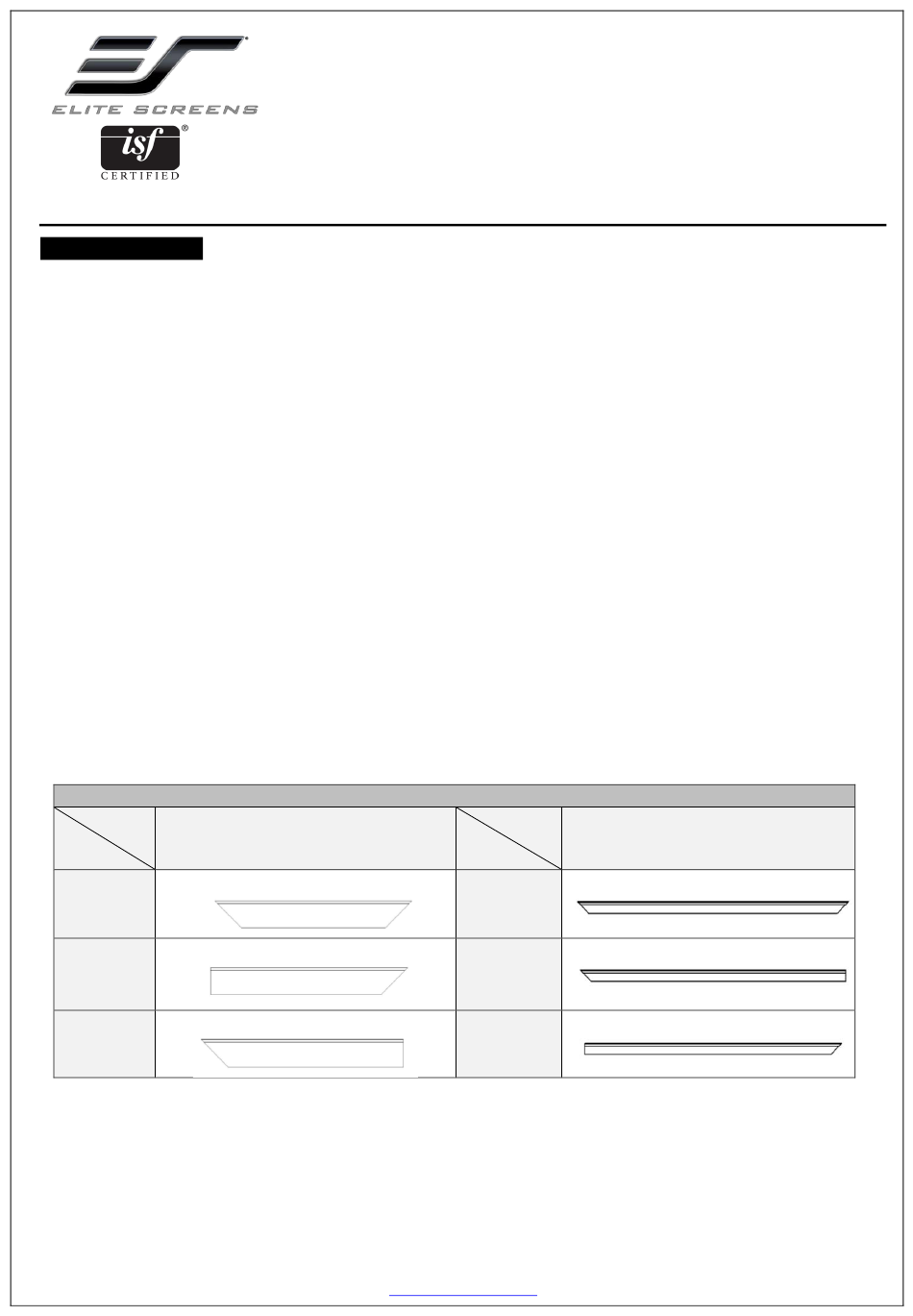

1. Frame and Edge Trim Parts List
2 pcs
Main Frame Parts
vertical frame
½ horizontal frame
½ horizontal frame
www.elitescreens.com
EDGE FREE® Acoustically Transparent
USER'S GUIDE – V1.2 (M Type)
For latest updated version visit www.elitescreens.com
which has an ultra-fine projection surface that
Qty
Item
Part D.
Part E.
Part F.
Fixed Frame Screen
2 pcs
Edge Trim Parts
U-00235
1
Advertisement
Table of Contents
Related Manuals for Elite Screens Aeon CineWhite A8K Series
Summary of Contents for Elite Screens Aeon CineWhite A8K Series
- Page 1 Aeon CineWhite® A8K Series EDGE FREE® Acoustically Transparent Fixed Frame Screen USER’S GUIDE – V1.2 (M Type) For latest updated version visit www.elitescreens.com Product Description: The Aeon Series is a fixed frame projection screen that uses Elite’s EDGE FREE® technology. The EDGE FREE® design resembles a giant size flat panel TV display.
- Page 2 2. Hardware Parts List M4*4 D5*4 M4*4 D5*4 M4*4 M4*4 Black 103’’ 123’’ 135’’ 150’’ 125” 138” 158” Item Parts List 16:9 2.35:1 Center Joints- M4 (bottom position) Center Joints-D5 (top position) Elbow Joints M4 (bottom position) Elbow Joints D5 (top position) Side cover Center Joints- M4 Side cover Elbow Joints M4 M4x7 Screws...
-
Page 3: Frame Assembly
Frame Assembly Step 1: Place the included soft padded sponge sheet on a clean area where the screen will be assembled. Step 2: Position the pieces of the frame on the sponge sheet in the arrangement shown below. Sponge Sheet Sponge Sheet Step 3: Insert center joint (a/b) connectors into one-half of the horizontal frame (B/C) and secure with the M4x7 screws (M) as shown in the illustration below. -
Page 4: Back Side
Step 7: Insert the rods (r) through the holes according to their corresponding lengths on each edge of the screen material as shown below. The short rods (top/bottom) will overlap to secure a firm grasp in the middle areas. (Black tips) (Red tips) Back Back... - Page 5 Step 10: Hook one end of the spring and secure inside the groove of the frame, use the spring hook (h) to attach the spring to the exposed part of the rod (r) in the following order. Spring must hook both overlapping short rods Begin by first attaching the center points on both vertical (left/right) sides, steps 1-2.
- Page 6 How to avoid getting ripples on the screen’s material surface Solution: Pull and smooth out the material using your hand from the center to the corners, creating a nicely taut surface as shown below Attention: Do not proceed with the Edge Trim installation until making sure there are no ripples in the material. Edge Trim Installation ATTENTION: THE TOP EDGE TRIM PIECE WITH THE LOGO SHOULD BE INSTALLED ON THE TOP.
-
Page 7: Wall Installation
Step 12: Install the angle cover (n) on each corner of the frame using the M4x4 screws (m). Note: The angle cover screws holes align with the screw holes on the elbow joint. Peel off the double-sided tape. Step 13: Install the springs (q) in each middle area to further support the bezel trim edge frame. Wall Installation Step 14: Measure the overall length and height of the frame and drill holes for the top brackets. - Page 8 Step 15: Position the fixed frame screen on the bottom bracket (fig. 1), lift and secure on the top wall bracket, then push down at the center of the top of the frame (fig. 2) to secure. For Technical Support or an Elite Screens contact in your area, visit www.elitescreens.com Rev.04152024JA...
