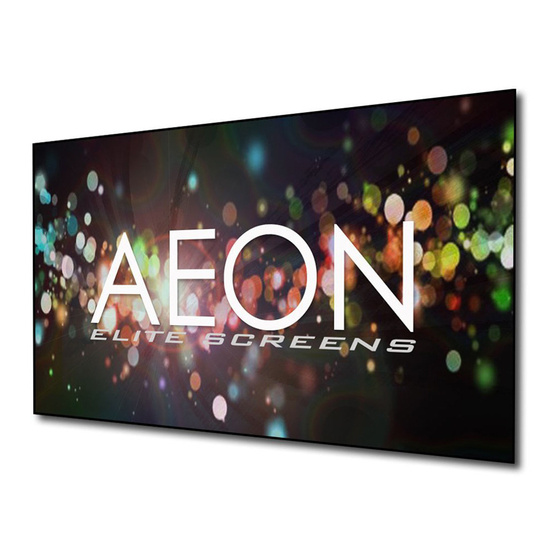

Elite Screens Aeon CLR Series User Manual

Aeon CLR® Series
Dimensions Table
A
B
C D
Bezel Width = 10mm (.39")
Unit: mm (inch) A B
2013 1993
AR90H-CLR
(79.3") (78.5")
2234 2214
AR100H-CLR
(88.0") (87.2")
2677 2657
AR120H-CLR
(105.4") (104.6")
Note: The listed measurements are for general reference only.
Frame Assembly
(2) Frame A
(10) Frame B
(14) Frame C (14) Frame C
(10) Frame B (2) Frame A
Note：Make sure all holes are in alignment and the
frame pieces are flush (no gaps), then fasten the screws.
| User's Guide
-
(spring type)
Screen Maintenance
Dust, dirt and scratches on the projection screen
surface will affect the quality and performance
Frame Width =
28.2 mm (1.1")
of the projection image. Follow the instructions
below to properly maintain the screen.
1) The screen surface has a horizontal structure.
DO NOT wipe the screen up and down or in a
circular motion. Wipe from left to right only.
2) Clean the dust on the screen surface with a
soft brush or microfiber cloth. A rough towel or
cloth may damage the screen's surface.
3) Gently wipe the screen with a moistened
microfiber cloth with mild soap diluted in
water.
Notes: The following precautions should
always be followed to avoid damaging the
material, which is not covered under
warranty.
• Don't touch the screen material to avoid
leaving fingerprints. Use gloves when
C D
handling the material.
1142 1122
• Don't scratch the material, as it will leave
(44.2")
(45.0")
permanent markings on the screen's surface.
1265 1245
• Don't point to the screen material with a
(49.8") (49.0")
fingertip or other sharp objects to prevent
1514 1494
damage to the material.
(59.6") (58.8")
• Don't use acetone, benzene, alcohol and any
other organic solvents to clean the screen
material. Using such chemicals will
permanently damage the screen.
(11) M5x6 Screws
(15) Elbow Joint a
Corner Connection
(11) M5x6 Screws
(8) Long Center
joints
Center Connection
03252019MZ

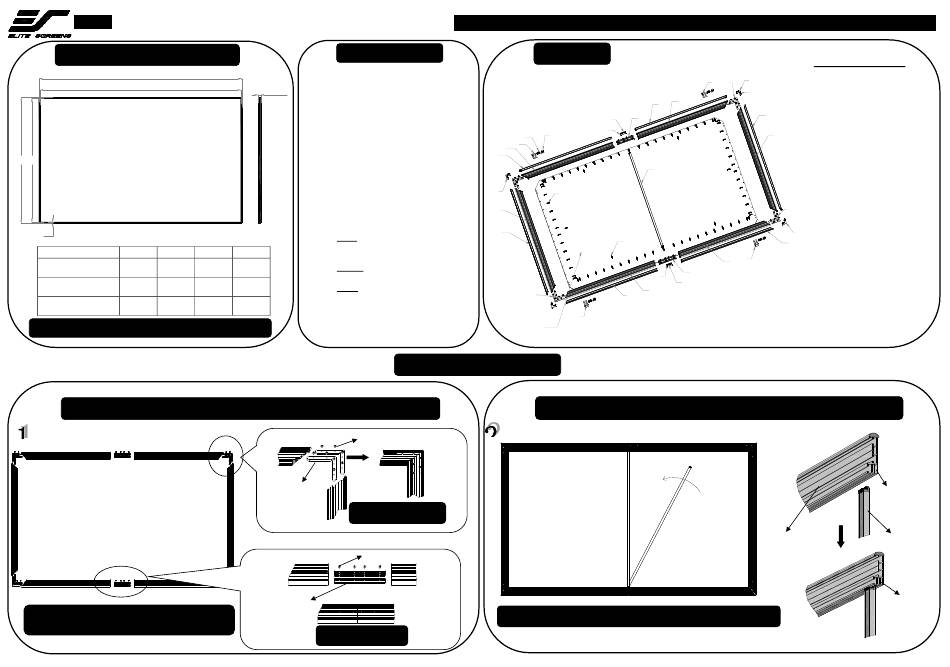

Exploded view
5
4
3
2
1
12
17
14
13
15
18
Screen Installation
Center support bar Installation
See illustration on the right side on how to properly install the Support bar.
12
3
11
7
10
9
8
7
6
16
19
3
2
8
11
6
10
9
3
Insert the support bar's
tip into the frame's
groove in the middle,
then rotate it and insert
the other end on the
other side of frame.
Hardware and Parts List
(1) Edge Trim A x2
(2) Frame A x2
(3) Wall Bracket x4
(4) Anchor x8
13
(5) Wood crews x8
14
(6) Short Center joints x2
(7) M4x4 Screws x24
(8) Long Center joints x4
(9) Edge Trim B x2
(10) Frame B x2
(11) M5x6 Screws x48
15
(12) Elbow Joints b x4
(13) Edge Trim C x2
12
(14) Frame C x2
1
(15) Elbow Joints a x8
(16) Support Bar x1
(17) Springs a x74-84
(18) StarBright CLR® material x1
(19) Springs b x8
Insert groove
Frame
(16) Support
(back side)
Bar
Support Bar
properly inserted
into groove
